Fontaine Trailer

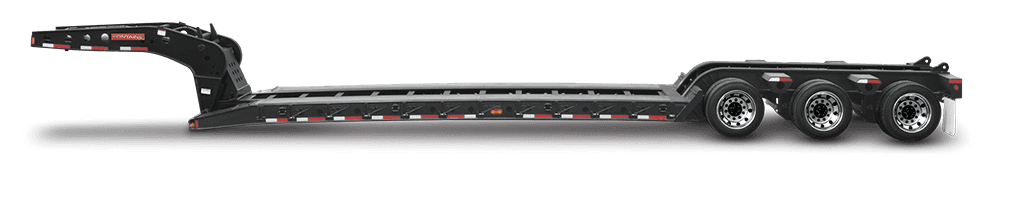

Workhorse 51
Workhorse Series
Capacity
51 Ton
Deck Height
22"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length25 ft
Full Specifications
Capacity
Standard SpecificationsCapacity51 tons in 12-foot length - GAWR and tire ratings determine legal payloadsTrailerLength50 feet 11-1/2 inchesWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:108 inches (11 feet 11 inches overall gooseneck length) - NGBDeckDeck type:FLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)AxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel coversTiresTire size:255/70R 22.5 H ply OEM Standard lbs
Capacity51 tons in 12-foot length - GAWR and tire ratings determine legal payloadsTrailerLength50 feet 11-1/2 inchesWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:108 inches (11 feet 11 inches overall gooseneck length) - NGBDeckDeck type:FLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)AxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel coversTiresTire size:255/70R 22.5 H ply OEM Standard lbs
Axle Capacity25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. lbs
25,000 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components.
General
TrailerLength50 feet 11-1/2 inchesWidth:8 feet 6 inches
Length50 feet 11-1/2 inches
Width8 feet 6 inches
DesignHydraulic removable non-ground bearing design
Swing radius108 inches (11 feet 11 inches overall gooseneck length) - NGB
DeckDeck typeFLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)
Deck typeFLD
Flooring1.5 inch nominal wood (side rails only)
BogieDeck to bogie connectionFixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel covers
Deck to bogie connectionFixed
Rear bogie height40 inches to top flange 37 inches to top of bolsters
Covered Rear BogieWeld-on load bearing wheel covers
Gooseneck
GooseneckDesignHydraulic removable non-ground bearing designSwing radius:108 inches (11 feet 11 inches overall gooseneck length) - NGB
Dimensions
Deck length25 feet clear deck length, 24 feet optional ft
Deck width8 feet 6 inches ft
Loaded deck height/clearance22 inches with 6 inches ground clearance
Axles
AxlesStandard trailer axles3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"
Standard trailer axles3
Axle spread54.5" in
Tires & Wheels
TiresTire size255/70R 22.5 H ply OEM Standard
Tire size255/70R 22.5 H ply OEM Standard
