Fontaine Trailer

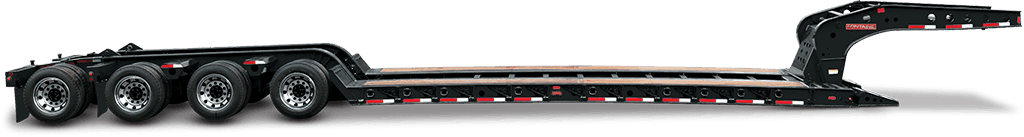

Workhorse 55LCC
Workhorse Series
Capacity
55 Ton
Deck Height
18"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length26 ft
Full Specifications
Capacity
Standard SpecificationsCapacity55 tons in 13-foot length with 4 axles close coupled; - GAWR and tire ratings determine legal payloadsTrailerLength57 feet 5 inchesWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:Hydraulic removable non-ground bearing designDeckDeck type:FLDDeck length:26 feet clear deck length, 25 and 27 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:18 inches with 6 inches ground clearanceFlooring:2 inch nominal wood - side rails onlyAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 7/8 inches to top flange - 36 5/8 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel coversTiresTire size:275/70R 22.5 OEM standard lbs
Capacity55 tons in 13-foot length with 4 axles close coupled; - GAWR and tire ratings determine legal payloadsTrailerLength57 feet 5 inchesWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:Hydraulic removable non-ground bearing designDeckDeck type:FLDDeck length:26 feet clear deck length, 25 and 27 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:18 inches with 6 inches ground clearanceFlooring:2 inch nominal wood - side rails onlyAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 7/8 inches to top flange - 36 5/8 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel coversTiresTire size:275/70R 22.5 OEM standard lbs
Axle Capacity25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. lbs
25,000 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components.
General
TrailerLength57 feet 5 inchesWidth:8 feet 6 inches
Length57 feet 5 inches
Width8 feet 6 inches
DesignHydraulic removable non-ground bearing design
Swing radiusHydraulic removable non-ground bearing design
DeckDeck typeFLDDeck length:26 feet clear deck length, 25 and 27 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:18 inches with 6 inches ground clearanceFlooring:2 inch nominal wood - side rails only
Deck typeFLD
Flooring2 inch nominal wood - side rails only
BogieDeck to bogie connectionFixedRear bogie height:40 7/8 inches to top flange - 36 5/8 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel covers
Deck to bogie connectionFixed
Rear bogie height40 7/8 inches to top flange - 36 5/8 inches to top of bolsters
Covered Rear BogieWeld-on load bearing wheel covers
Gooseneck
GooseneckDesignHydraulic removable non-ground bearing designSwing radius:Hydraulic removable non-ground bearing design
Dimensions
Deck length26 feet clear deck length, 25 and 27 feet optional ft
Deck width8 feet 6 inches ft
Loaded deck height/clearance18 inches with 6 inches ground clearance
Axles
AxlesStandard trailer axles3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"
Standard trailer axles3
Axle spread54.5" in
Tires & Wheels
TiresTire size275/70R 22.5 OEM standard
Tire size275/70R 22.5 OEM standard
