Fontaine Trailer

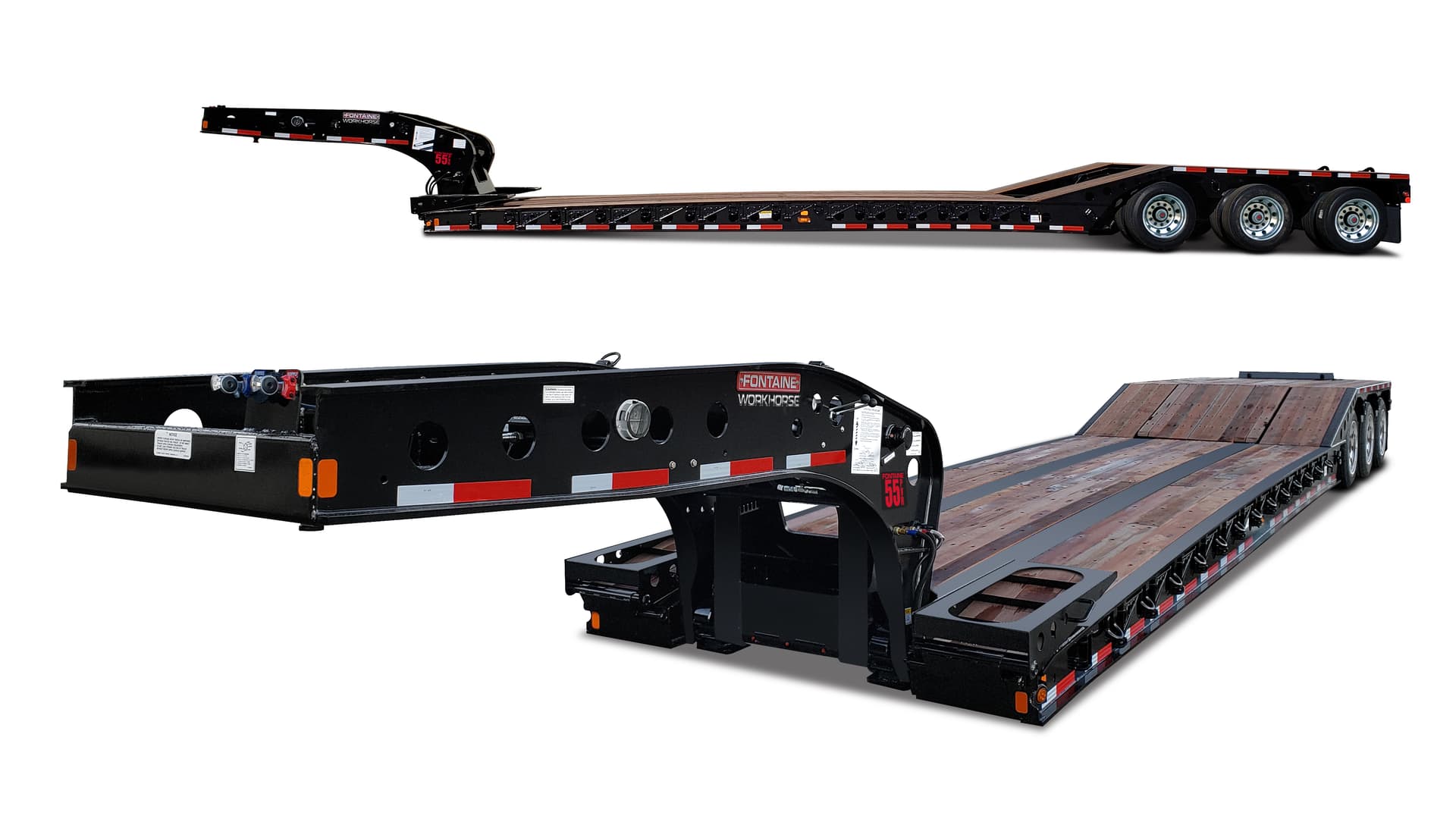

Workhorse 55PVR
Workhorse Series
Capacity
55 Ton
Deck Height
22"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length24 ft
Full Specifications
Capacity
Standard SpecificationsCapacity55 tons in 16-foot length with 3 or 4 axles close coupled payloads50 tons in 12-foot length with 3 or 4 axles close coupledGAWR and tire ratings determine legal payloadsTrailerLength53 feetWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:8 feet 6 inchesDeckDeck type:Flat Level Deck design (tapered beam design)Deck length:24 feet clear deck lengthDeck width:8 feet 6 inches overallLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal apitong wood (full width)AxlesStandard trailer axles:3Axle Capacity:22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other componentsAxle spread:54.5 inches (between axles)BogieDeck to bogie connection:Fixed with ramps outboard of mainbeamsRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)TiresTire size:255/70R 22.5 OEM standardRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear) tons
Capacity55 tons in 16-foot length with 3 or 4 axles close coupled payloads50 tons in 12-foot length with 3 or 4 axles close coupledGAWR and tire ratings determine legal payloadsTrailerLength53 feetWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:8 feet 6 inchesDeckDeck type:Flat Level Deck design (tapered beam design)Deck length:24 feet clear deck lengthDeck width:8 feet 6 inches overallLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal apitong wood (full width)AxlesStandard trailer axles:3Axle Capacity:22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other componentsAxle spread:54.5 inches (between axles)BogieDeck to bogie connection:Fixed with ramps outboard of mainbeamsRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)TiresTire size:255/70R 22.5 OEM standardRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear) tons
Axle Capacity22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components lbs
22,500 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components
General
TrailerLength53 feetWidth:8 feet 6 inches
Length53 feet
Width8 feet 6 inches
DesignHydraulic removable non-ground bearing design
Swing radius8 feet 6 inches
DeckDeck typeFlat Level Deck design (tapered beam design)Deck length:24 feet clear deck lengthDeck width:8 feet 6 inches overallLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal apitong wood (full width)
Deck typeFlat Level Deck design (tapered beam design)
Flooring1.5 inch nominal apitong wood (full width)
BogieDeck to bogie connectionFixed with ramps outboard of mainbeamsRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
Deck to bogie connectionFixed with ramps outboard of mainbeams
Rear bogie height43 inches to top flange
Covered Rear BogieLoad Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
Gooseneck
GooseneckDesignHydraulic removable non-ground bearing designSwing radius:8 feet 6 inches
Dimensions
Deck length24 feet clear deck length ft
Deck width8 feet 6 inches overall ft
Loaded deck height/clearance22 inches with 6 inches ground clearance
Axles
AxlesStandard trailer axles3Axle Capacity:22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other componentsAxle spread:54.5 inches (between axles)
Standard trailer axles3
Axle spread54.5 inches (between axles)
You can reposition or replace a damaged kingpin on your lowbed trailer with ease. Dual kingpin slots let you reposition the kingpin from 102" swing radius to 81" swing radius. Use 81" kingpin position to comply with kingpin-to-rear-axle restrictions.NOTEAvailable on Workhorse 55LCC. Not available on Workhorse 50 and 51.
Tires & Wheels
TiresTire size255/70R 22.5 OEM standardRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
Tire size255/70R 22.5 OEM standard
