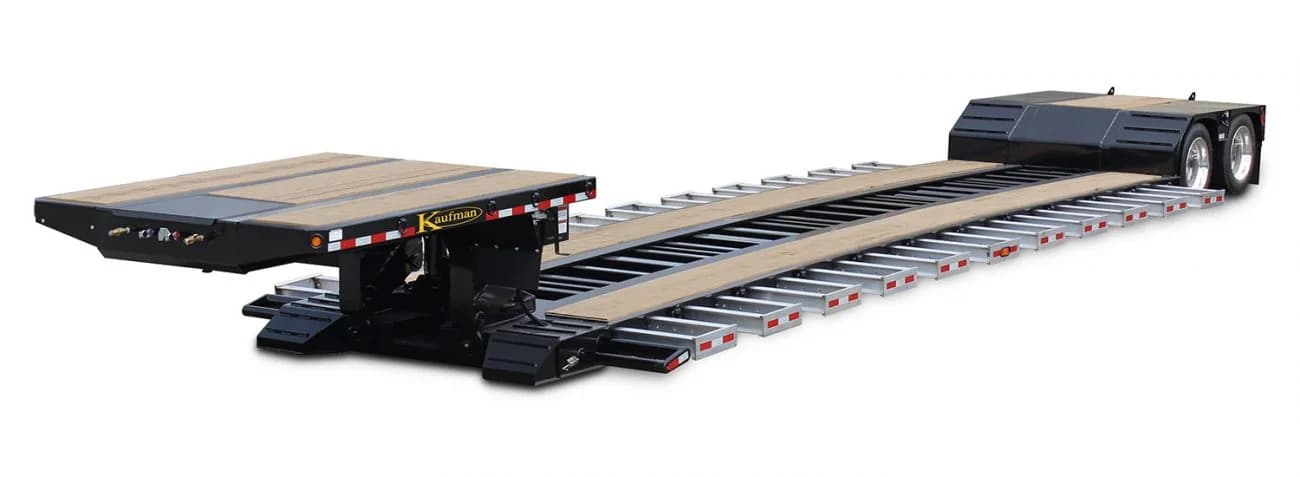

35 Ton Detachable Gooseneck Ag Trailer - 33'6" Well and Deck on Neck trailer
Kaufman Trailers

35 Ton Detachable Gooseneck Ag Trailer - 33'6" Well and Deck on Neck

Ag Series

Capacity

35 Ton

Deck Height

18"

Axles

2-Axle

Gooseneck

Non Ground Bearing

Deck Length33.5 ft
GVWR93,000 lbs

About This Trailer

The 35 Ton Detachable Gooseneck Ag Trailer with a 33'6" well and deck-on-neck is built for heavy-duty hauling with strength and versatility in mind. Rated at 93,000 lbs. GVWR, it features four high-tensile steel main beams, a low 18" loaded deck height, and a 102" wide deck expandable to 156" with outriggers—ideal for oversized equipment. Equipped with tandem 25,000 lb. axles, air ride suspension, 16.5" air brakes with ABS, and 22.5" tires, this trailer delivers a smooth, controlled ride. The hydraulic removable gooseneck includes adjustable load blocks and wet line setup, while features like oak flooring, LED lighting, toolbox, and heavy-duty tie-downs make it ready for real work.

Full Specifications

Capacity
G.V.W.R.93,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)
Dimensions
Deck Length33'6" well standard. Additional Optional Lengths
Deck Height18" (fully loaded)
Deck Width102" (Expandable to 156" with slide-out aluminum outriggers)
Lower Deck33'6" well length
Electrical
ElectricalSealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
FrameFour cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Side RailFull Depth Fabricated
Floors2" oak flooring
ToolboxLockable Lid Toolbox
RampsFixed Front Ramps (See Additional Options)
Tie DownsForged D-rings
General
FendersLoad bearing high tensile steel fenders over the tires.
Running Gear
BrakesAll wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Wheels10 hole steel disc / hub piloted (Aluminum Wheel Options)
Tires255/70 R22.5 LRH
Axles2 - 25,000 lb. axles (5" round, 5/8" wall thickness) with Flip Prep included.
SuspensionAir ride suspension
Gooseneck
TongueHydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 85" - 107" available swing clearances. Comes standard set-up for wet line.
CouplerSAE 2" Kingpin (16" Kingpin Setting)
Finish
FinishSherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
