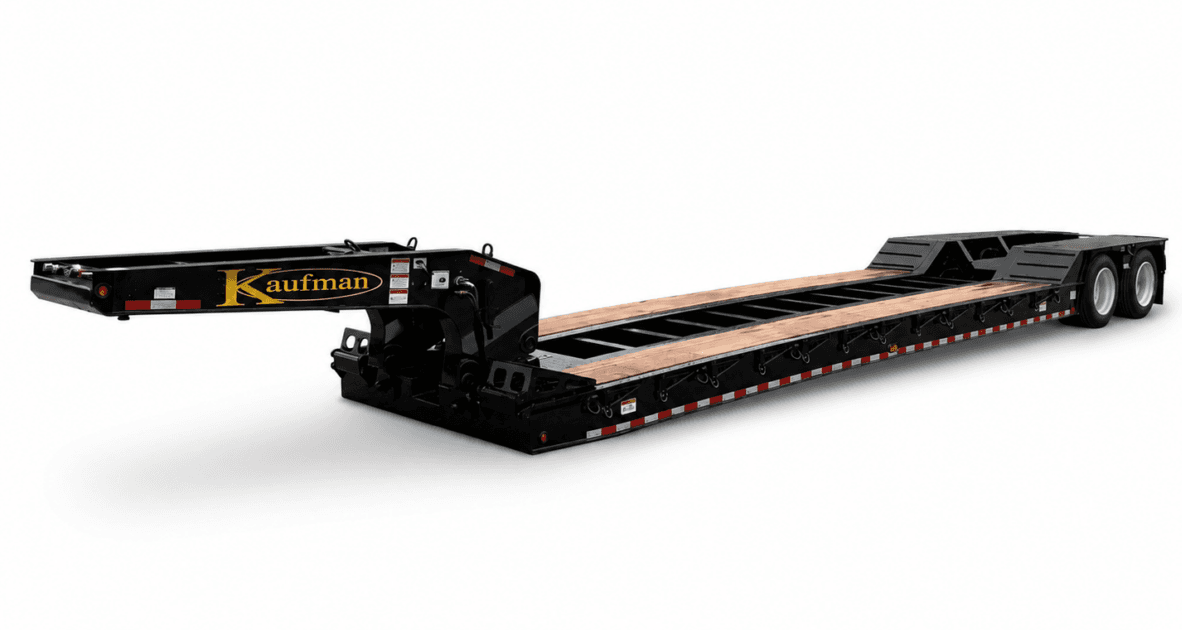

35 Ton Detachable Gooseneck Air Ride Trailer - Standard trailer
Kaufman Trailers

35 Ton Detachable Gooseneck Air Ride Trailer - Standard

Construction Series

Capacity

35 Ton

Deck Height

24"

Axles

2-Axle

Gooseneck

Non Ground Bearing

Deck Length24 ft
GVWR86,000 lbs

About This Trailer

The 35 Ton Detachable Gooseneck Air Ride Trailer is designed for serious heavy-equipment hauling, combining high capacity with durability and operator convenience. Rated at 86,000 lbs. GVWR with a 70,000 lb. capacity in a 12-ft. span, this trailer features four cambered high-tensile steel main beams, a 24 ft. well with 2″ oak flooring, and air ride suspension with 25,000 lb. axles for a smooth, stable haul. The hydraulic removable non-ground bearing gooseneck allows for easy loading while providing adjustable load blocks and swing clearances for versatile equipment transport. Premium components such as all-wheel air brakes with ABS, forged D-ring tie downs, sealed US-made wiring harness with lifetime LED lighting, and Sherwin Williams urethane finish over epoxy primer make this 35-ton detachable built for long-term reliability in demanding applications.

Full Specifications

Construction
Tie DownsForged D-rings
FrameFour cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Side RailFull Height Fabricated
Floors2" oak flooring
Toolbox20" x 42" Lockable Lid Toolbox
RampsFixed Front Ramps (See Additional Options)
Dimensions
Deck Length24' well standard. Additional Optional Lengths
Deck Height24 in.
Deck Width102" (Expandable to 126" with outriggers)
Lower Deck24' well length
Available Lengths24, 26, 28, 30 ft.
Running Gear
BrakesAll wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Wheels10 hole steel disc / hub piloted (Aluminum Wheel Options)
Tires255/70 R22.5 LRH
Axles2-25,000 lb. axles (5" round, 5/8" wall thickness)
SuspensionAir ride suspension
Gooseneck
TongueHydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
CouplerSAE 2" Kingpin (16" Kingpin Setting)
Capacity
G.V.W.R.86,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)
Electrical
ElectricalSealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Finish
FinishSherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
