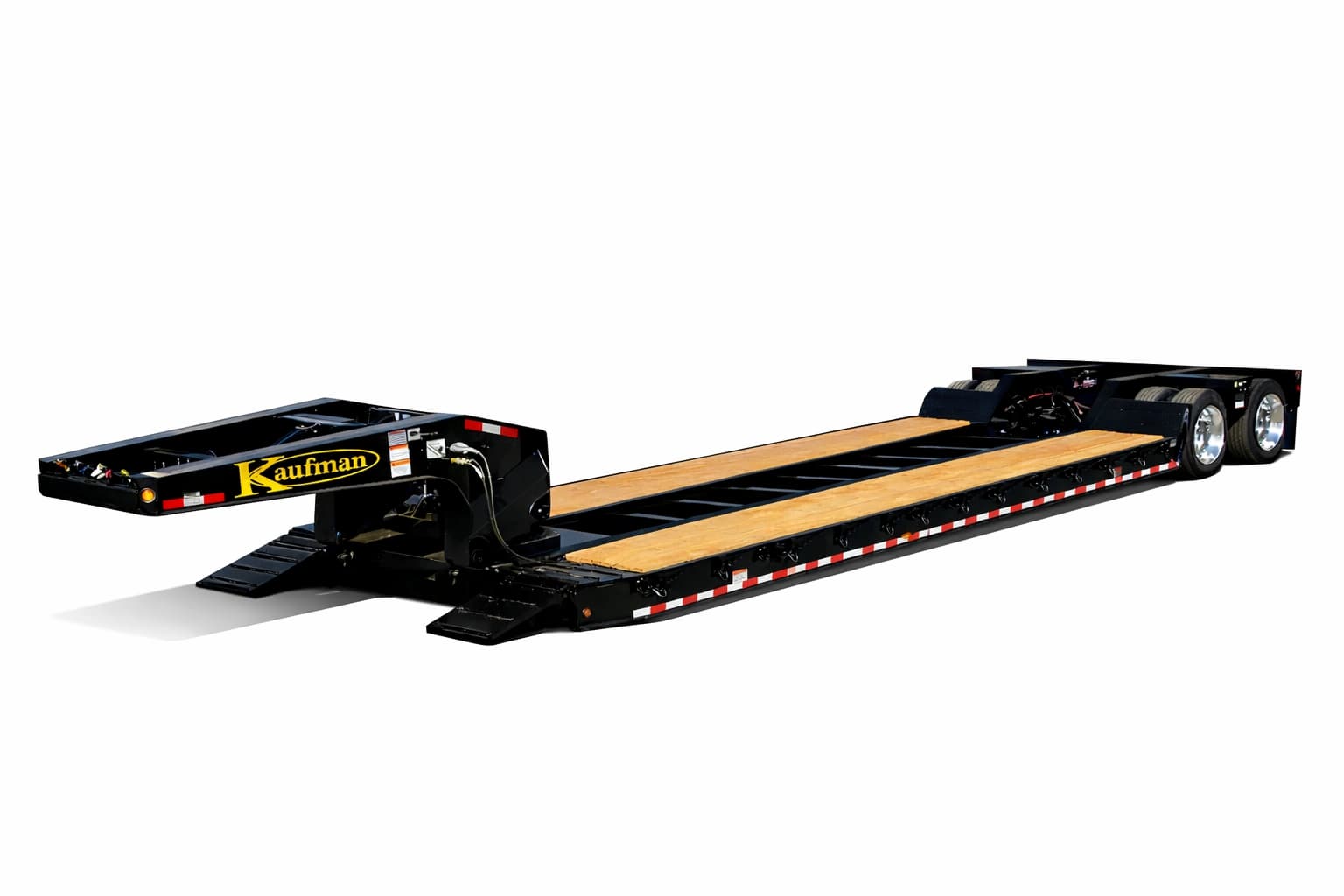

35 Ton Detachable Gooseneck Trailer (18") - Deluxe trailer
Kaufman Trailers

35 Ton Detachable Gooseneck Trailer (18") - Deluxe

Construction Series

Capacity

35 Ton

Deck Height

18"

Axles

2-Axle

Gooseneck

Non Ground Bearing

Deck Length26 ft
GVWR89,000 lbs

About This Trailer

The 35 Ton Detachable Gooseneck Trailer (18") – Deluxe is designed for contractors and equipment haulers who need strength, low deck height, and dependable performance. With an 89,000 lb. G.V.W.R. and a 70,000 lb. capacity rating in a 12-foot span or greater, this trailer offers serious hauling capability in a versatile 26' standard well (available in lengths from 26' to 30'). The low 18" loaded deck height improves loading angles and stability, while four cambered main beams built from high-strength 100 KSI (T1) and 80 KSI steel provide long-term structural durability. A hydraulic, removable, non-ground bearing gooseneck with adjustable load blocks and swing clearances from 89" to 107" allows for efficient hook-up and loading, and the air ride suspension enhances ride quality and load protection. Equipped with dual 25,000 lb. axles, 16.5" x 7" air brakes with automatic slack adjusters and 4S/2M ABS, forged D-ring tie downs, sealed wiring harness with lifetime LED lights, and a Sherwin Williams premium urethane finish over epoxy primer, this Deluxe model delivers durability, performance, and professional-grade reliability.

Full Specifications

Capacity
G.V.W.R.89,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)
Dimensions
Deck Length26' well standard. Additional Optional Lengths
Deck Height18" (fully loaded)
Deck Width102" (Expandable to 126" with outriggers)
Lower Deck26' well length
Available Lengths26, 28, 30 ft.
Electrical
ElectricalSealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
FrameFour cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Side RailFull Height Fabricated
Floors2" oak flooring
Toolbox20" x 42" Lockable Lid Toolbox
RampsFixed Front Ramps (See Additional Options)
Tie DownsForged D-rings
Running Gear
BrakesAll wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Wheels10 hole steel disc / hub piloted (Aluminum Wheel Options)
Tires255/70 R22.5 LRH
Axles2-25,000 lb. axles (5" round, 5/8" wall thickness)
SuspensionAir ride suspension
Gooseneck
TongueHydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
CouplerSAE 2" Kingpin (16" Kingpin Setting)
Finish
FinishSherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
