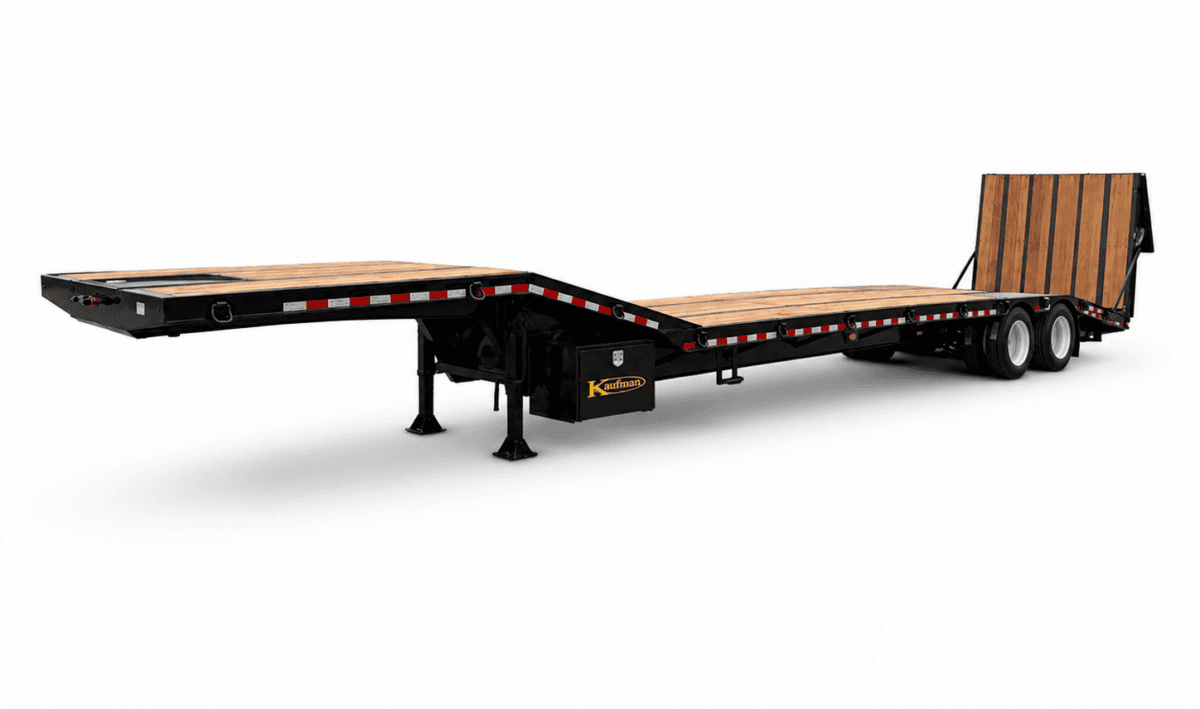

35 Ton Fixed Neck Paver Special Spring Ride Trailer - Standard trailer
Kaufman Trailers

35 Ton Fixed Neck Paver Special Spring Ride Trailer - Standard

Fixed Neck Series

Capacity

35 Ton

Deck Height

38"

Axles

2-Axle

Gooseneck

Fixed

Deck Length27 ft
GVWR86,000 lbs

About This Trailer

The 35 Ton Fixed Neck Paver Special Spring Ride Trailer – Standard is purpose-built for hauling paving equipment with the strength, stability, and durability demanded by commercial contractors. Rated at 85,000 lb. G.V.W.R. with a 70,000 lb. capacity in a 12’ span or greater, this trailer features massive 22” cambered main beams fabricated from 100 KSI (T1) and 80 KSI high tensile steel for exceptional long-term performance. The 27’ flat deck includes durable 2” oak flooring, a low 38” loaded deck height, and a full 102” deck width that can expand to 126” with optional outriggers for oversized loads. Designed specifically with paving contractors in mind, this model features a smooth radius dovetail with rumber decking, full-length load-bearing fenders, an 11’ Bi-Fold full-width hydraulic ramp, and a wood-lined neck slope to simplify loading and transporting paving equipment. Dual 25,000 lb. axles with heavy-duty spring ride suspension and all-wheel air brakes with ABS provide dependable towing stability and stopping power on demanding jobsites. A premium epoxy primer and Sherwin-Williams urethane topcoat help protect the trailer from harsh working conditions, while sealed modular wiring and lifetime LED lighting ensure reliable performance for years to come. Built for real-world commercial hauling, the Kaufman 35 Ton Paver Special delivers the durability and functionality serious operators expect.

Full Specifications

Capacity
G.V.W.R.86,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)
Dimensions
Deck Length106" Top Deck, 78" Neck Slope, 27' Main Deck, & 5' Radius Dovetail
Deck Height38" Deck Height (Fully Loaded)
Deck Width102" (Expandable to 126" with optional outriggers)
DovetailPremium smooth radius dovetail with rumber decking.
Upper DeckFlat Load Bearing Deck over the Gooseneck with 17 degree wood lined slope
Lower Deck27' Main Deck
Available Lengths27, 29, 31 ft.
Electrical
ElectricalSealco US made sealed wiring harness & lifetime LED lights
Construction
Frame22" tall, cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel. Heavy Duty 8" Outside Rails with deck supporting crossmembers at 12" O.C.
Side RailHeavy Duty 8" Side Rail reinforced at 48" O.C. with In-Frame and Triangular Gusset back to main Beam
Floors2" Oak Flooring (Center Decking Included) Apitong available upon request
Ramps11’ Bi-Fold Full Width Hydraulic Ramp
ToolboxSide Mounted Lockable Toolbox
Tie DownsForged D-rings
General
FendersFull Length Heavy Duty Load Bearing Fenders
JackHeavy Duty 2 speed landing gear with Sand Shoes
Running Gear
BrakesAll wheel 16.5" x 7" air brakes, automatic slack adjusters, and 2S/1M ABS
Wheels10 hole steel disc / hub piloted (Aluminum Wheels Optional)
Tires255/70 R22.5 LRH
Axles2-25,000 lb. axles (5" round, 5/8" wall thickness)
SuspensionHeavy Duty 3 leaf Spring Ride Suspension, Air Ride Suspension available upon request
Gooseneck
TongueHi-Yield Fully formed 3/8" thick fifth wheel plate sitting in reinforced fabricated main frame gooseneck beams
CouplerSAE 2" Kingpin (18.25" Kingpin Setting)
Finish
FinishSherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
