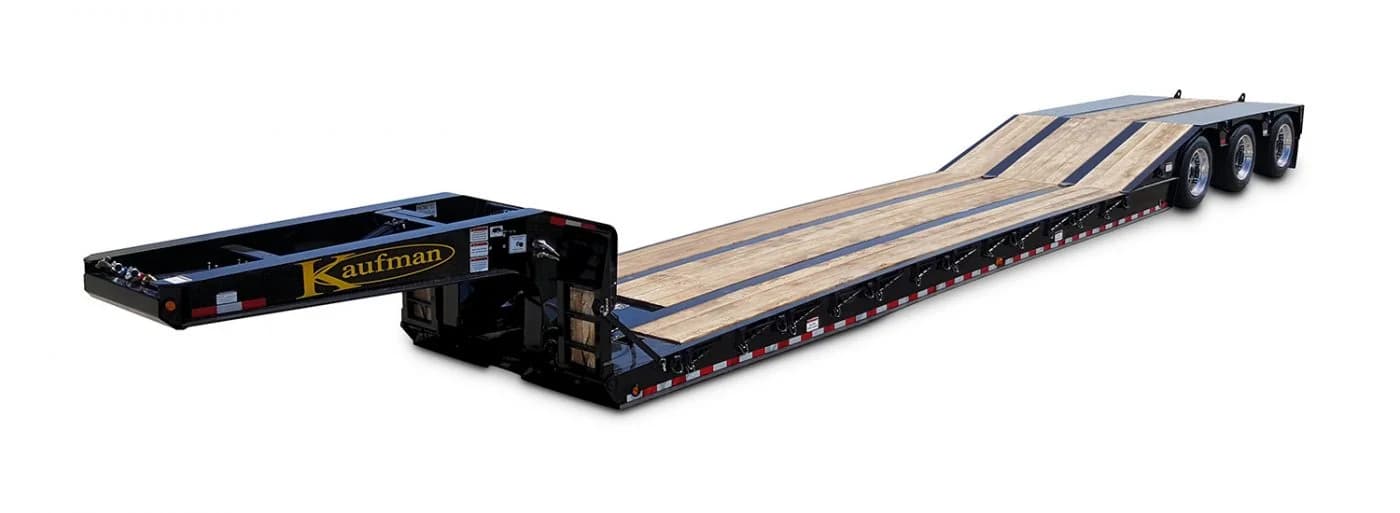

55 Ton Air Ride Paver Special trailer
Kaufman Trailers

55 Ton Air Ride Paver Special

Paver Special Series

Capacity

55 Ton

Deck Height

22"

Axles

3-Axle

Gooseneck

Non Ground Bearing

Deck Length24 ft
GVWR133,000 lbs

About This Trailer

Base Price: $ 73,620 + FET Optional Outside Alum. Wheel.......$ 1,660 Total as pictured... $ 75,280 + FET The 55 Ton Air Ride Paver Special is built for the heaviest paving and construction equipment, delivering maximum capacity without sacrificing ease of loading. With a 24’ well and a low 22” loaded deck height, this trailer is ideal for hauling pavers, large rollers, and other low-clearance machinery safely and efficiently. The air ride suspension provides a smoother haul while helping reduce stress on both the trailer and your load. Built with four cambered main beams using 100 KSI (T1) and 80 KSI high tensile steel, the frame is engineered for extreme strength in demanding applications. A full-width 102” deck expandable to 126” with outriggers, combined with full-length load-bearing fenders and 45” wood-filled sliding ramps, gives you the flexibility to handle a wide range of equipment. The tri-axle setup with an air lift third axle increases capacity and maneuverability, while all-wheel air brakes with ABS deliver confident stopping power. Finished with a hydraulic removable gooseneck, sealed wiring with lifetime LED lighting, and premium coatings for long-term durability, the 55 Ton Air Ride Paver Special is purpose-built for contractors who need serious hauling performance every day.

Full Specifications

Capacity
G.V.W.R.133,000 lbs. (Capacity 110,000 lbs. rated in 12 ft. span or greater)
Dimensions
Deck Length24' well standard
Deck Height22" (fully loaded)
Deck Width102" (Expandable to 126" with outriggers)
Lower Deck24' well length
Available Lengths24 ft.
Electrical
ElectricalSealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
FrameFour cambered main beams with low profile tapered front, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Side RailFull Height Fabricated
Floors2" oak flooring (Center Decking Included)
Toolbox20" x 42" Lockable Lid Toolbox
Ramps45” Wood Filled Sliding
Tie DownsForged D-rings
General
FendersFull Length Heavy Duty Load Bearing
Running Gear
BrakesAll wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Wheels10 hole steel disc / hub piloted (Aluminum Wheel Options)
Tires275/70 R22.5 LRH
Axles3 - 25,000 lb. axles (5" round, 5/8" wall thickness) with air lift 3rd axle (54" spacing)
SuspensionAir ride suspension
Gooseneck
TongueHydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
CouplerSAE 2" Kingpin (16" Kingpin Setting)
Finish
FinishSherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
