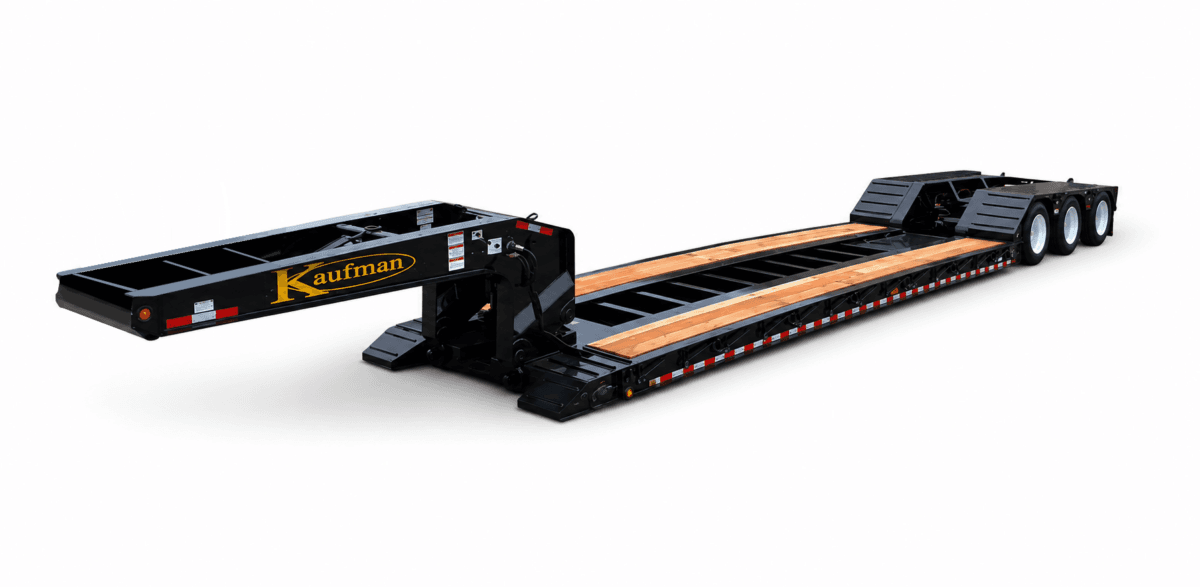

55 Ton Detachable Gooseneck Air Ride Trailer (18") - Deluxe trailer
Kaufman Trailers

55 Ton Detachable Gooseneck Air Ride Trailer (18") - Deluxe

Construction Series

Capacity

55 Ton

Deck Height

18"

Axles

3-Axle

Gooseneck

Non Ground Bearing

Deck Length26 ft
GVWR131,000 lbs

About This Trailer

Base Price: $ 74,900 + FET Optional Load Supporting Rear Fenders........$ 960 Total as pictured... $ 75,860 + FET Built for serious heavy hauling, the 55 Ton Detachable Gooseneck Air Ride Trailer combines a low 18" deck height with a 110,000 lb. capacity in a 12' span. Its 26' lower well, triple 25,000 lb. air-ride axles, hydraulic non-ground-bearing gooseneck, and expandable deck provide the strength and versatility needed to move large equipment with confidence. Deluxe features include fixed front ramps, a bucket well, forged D-rings, oak flooring, a lockable toolbox, air brakes with ABS, and lifetime LED lighting.

Full Specifications

Capacity
G.V.W.R.131,000 lbs. (Capacity 110,000 lbs. rated in 12 ft. span or greater)
Dimensions
Deck Height18" (fully loaded)
Deck Width102" (Expandable to 126" with outriggers)
Lower Deck26' well standard. (Bucket Well Included)
Available Lengths26 ft.
Electrical
ElectricalSealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
FrameFour cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Floors2" oak flooring
RampsFixed Front Ramps (See Additional Options)
Toolbox20" x 42" Lockable Lid Toolbox
Tie DownsForged D-rings
Gooseneck
TongueHydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
CouplerSAE 2" Kingpin (16" Kingpin Setting)
Running Gear
BrakesAll wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Tires275/70 R22.5 LRH
Wheels10 hole steel disc / hub piloted (Aluminum Wheel Options)
Axles3 - 25,000 lb. axles (5" round, 5/8" wall thickness) with Flip Prep included
SuspensionAir ride suspension
Finish
FinishSherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
