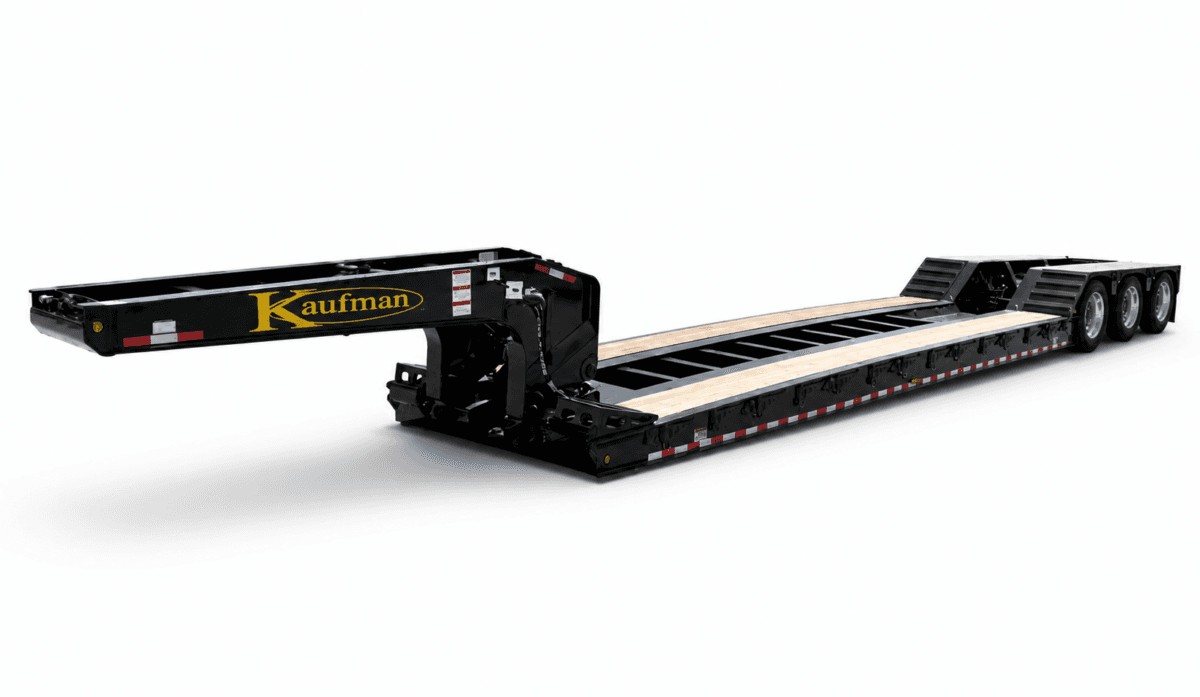

55 Ton Detachable Gooseneck Air Ride Trailer - Deluxe

Construction Series

Capacity

55 Ton

Deck Height

22"

Axles

3-Axle

Gooseneck

Non Ground Bearing

Deck Length26 ft
GVWR133,000 lbs

About This Trailer

Base Price: $ 69,900 + FET Optional Outside Alum. Wheel.........................$ 1,660 Optional Load Supporting Rear Fenders........$ 960 Optional Front Flip Ramps..............................$ 395 Total as pictured... $ 72,915 + FET The 55 Ton Detachable Gooseneck Trailer with air ride suspension is built for contractors and heavy haulers who demand maximum capacity, durability, and ride quality. With a 133,000 lb. G.V.W.R. and a 110,000 lb. rating in a 12’ span or greater, this trailer is engineered to handle serious equipment with confidence. The 26’ lower well includes a bucket well and features rugged 2” oak flooring, supported by four cambered main beams fabricated from 100 KSI (T1) and 80 KSI high tensile steel for exceptional strength. Triple 25,000 lb. axles with air ride suspension deliver a smoother haul, while all-wheel 16.5” x 7” air brakes with automatic slack adjusters and 4S/2M ABS provide reliable stopping power. The hydraulic, removable non-ground bearing gooseneck offers 89”–107” swing clearance and comes standard set up for wet line operation. A 102” deck width expandable to 126” with outriggers, forged D-rings, fixed front ramps, a 20” x 42” lockable toolbox, and lifetime LED lighting round out this deluxe package. Finished in Sherwin Williams premium acrylic urethane over a two-part epoxy primer. If you need a dependable 55 Ton Detachable Gooseneck Trailer, this deluxe model trailer is built to perform and built to last.

Full Specifications

Capacity
G.V.W.R.133,000 lbs. (Capacity 110,000 lbs. rated in 12 ft. span or greater)
Dimensions
Deck Height22" (fully loaded)
Deck Width102" (Expandable to 126" with outriggers)
Lower Deck26' well standard. (Bucket Well Included)
Available Lengths26 ft.
Electrical
ElectricalSealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
FrameFour cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Floors2" oak flooring
RampsFixed Front Ramps (See Additional Options)
Toolbox20" x 42" Lockable Lid Toolbox
Tie DownsForged D-rings
Gooseneck
TongueHydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
CouplerSAE 2" Kingpin (16" Kingpin Setting)
Running Gear
BrakesAll wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Tires275/70 R22.5 LRH
Wheels10 hole steel disc / hub piloted (Aluminum Wheel Options)
Axles3 - 25,000 lb. axles (5" round, 5/8" wall thickness) with Flip Prep included
SuspensionAir ride suspension
Finish
FinishSherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
