Landoll Trailers

317 Traveling Axle Trailer

Name: Landoll Trailers 317 Traveling Axle Trailer
Brand: Landoll Trailers

Features

Capacity

35 Ton

Deck Height

38"

Axles

2-Axle

Gooseneck

Fixed

Find Used 317 Traveling Axle Trailer For Sale View on Landoll Trailers Website

About This Trailer

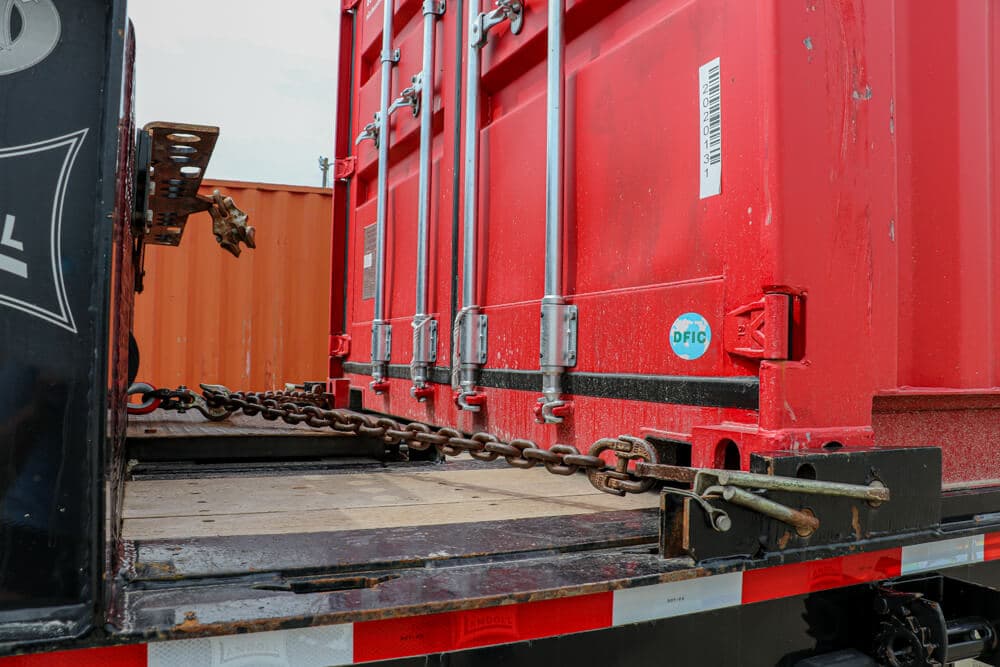

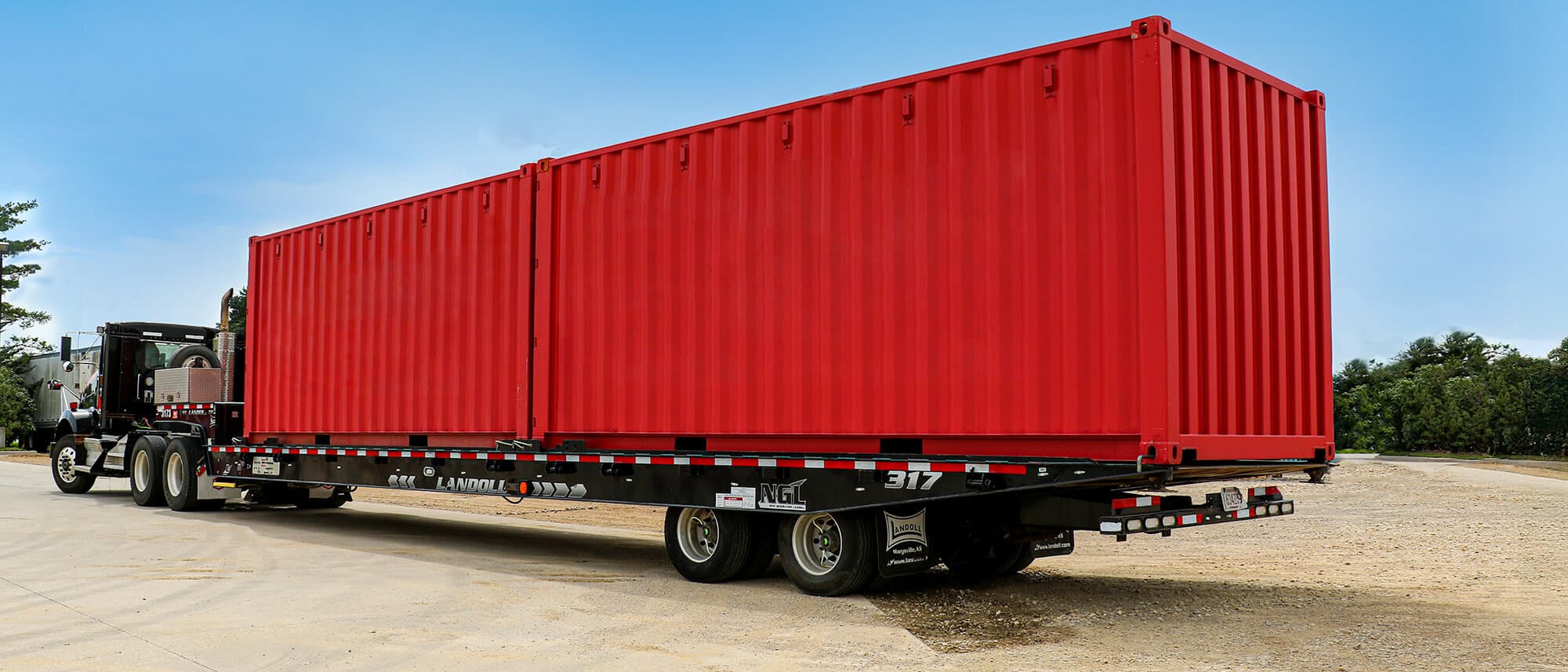

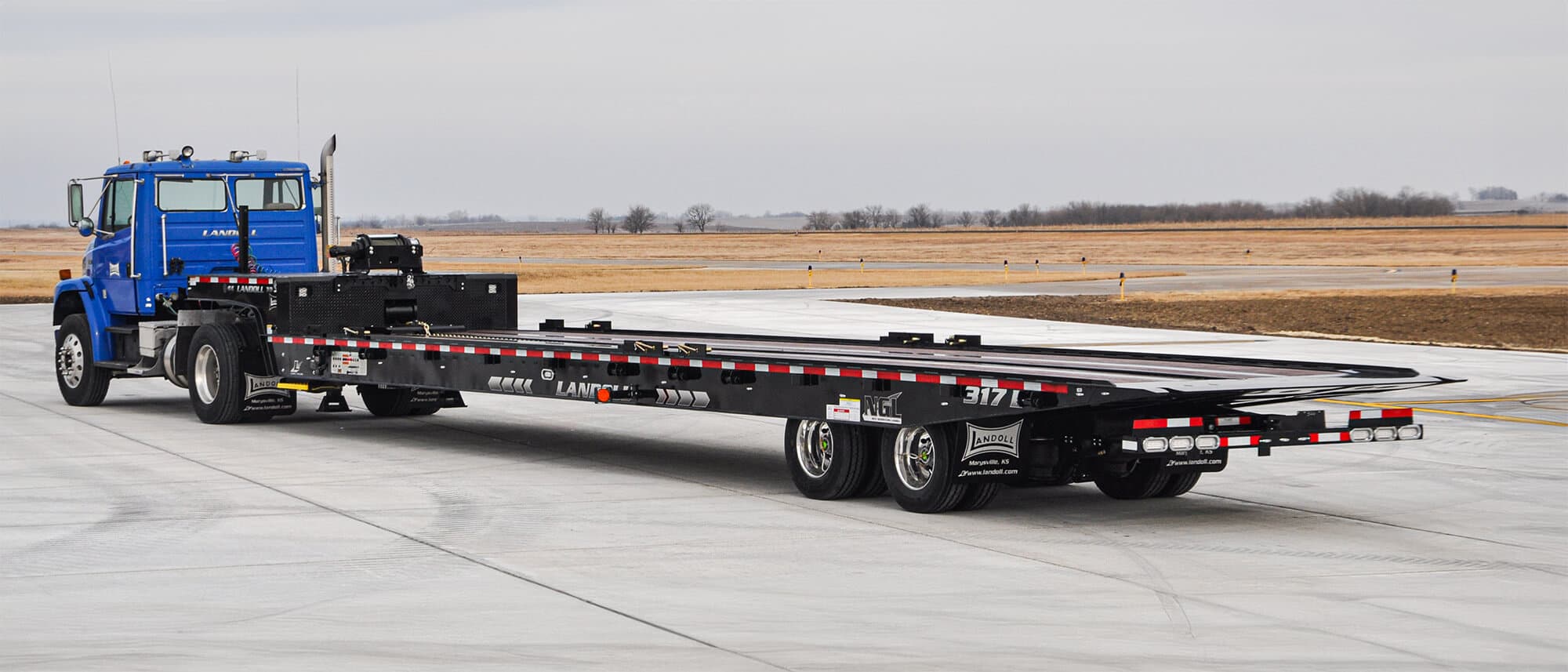

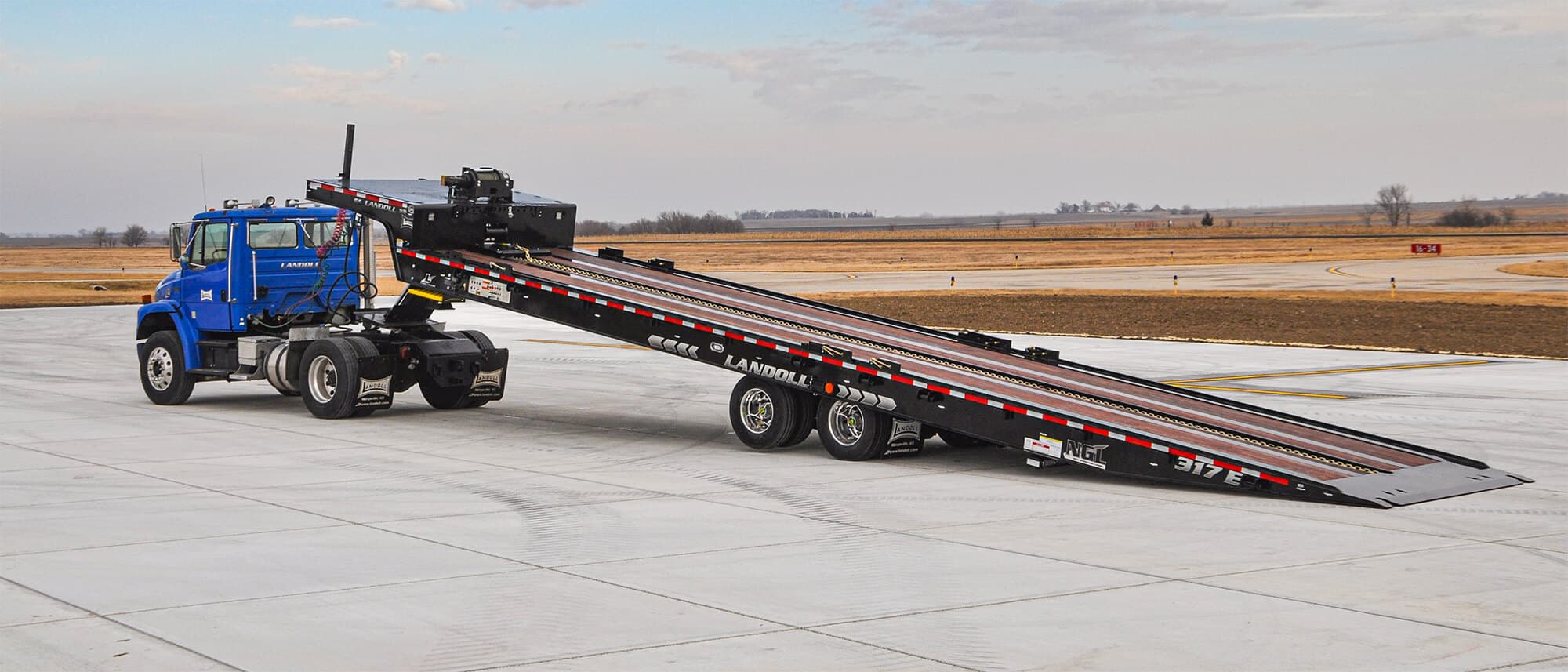

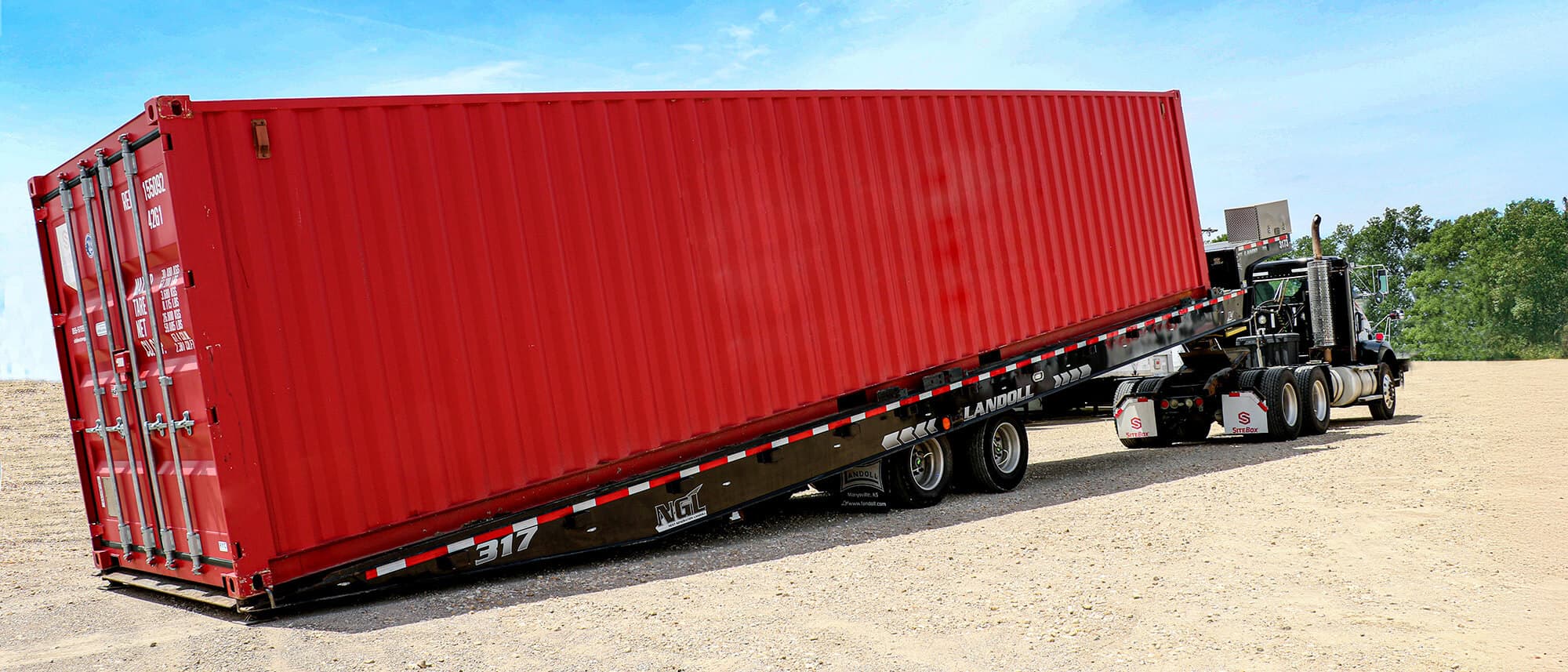

The 317 35-ton capacity trailer features a one-piece, 4-beam frame designed with a low-load angle and a 29” full width, rigid flat approach plate. Landoll’s full-tilt trailer gives the operator full control of the trailer and heavy loads. The 317 features a rigid frame that lifts up from the fifth wheel. The 317 is nicknamed the OLD WORKHORSE because of its decades of dependable performance and durability. In-house designed and fabricated steel beams, incorporated with high tensile strength Jr. I-Beam cross members provide unsurpassed strength while offering substantial weight savings. The undercarriage roller bearings lower the deck into patented reinforced pockets, lowering the deck height and preventing frame twist. Whether the load is a heavy fork lift or a loaded container, the 317 can do it all. The 317 comes equipped with standard centralized grease, Grote annealed marker lights, Grote “Xtreme” wire harnesses and durable powder coat paint. Popular options include Container Chain Drive, Dual Winches and Dock Level Hydraulics to level the trailer to dock height. Photos may show optional features. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. 1/8″ Steel Tread Plate Over Wood Deck Straps Beside Outer Beam (1-1/4″ x 9″) 255/70R 22.5 Double Coin 255/70R 22.5 Continental 255/70R 22.5 Michelin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. 800-428-5655 moc.llodnal@selasreliart

Full Specifications

Capacity

Capacity*70,000 lbs.

Dimensions

Deck Rating50,000 lbs. in 10′

Width102″

Loaded Deck Height38″

Loaded Ground Clearance20″

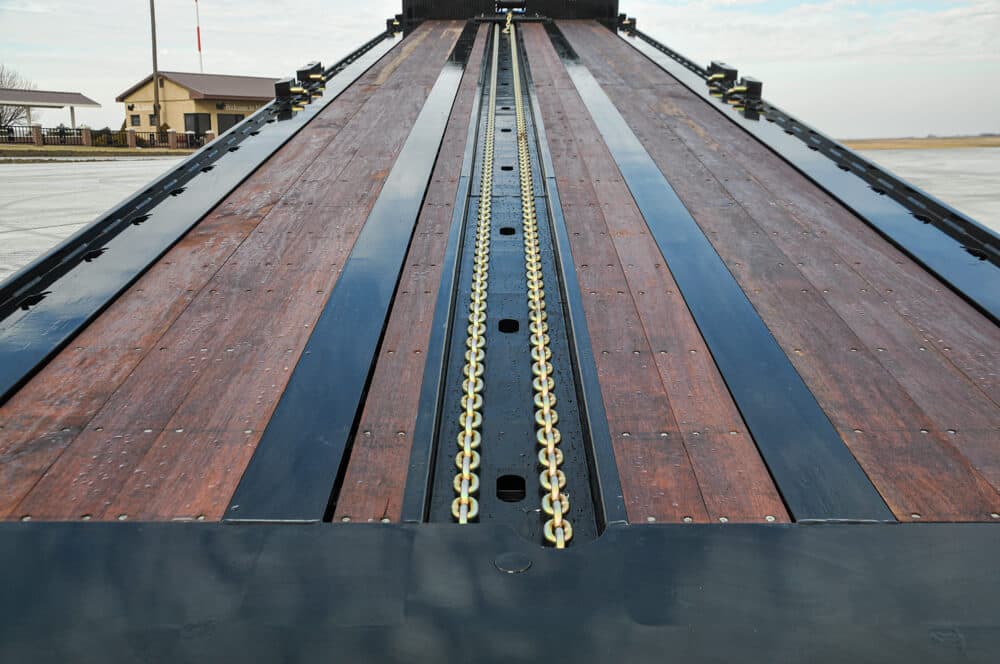

Decking1-3/8″ Apitong Hardwood

Swing Clearance70-1/2″

Deck Type1/8″ Steel Tread Plate 1/8″ Steel Tread Plate Over Wood

Deck StrapsDeck Straps Beside Main Beam (1-1/4″ x 9″) Deck Straps Beside Outer Beam (1-1/4″ x 9″)

Upper Deck Slope Wear ProtectionSlope Roller

Frame

Main FrameFabricated 80,000 PSI Yield, Four Beam Design

General

Slope Drop45°

CrossmembersAlternating with 4″ and 3″ Junior I-Beam on 8″ Centers

Pin Setting24″

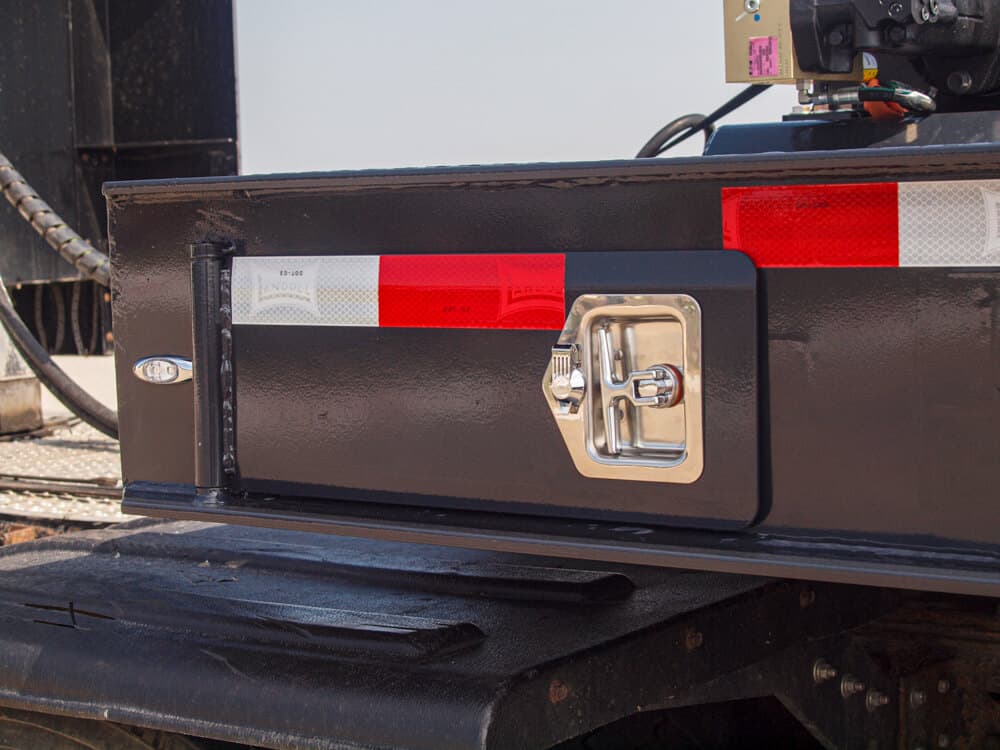

Tool BoxTwin Side Mounted in Upper Deck with Lockable Doors (7”H x 34”W x 29” D)

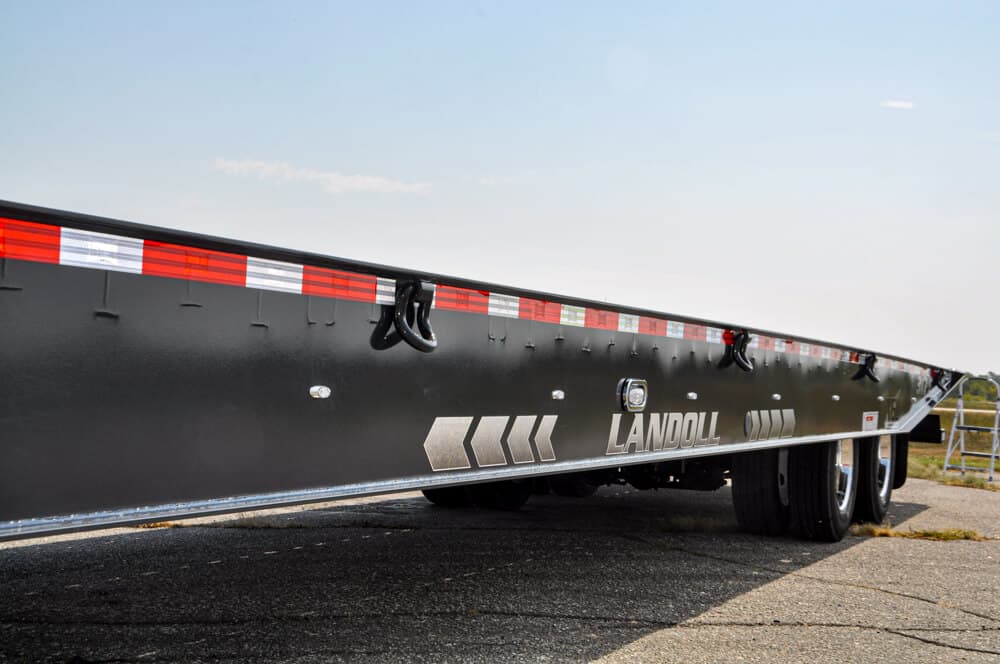

Tie DownsDouble Keyhole Chain Slots and Stake Pockets

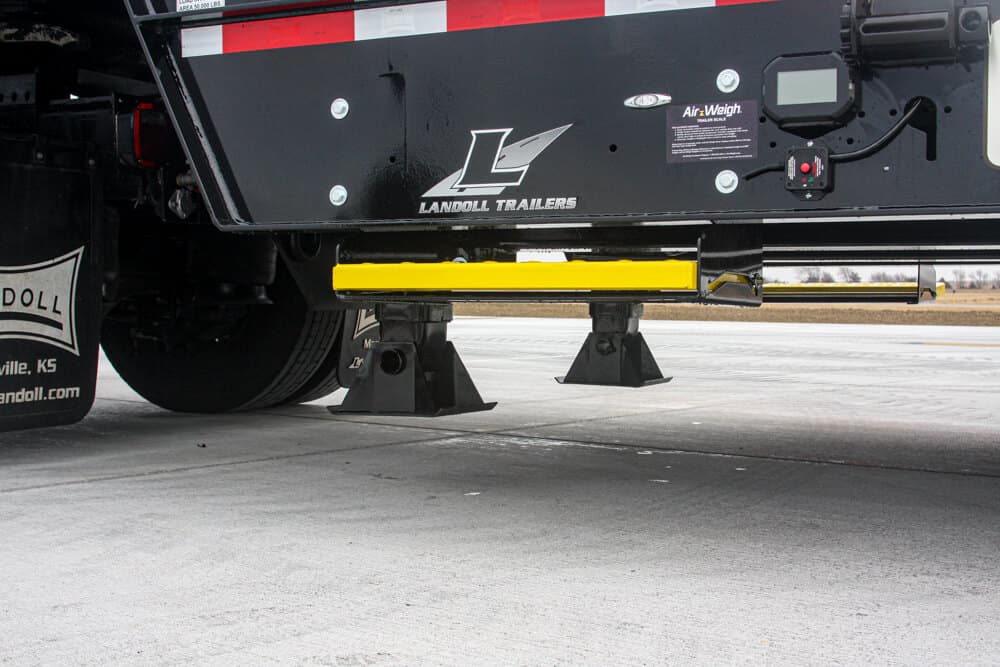

Parking StandsTwo Speed Landing Gear

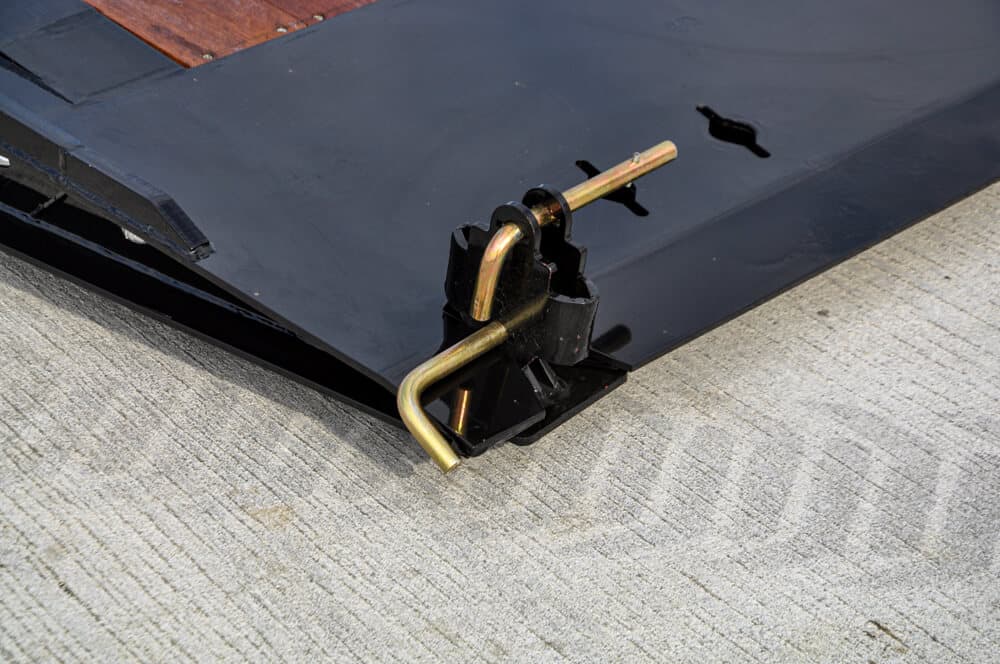

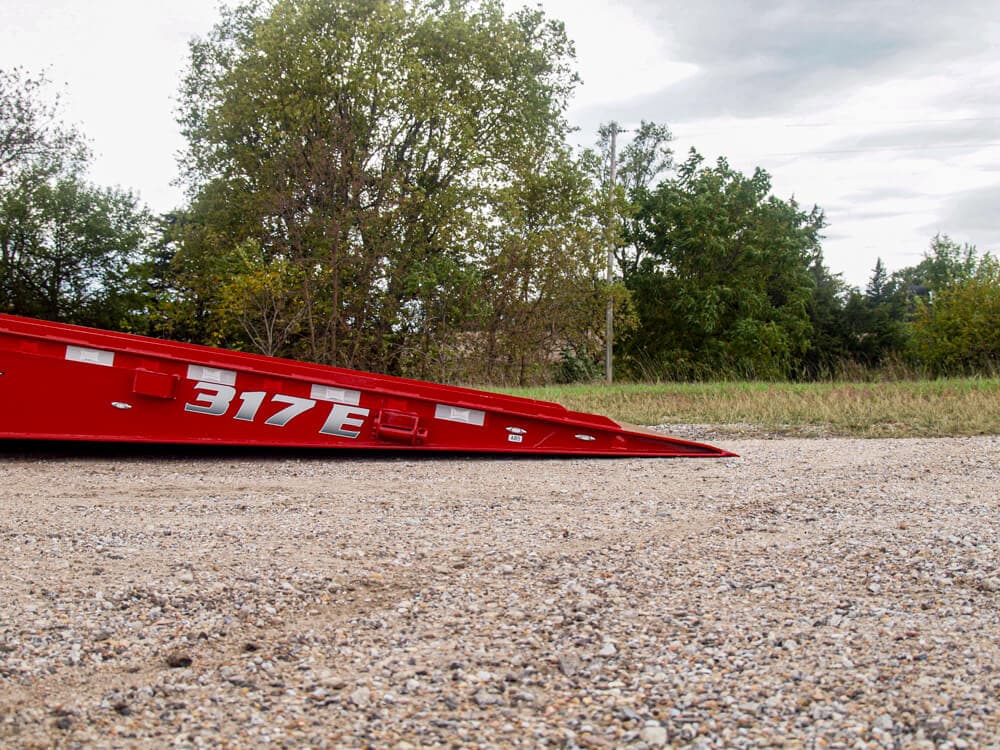

Approach PlateFlat Approach with (6) Keyhole Tie Downs

Undercarriage(1) 4″ x 126″ and (2) 4″ x 42″ Cylinders; Powder Coated Black

GreaseCentralized Grease System

Rims17.5×6.75 Tubeless Rims

Oil Seal HubsInternal Mated Assembly

Powder Coat ColorTGIC Polyester Powder Coat, White / Black / Yellow / Balboa Blue / Red / Viper Red / Green / Sapphire Blue / Metallic Gray

DecalsHi-Visibility Reflective Package

Toe Board3/8″ x 2-1/2″ on Lower Deck

Bulkhead16″ / 24″ 2 Position 48″ x 102″ Mesh

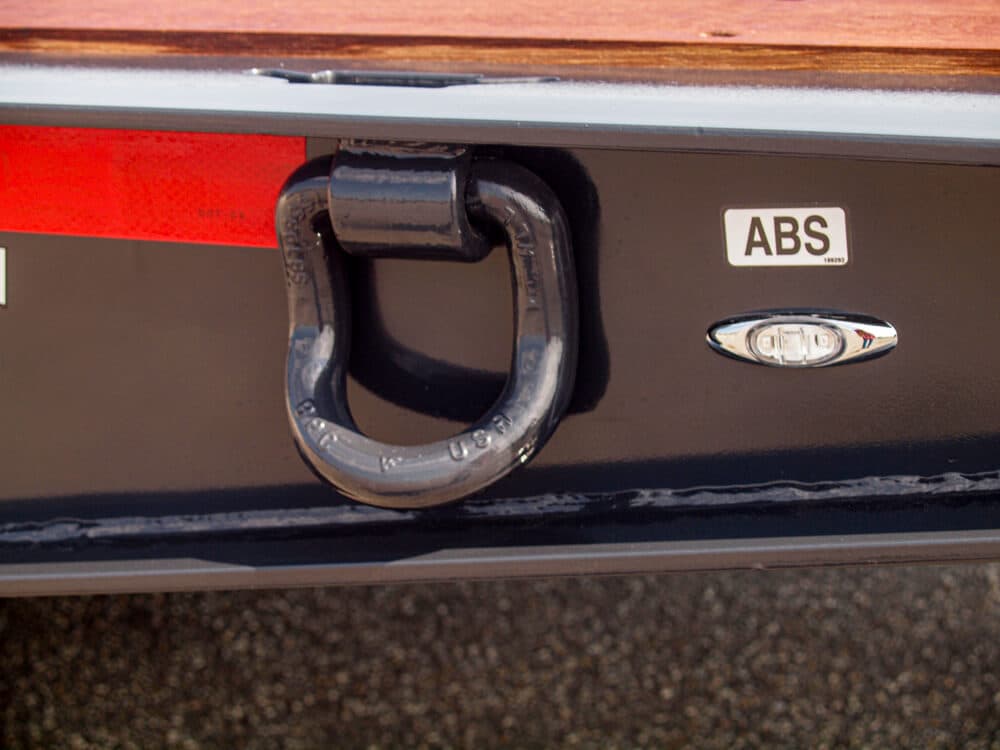

D-RingsFlush Mounted Recessed Mounted Bolt-On at Winch

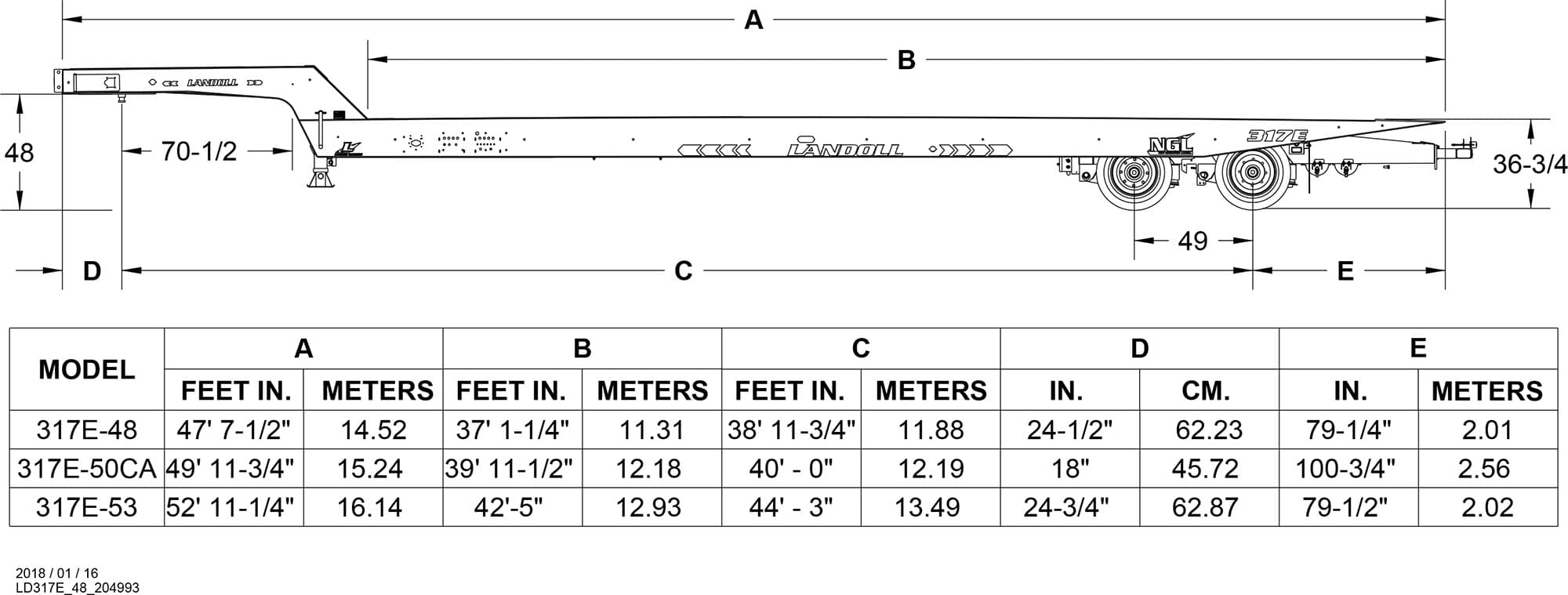

ModelCapacity*

317E-4835 Ton

317E-50CA35 Ton

317E-5335 Ton

NoteAll Bulkhead options require the 48″ X 102″ Bulkhead Binder Storage Rack Aluminum Light Bar with Dual LED Work Lights, S/T/T Lights, Aluminum Chain / Binder Rack LED Work Lights Dual LED Strobe Beacons Spare Tire Carrier Suspension and Undercarriage Hydraulic Dock Leveler 62,000 lb. Bluetooth Digital Scale System Air Dump Valve Parking Stands Pin Drop Hydraulic Ramps 5′ Aluminum Ramps-Portable (8,000 lb. Capacity) Tie Down D-Rings Flush Mounted Recessed Mounted Bolt-On at Winch Single Slot Ratchet Winch for 4″ Nylon Strap Winch and Accessories Winch 20K Winch – Slope Mounted (Braden) 12K, 20K, 30K Winch – Upper Deck Mounted (Braden, Warn, Ramsey Versions Available) Dual 20k or 30K Winch – Upper Deck Mounted (Warn) Winch Guard Work lights Cable Roller Guide (4-Way Rollers) Upper Deck Slope Wear Protection Slope Roller Wireless Remote Control Six Function Hydraulic Power Source Spare Hydraulic Quick Couplers (1 Male / 1 Female) Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with Cover Upper Deck Mounted Tires and Rims 17.5 Machined Aluminum Rim (Priced per Wheel) 17.5 Polished Aluminum Rim (Priced per Wheel) 17.5 Dura-Bright Aluminum Rim (Priced per Wheel) 22.5 Machined Aluminum Rim (Priced per Wheel) 22.5 Polished Aluminum Rim (Priced per Wheel) Black Steel and Aluminum Upon Request Tires 235/75R 17.5 Double Coin 255/70R 22.5 Double Coin 255/70R 22.5 Continental 255/70R 22.5 Michelin Spare Tires Available with Rim of Choice Hubodometer PSI Tire Inflation System Paint and Special Options Hot Dip Galvanizing Paint Over Galvanizing – Top Surface with Standard Colors Only Paint Over Galvanizing – Sides with Standard Colors Only Wet Paint Colors Black (Standard), Metallic Gray, White, Red, Viper Red, Green, Balboa Blue, Sapphire Blue, Yellow Special Paint: Contact Factory Galvanized Bumper Specifications Model Capacity* Base Weight Length Deck Axles Tires & Ply Rating 317E-48 35 Ton 17,360 lbs. (+/- 3%) 37′ 102″ 2 (8) 235/75Rx17.5 LRJ Double Coin 317E-50CA 35 Ton 17,940 lbs. (+/- 3%) 39′ 102″ 2 (8) 235/75Rx17.5 LRJ Double Coin 317E-53 35 Ton 19,485 lbs. (+/- 3%) 42′ 102″ 2 (8) 235/75Rx17.5 LRJ Double Coin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.Specifications subject to change without notice.Line Drawing (PDF)GalleryLearn MoreView LiteraturePrint LiteratureFind a DealerContact Me800-428-5655 moc.llodnal@selasreliartQuentin2026-07-20T16:31:13-05:00

Load Angle8.5°

Gooseneck

Hitch2″ Kingpin

Running Gear

SuspensionSAF Air Ride RLU228, 22,500 lb. Capacity

Axles(2) 25,000 lb. Axles, Dual Tire, Oil Bath Bearings, Automatic Slack Adjusters

Brakes12.25×7.5 Full Air / Spring Brakes, ABS 4S2M

Tires235/75R 17.5 LRJ Continental Tires

WheelsHub Pilot / Steel with Outboard Brake Drums

Hydraulics

Hydraulic Hook UpQuick Couplers 2,500 PSI – 20 GPM at Controls, 50 GPM Max

Tilt Cylinders(2) 4″ x 42″

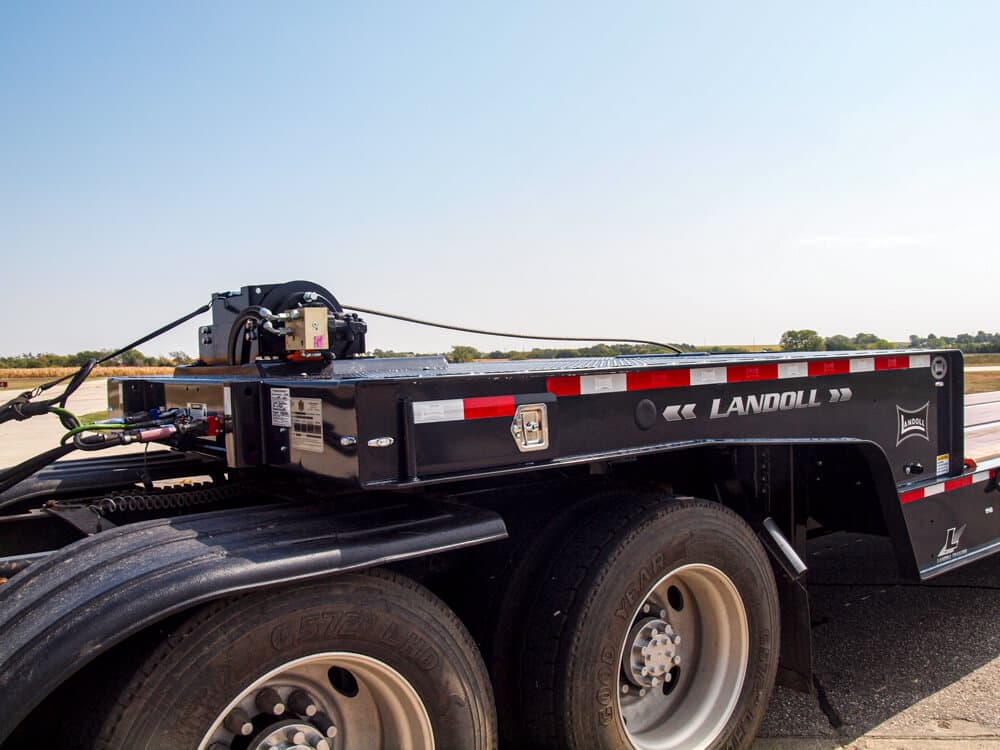

Hydraulic Winch12,000 lb. Worm Gear with Spring Tension and 85′ of 1/2″ Cable

Hydraulic Valve BodyRexroth

Hydraulic Dock Leveler62,000 lb.

Winch20K Winch – Slope Mounted (Braden) 12K, 20K, 30K Winch – Upper Deck Mounted (Braden, Warn, Ramsey Versions Available) Dual 20k or 30K Winch – Upper Deck Mounted (Warn)

Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with CoverUpper Deck Mounted

Electrical

Air / Electrical7-Way Receptacle

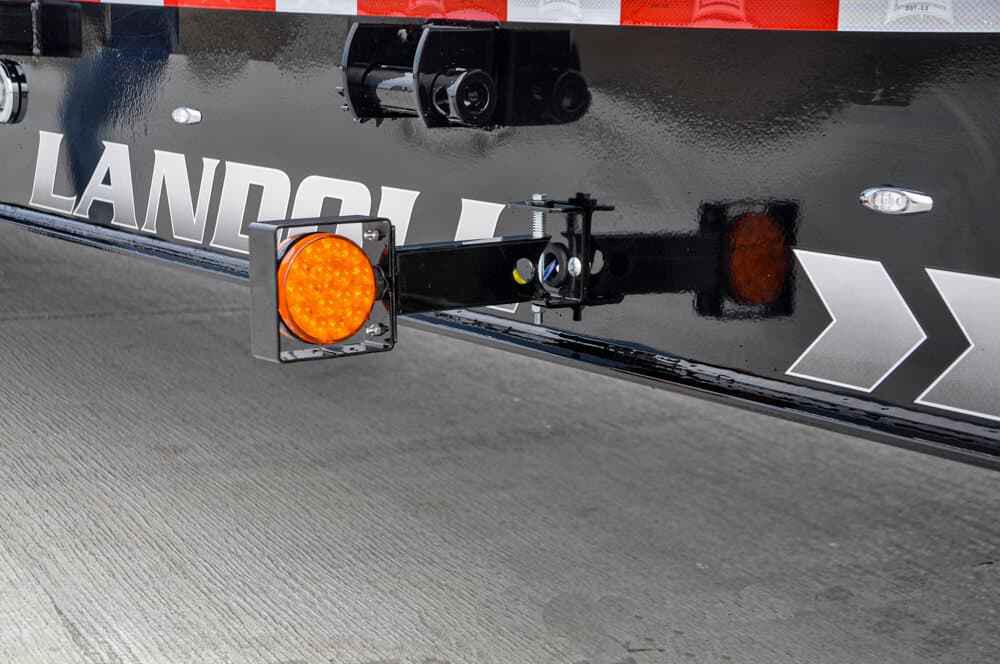

LightsIndustry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty)

Wiring HarnessIndustry Best Grote Xtreme Harnessing (7-year warranty)

Finish

FinishSteel Grit Shot Blast to Bright Metal

Wet Paint ColorsBlack (Standard), Metallic Gray, White, Red, Viper Red, Green, Balboa Blue, Sapphire Blue, Yellow

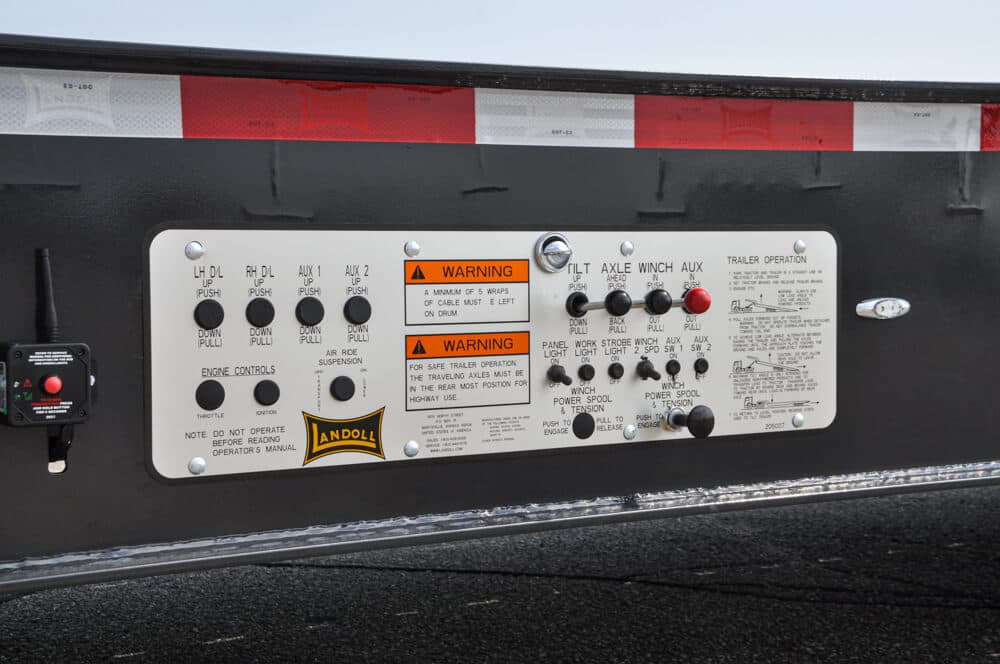

Controls

Wireless Remote ControlSix Function
