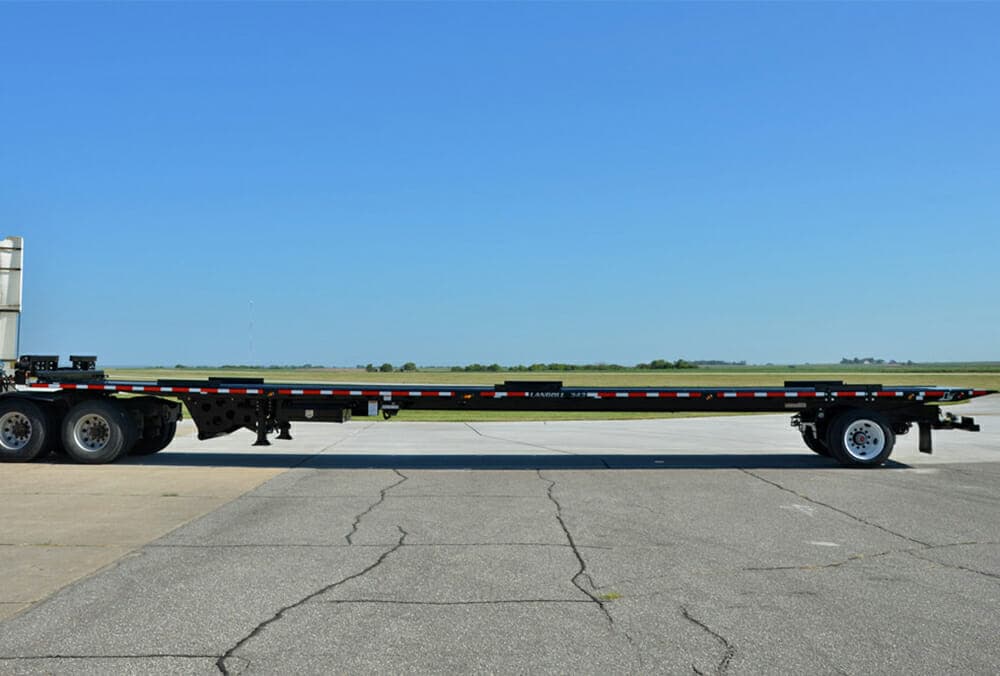

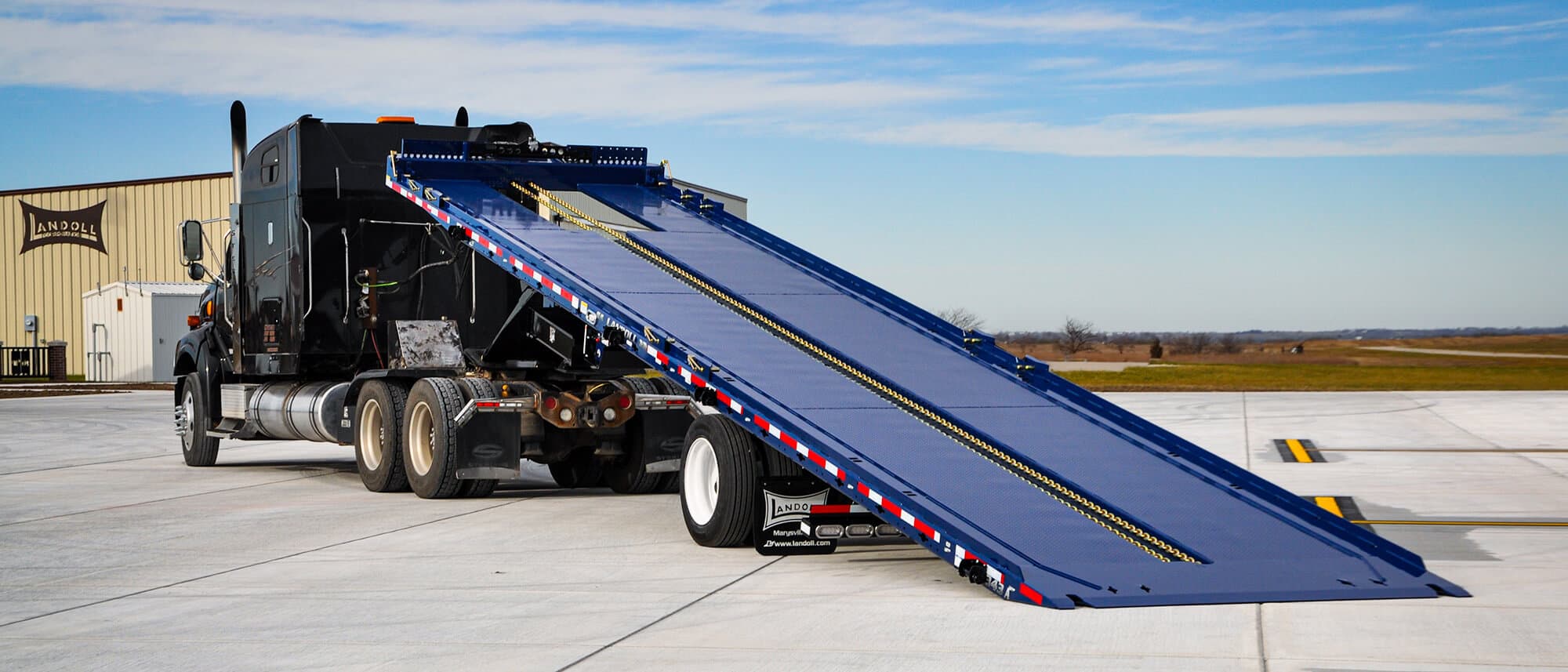

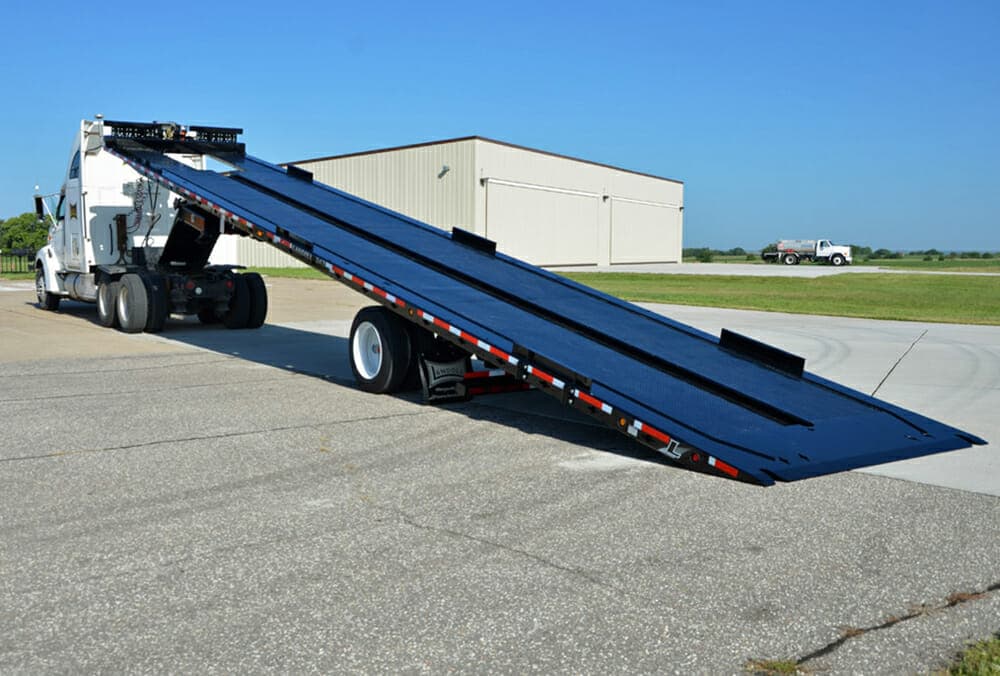

343 Traveling Axle Trailer

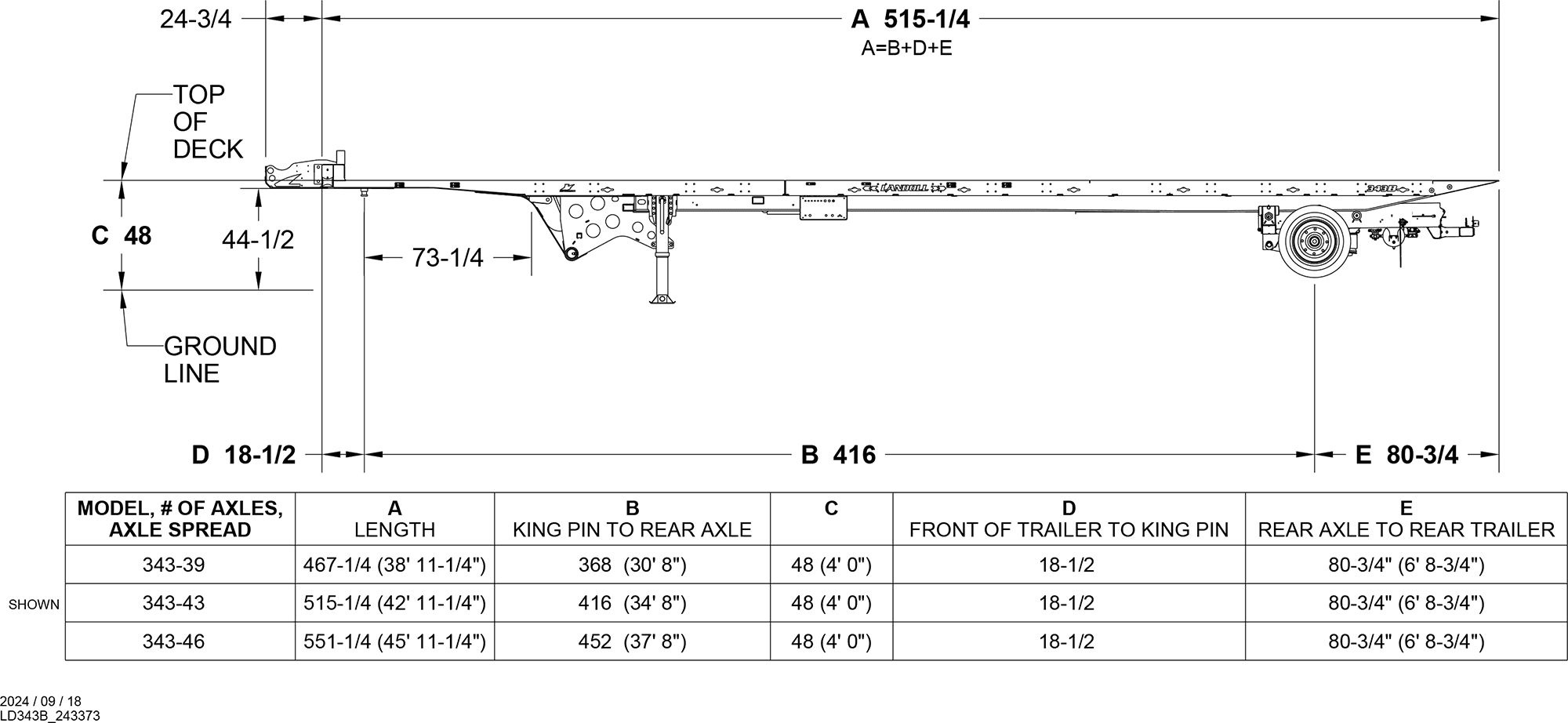

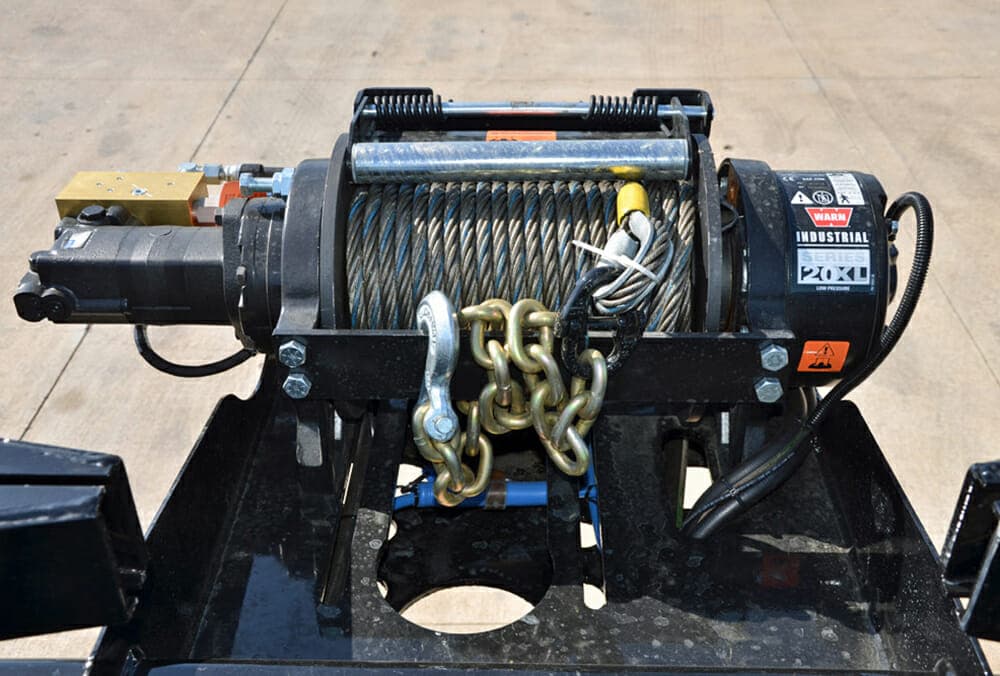

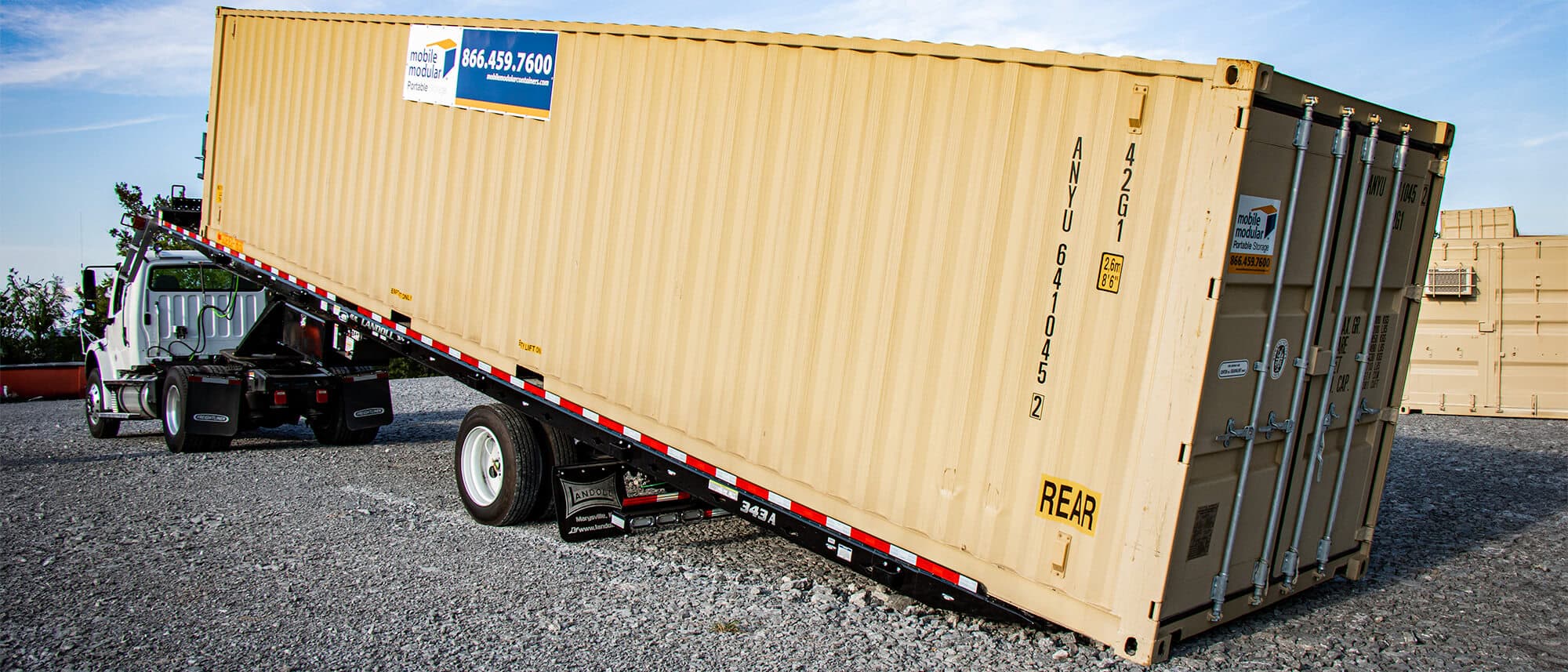

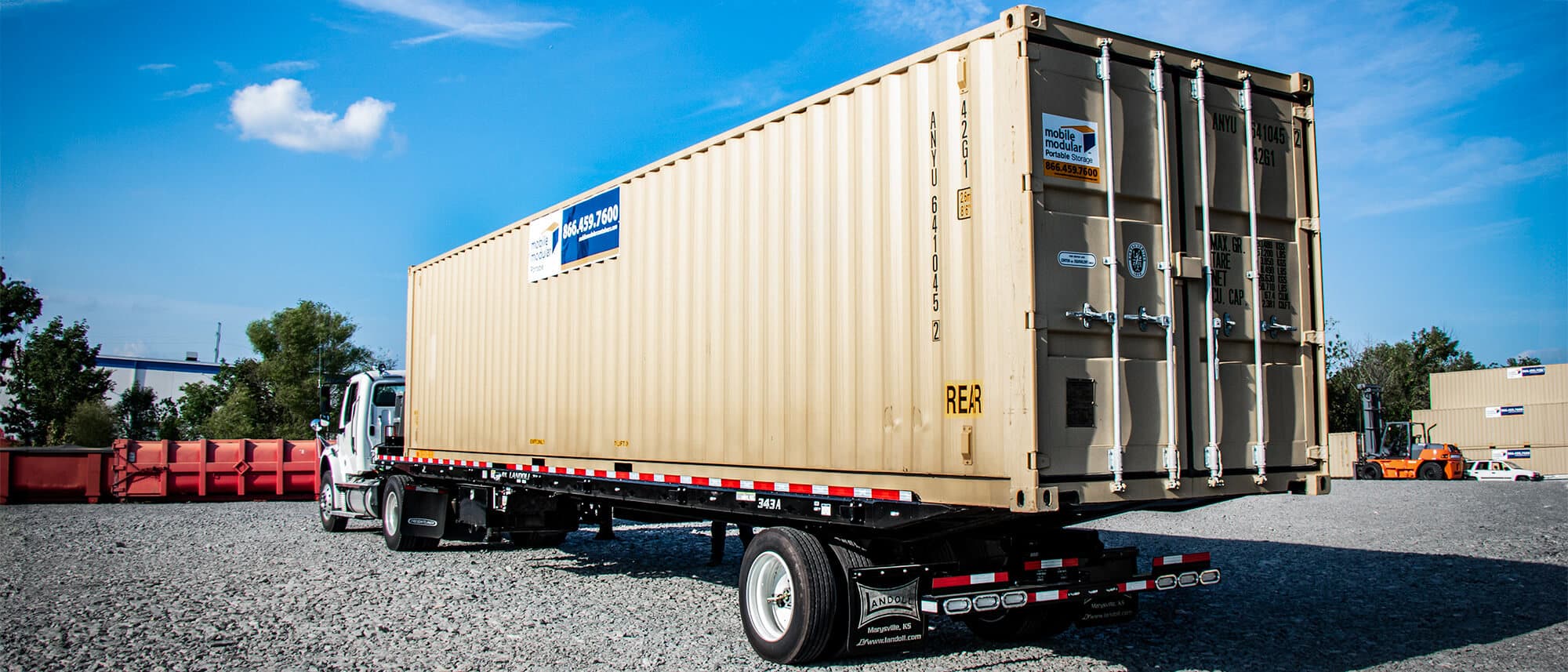

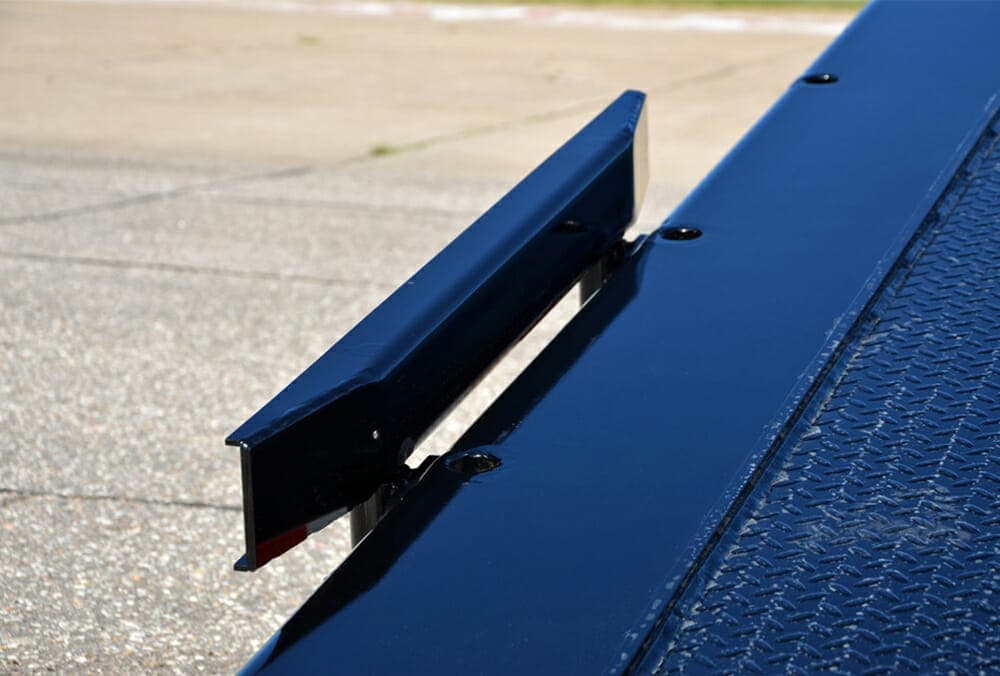

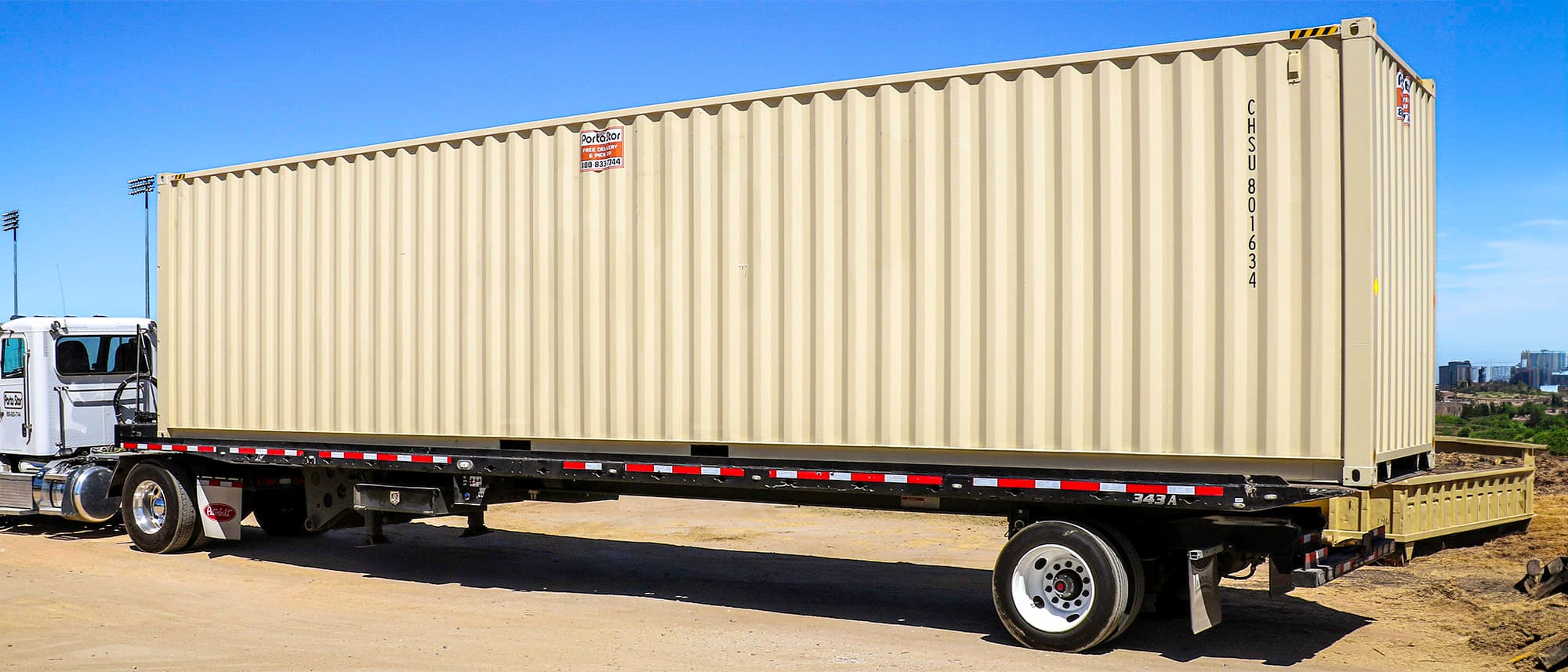

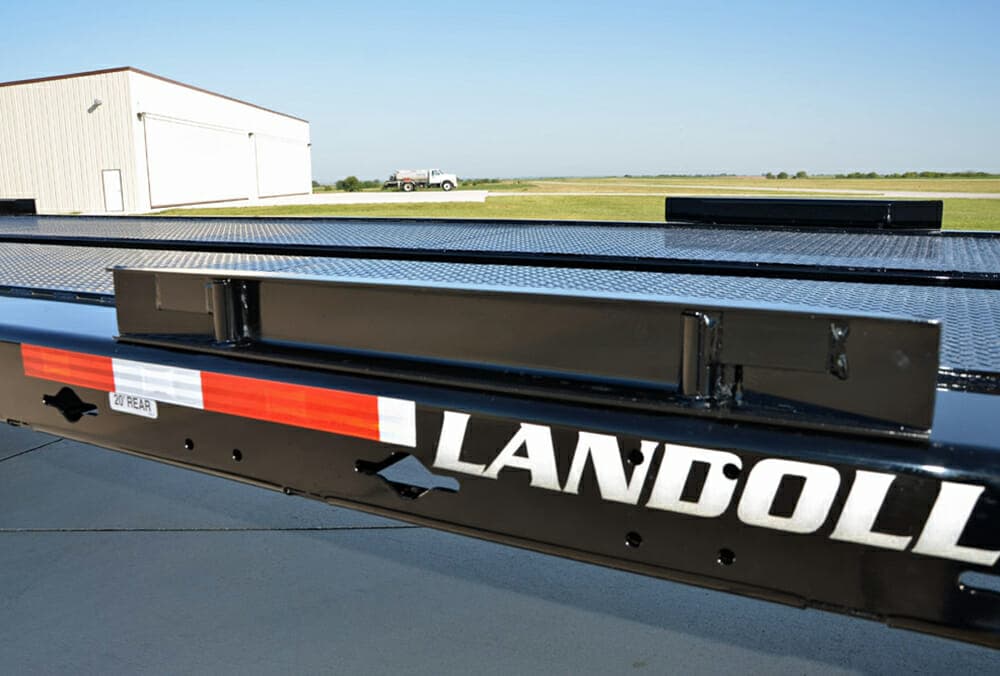

Landoll’s all-new 343 Traveling Axle Trailer brings together our decades of experience in the storage container industry. Today’s demands to move standard ISO 20′ and 40′ boxes are easy. However, add the ISO and domestic high-cube along with the never-ending customized lengths of boxes to an application, and you need a trailer that can move them all. The 343 will do just that. The 343 is available in 39′, 43′, 46′, and 50′ lengths. The 39′ model gives an operator the greatest maneuverability while handling a cube up to 40′ in length. The 43′ model can handle up to 45′ boxes and the 46′ model can handle up to 48′ boxes. If you have domestic 53′ high cube boxes in your fleet, then choose the 50′ model. Match the length with the containers you are moving.** ** A fifth wheel height of 45″ is required when hauling high-cube containers The 343 includes the Chain Drive Load System standard. But if your drivers like a winch system, then choose from a 12,000 or 20,000 lbs. Warn winch. The standard Handling Package includes a chain loading bridle, chain binders, front double container stops, and push bar. Outside guide panels or toe boards can be added with the standard corner casting guide. They have an inside position for guiding 96″ wide boxes. With the optional bolt-on outside guide panels, you can guide 102″ high cube boxes. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Axles Prepped for Air Inflation Single or Dual 42″W x 28″D x 17″H Available Street Side and Curb Side 255/70R 22.5 Michelin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. Disclaimer: Landoll has a corporate policy of continuous product improvement and development, therefore, specifications are subject to change without any advance notice. Landoll is not responsible for differences between the specifications or illustrations contained on literature, data sheets, website and actual equipment. The information on any form of this website is intended only for the sole use of Landoll. We do not share or sell any of this information to third parties. This drawing and all information therein is property of Landoll and is confidential. It must not be made public or copied. This drawing is loaned subject to return upon demand and shall not be used directly or indirectly in anyway detrimental to our interest. Drawing illustrates standard equipment; optional equipment may change standard measurements. 800-428-5655 moc.llodnal@selasreliart
