330-1 Traveling Axle Trailer

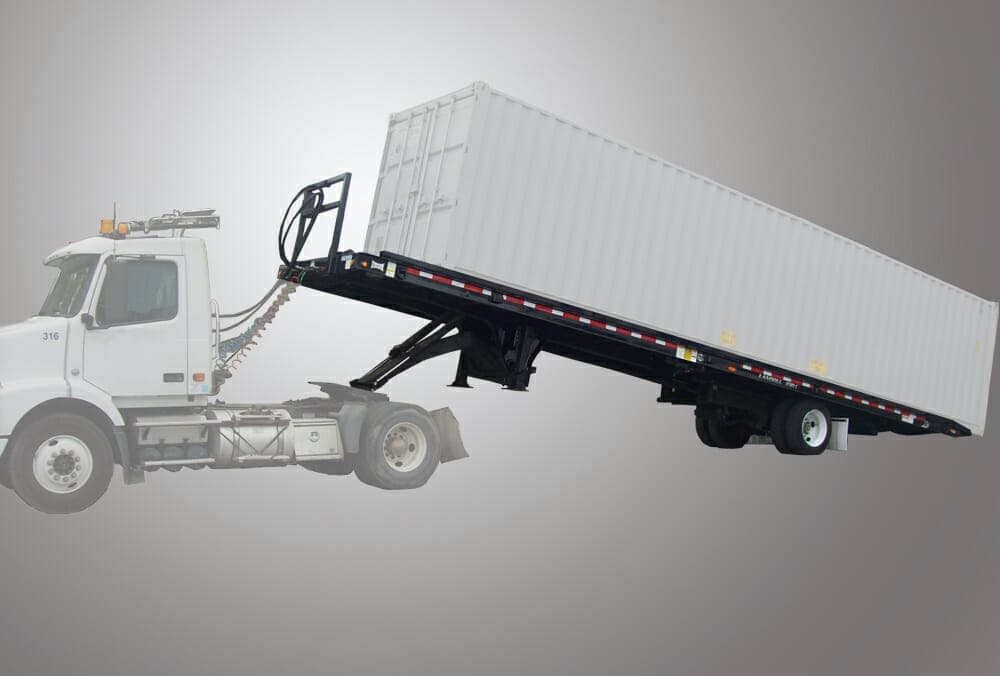

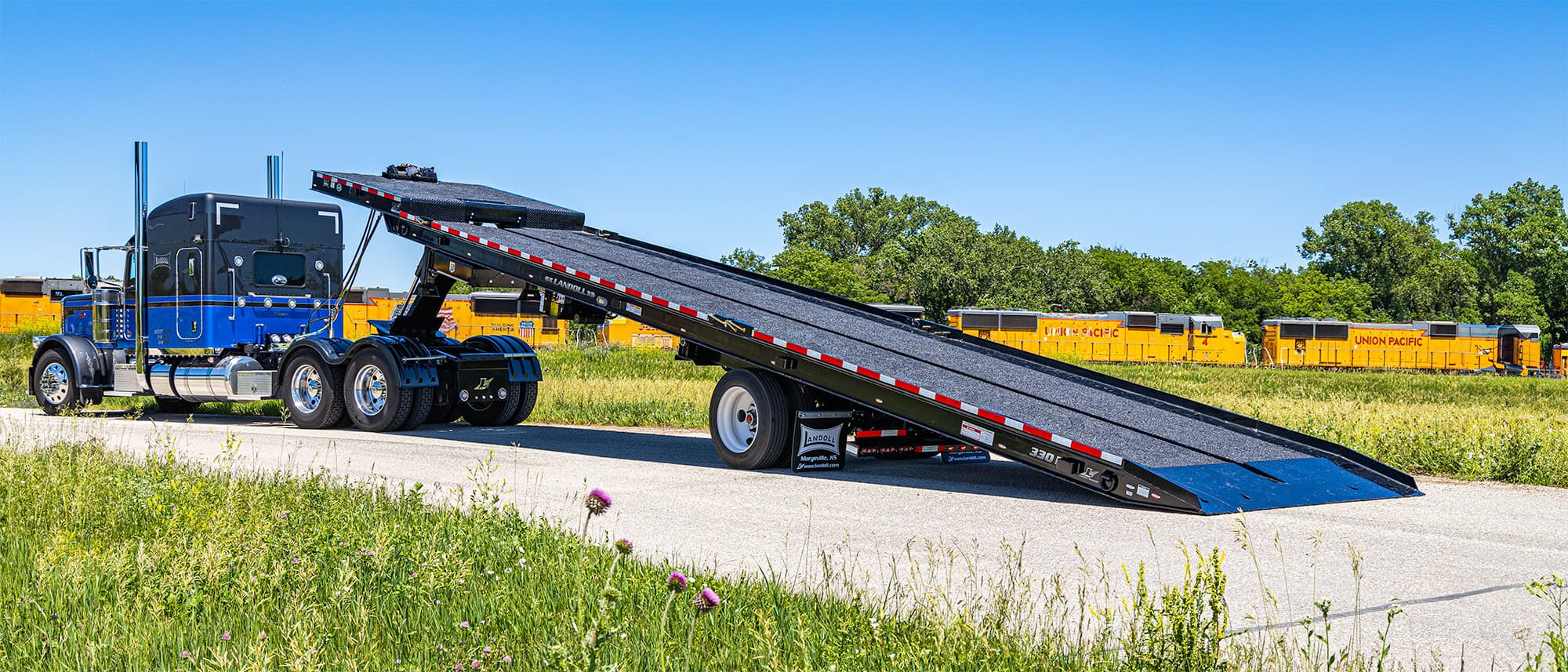

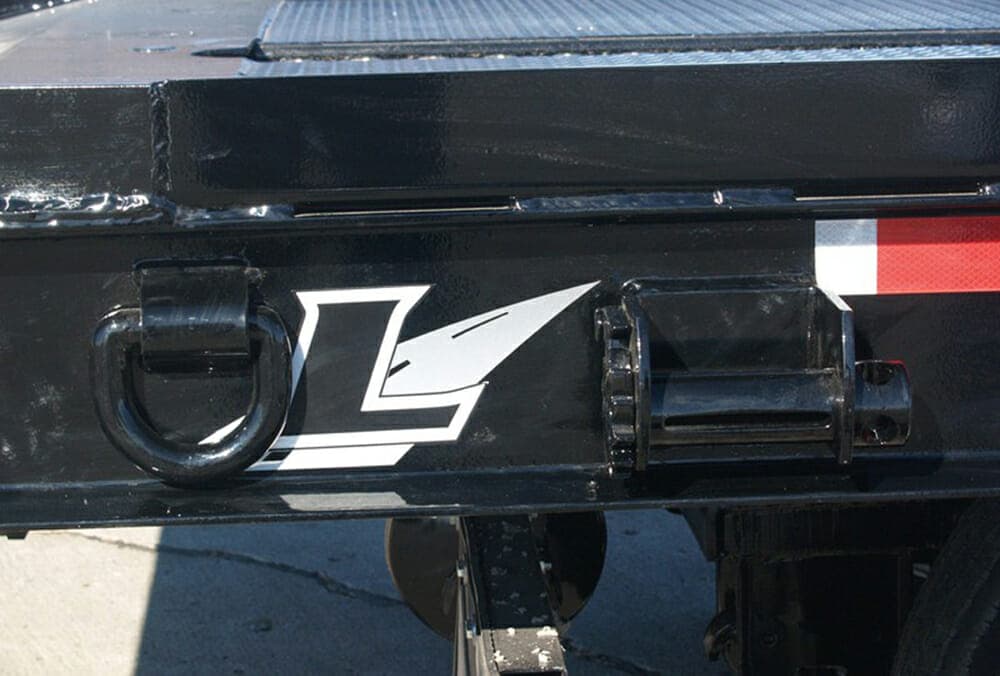

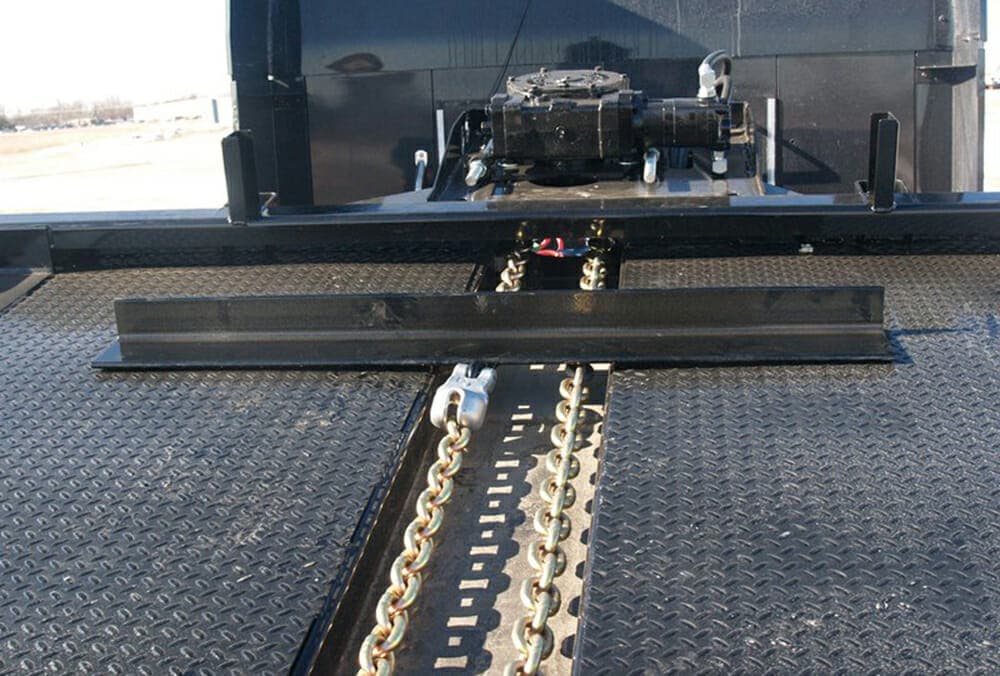

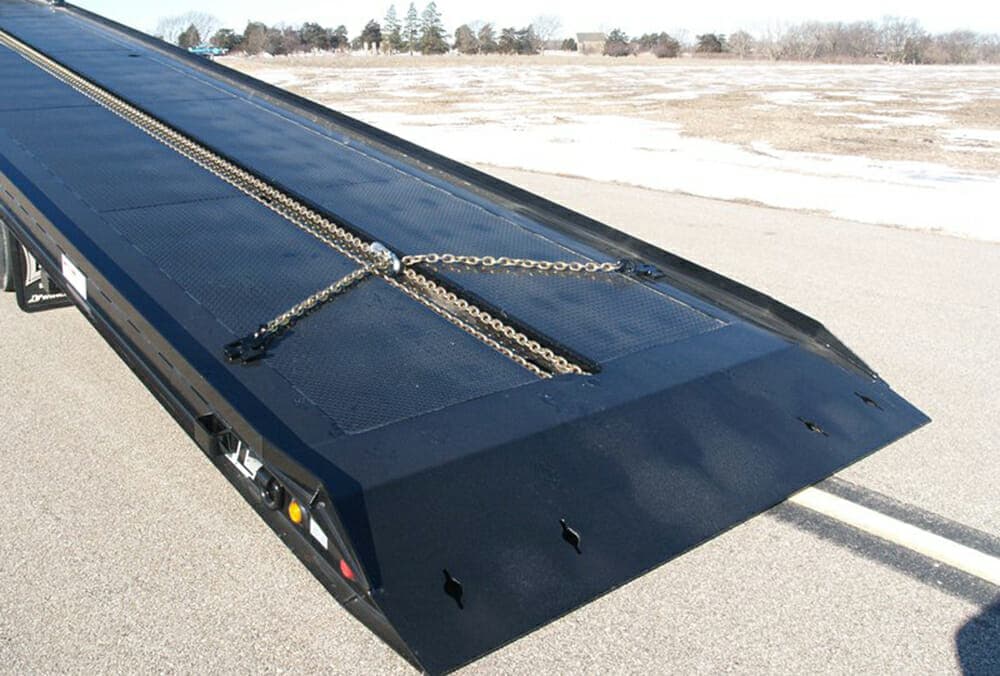

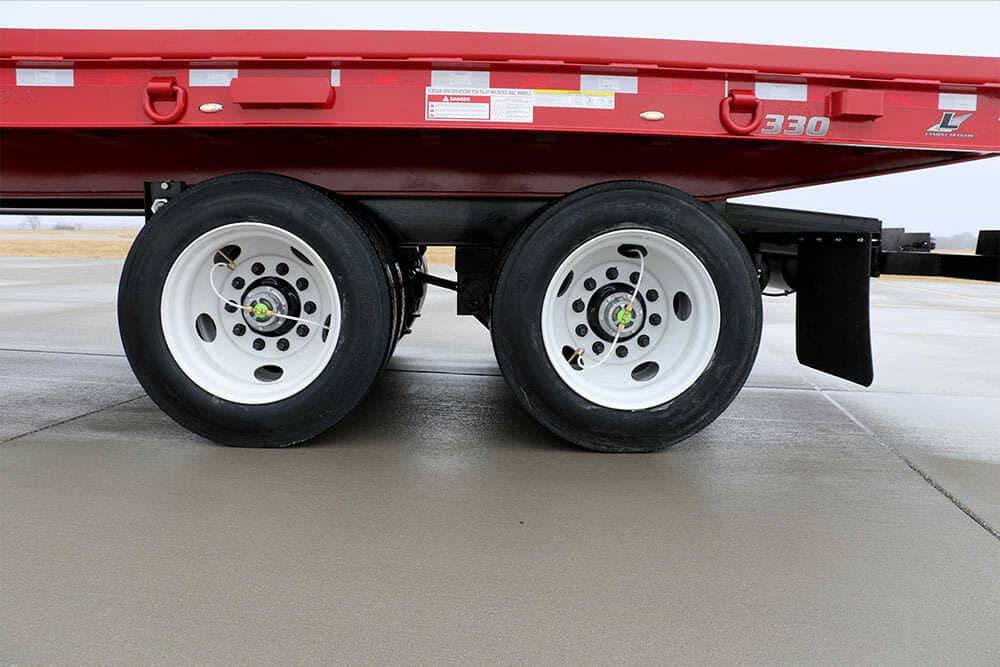

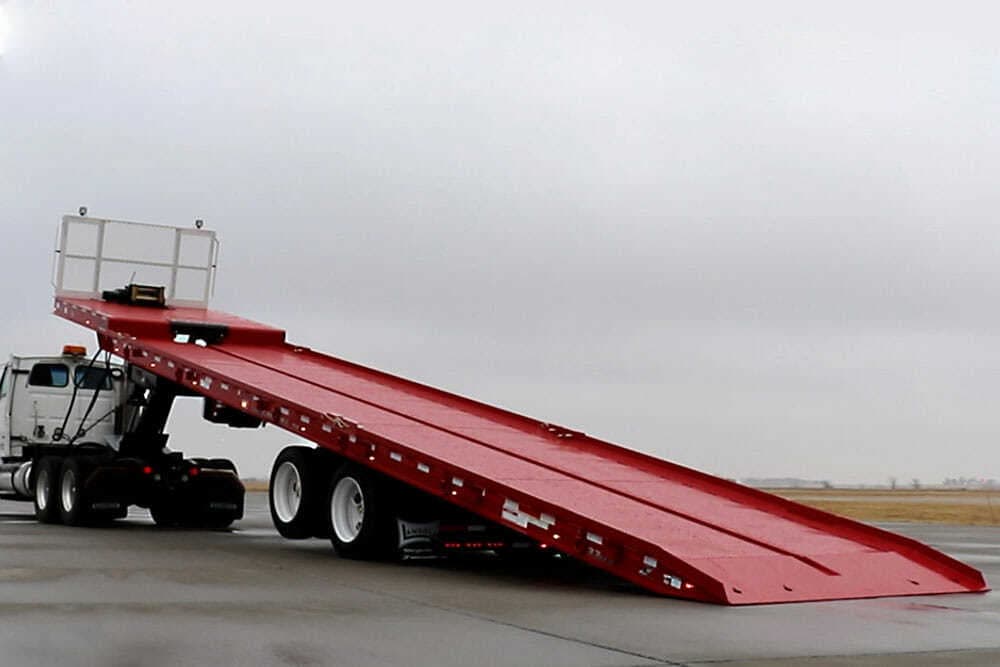

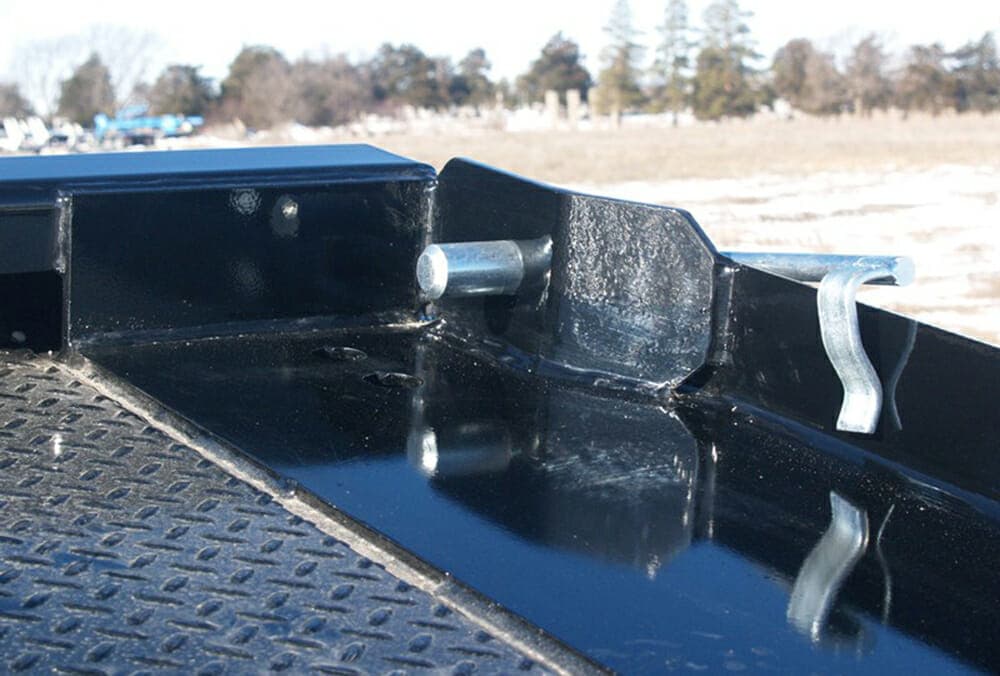

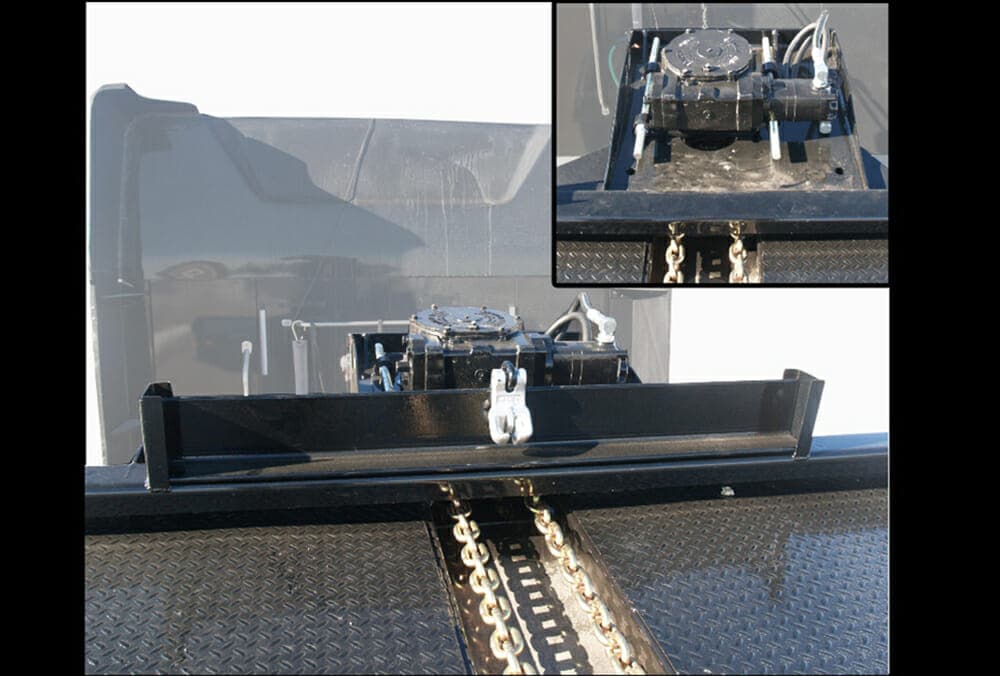

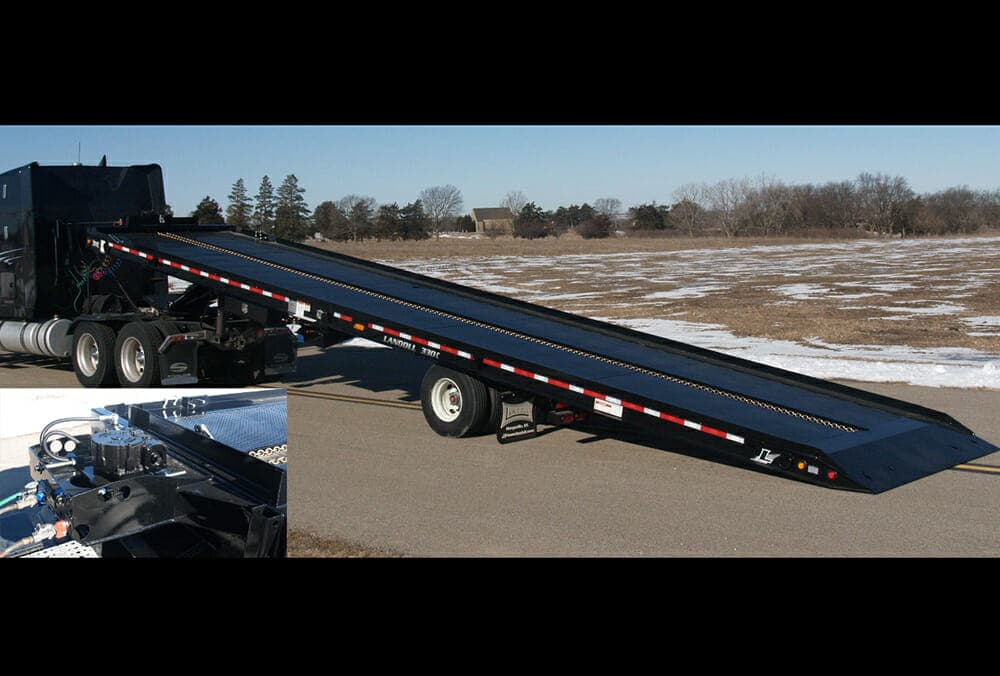

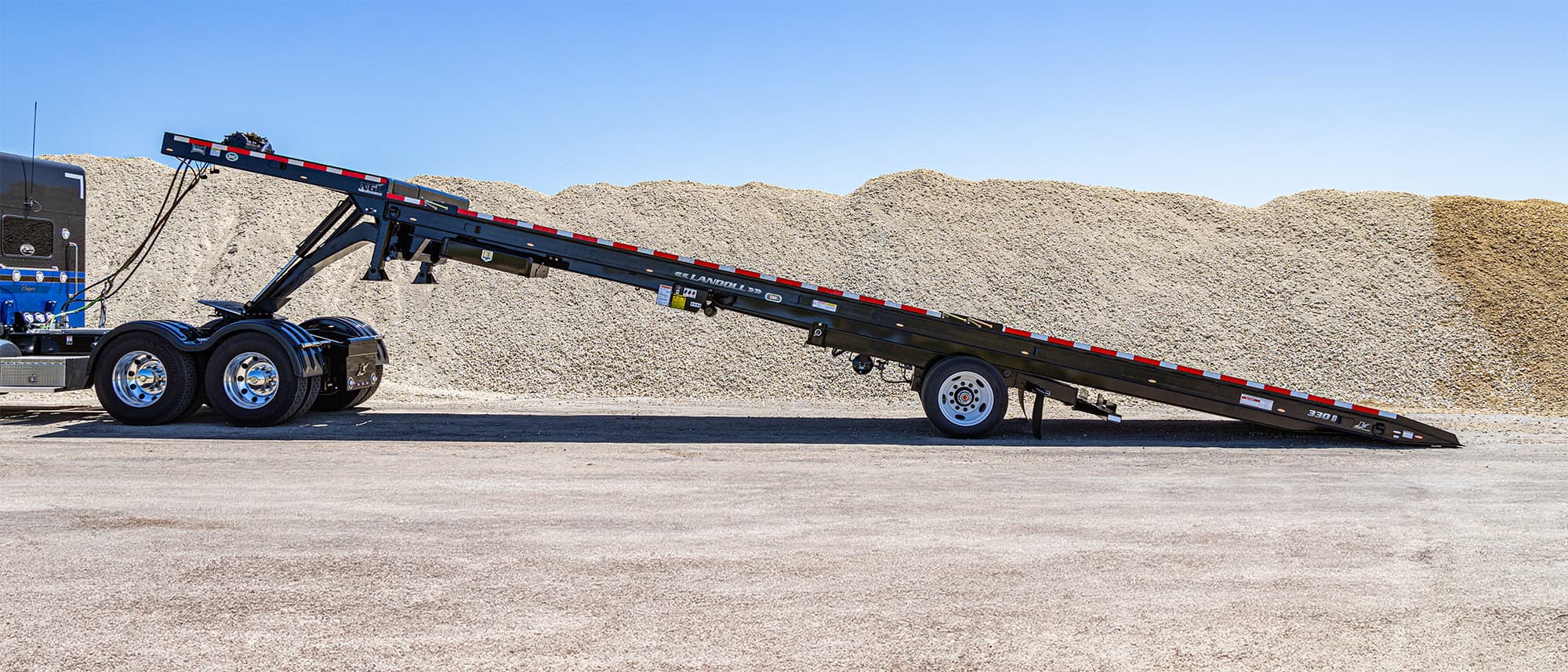

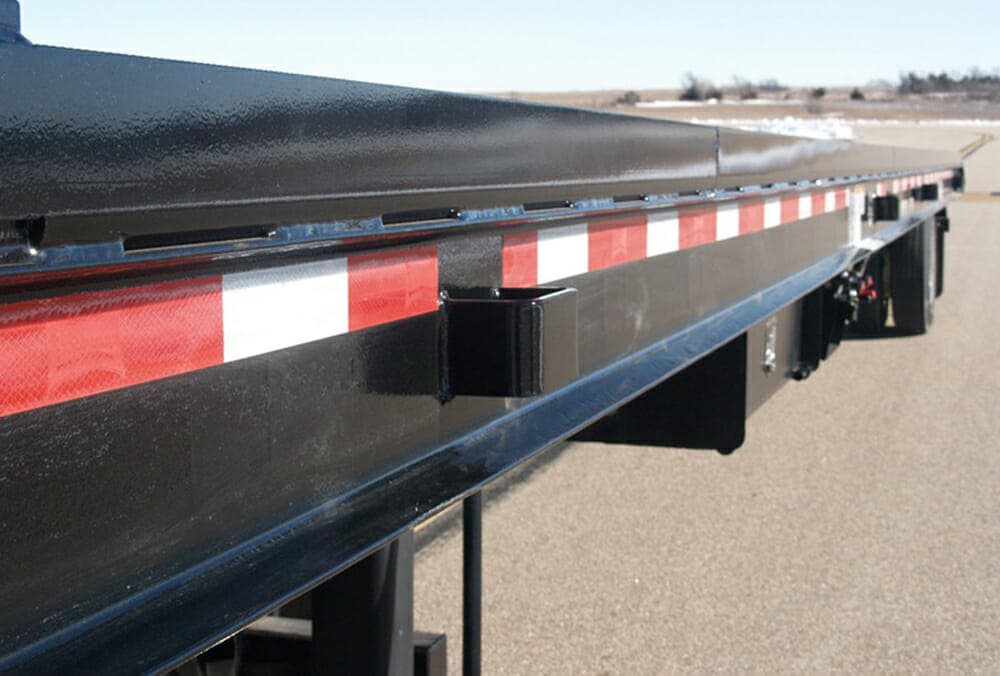

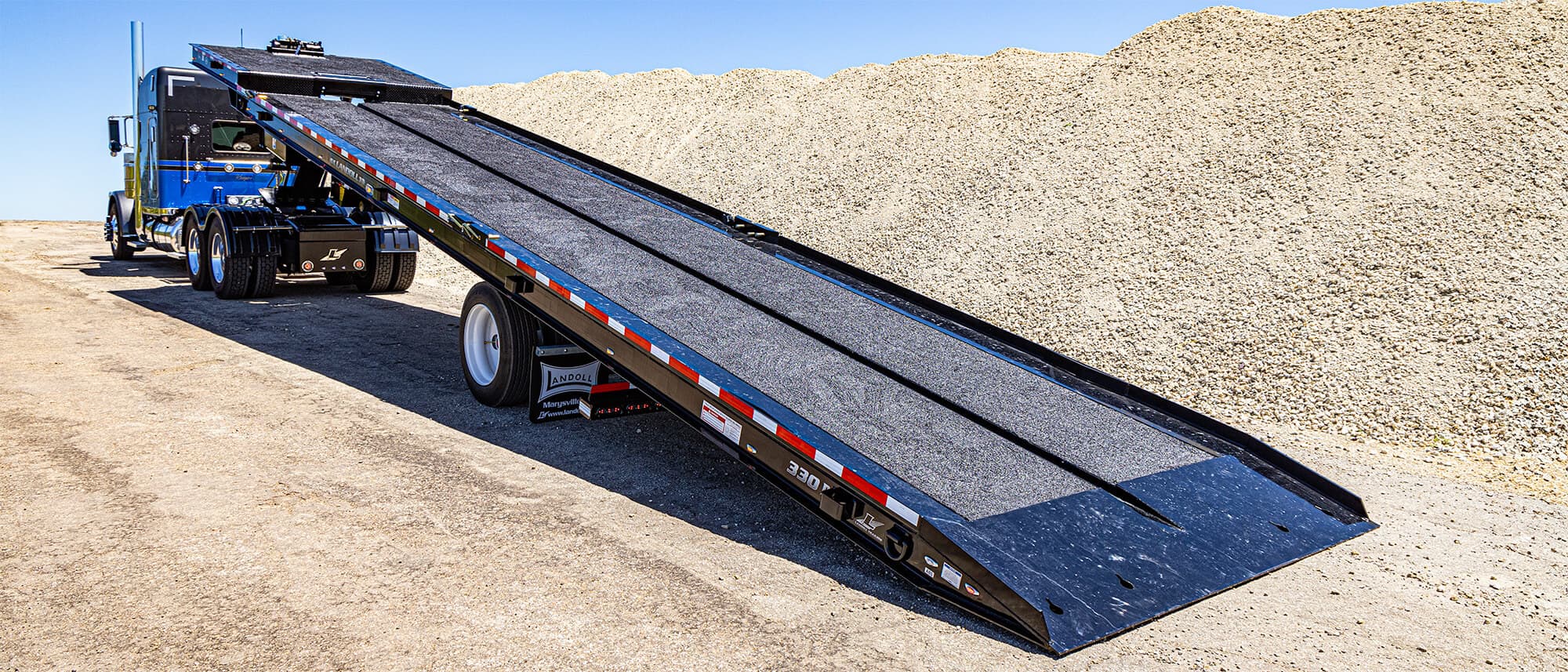

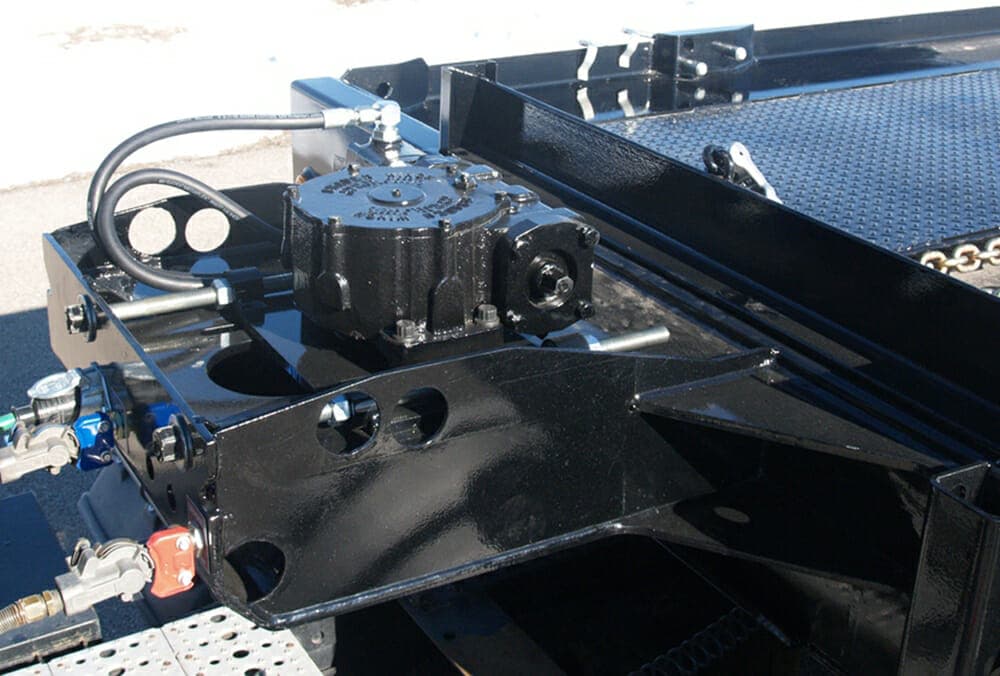

The 330 container trailer is designed with a solid, flat platform made with two main beams, and a rugged outer channel with a 5/16” skid plate and side rail built in. The full-width solid approach plate has four keyhole tie-downs. The 330 is also available with a single drop frame to haul high cube containers. The tilt design provides a 12° load angle that allows container placement with hydraulic control at all times. Place containers right on target – beside buildings, in alleyways, or behind and within retail warehouses. Choose the optional Chain Drive Load System to move multiple boxes on the same load. Other equipment includes full 25,000-lbs. air-brake axles, spring brakes, and 255/70R 22.5 tires. Built with a rugged frame and heavy-duty components, it’s a trailer that will perform for years. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. 255/70R 22.5 Michelin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. Disclaimer: Landoll has a corporate policy of continuous product improvement and development, therefore, specifications are subject to change without any advance notice. Landoll is not responsible for differences between the specifications or illustrations contained on literature, data sheets, website and actual equipment. The information on any form of this website is intended only for the sole use of Landoll. We do not share or sell any of this information to third parties. This drawing and all information therein is property of Landoll and is confidential. It must not be made public or copied. This drawing is loaned subject to return upon demand and shall not be used directly or indirectly in anyway detrimental to our interest. Drawing illustrates standard equipment; optional equipment may change standard measurements. 800-428-5655 moc.llodnal@selasreliart
