Landoll Trailers

318 Traveling Axle Trailer

Name: Landoll Trailers 318 Traveling Axle Trailer
Brand: Landoll Trailers

Features

Capacity

50 Ton

Deck Height

38"

Axles

2-Axle

Gooseneck

Fixed

Find Used 318 Traveling Axle Trailer For Sale View on Landoll Trailers Website

About This Trailer

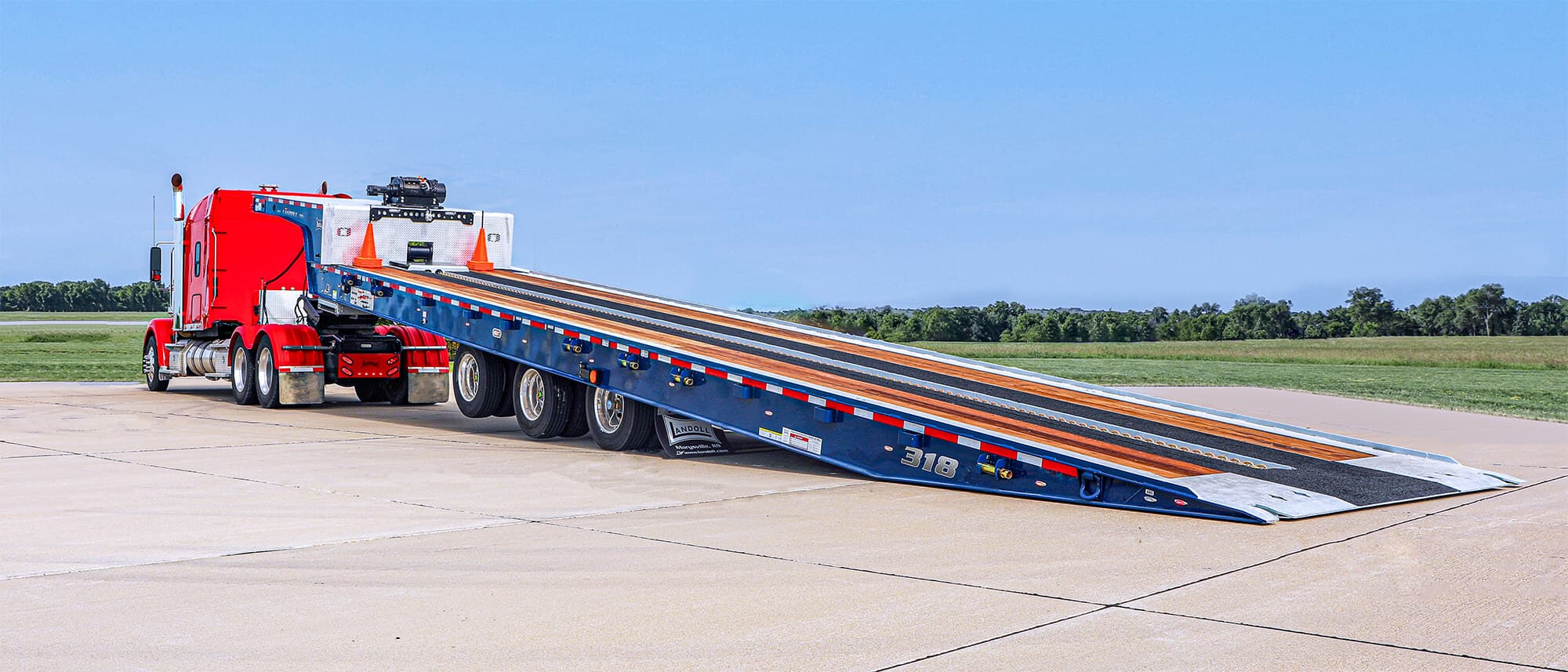

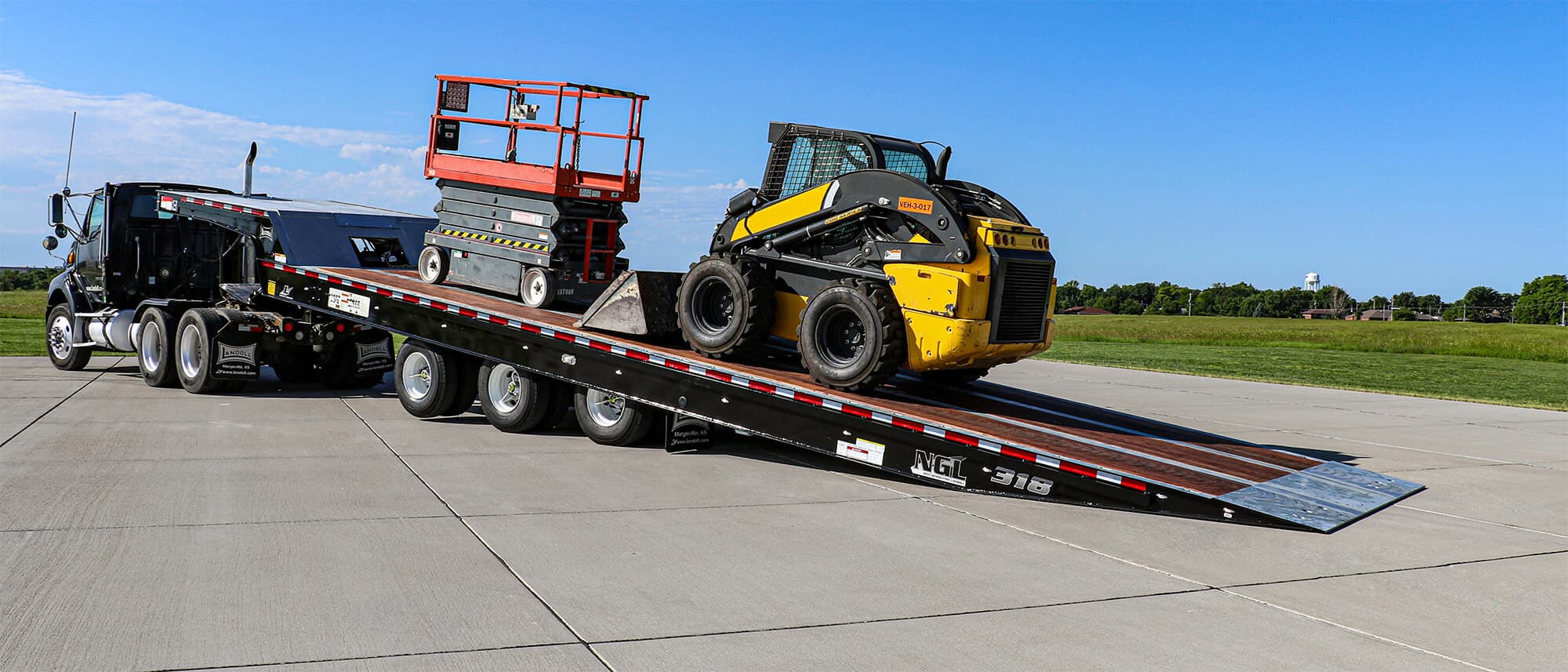

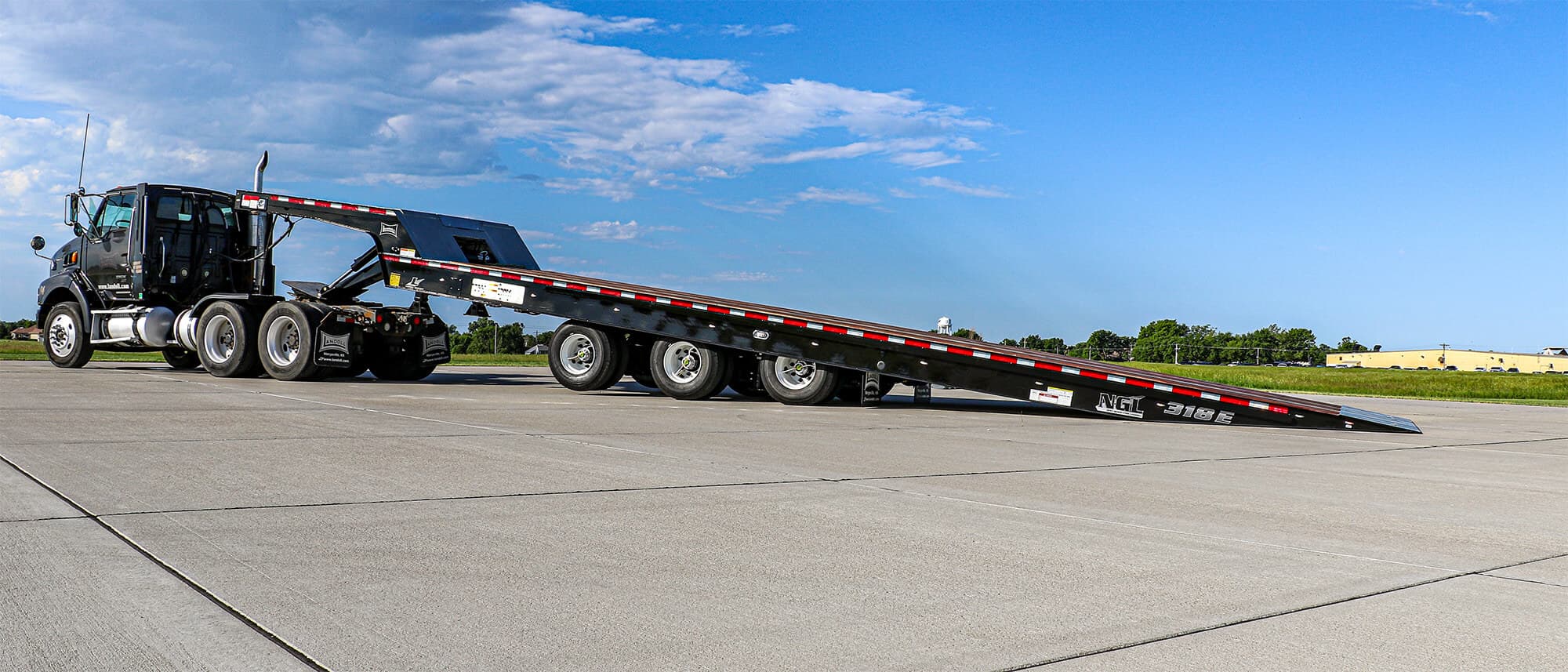

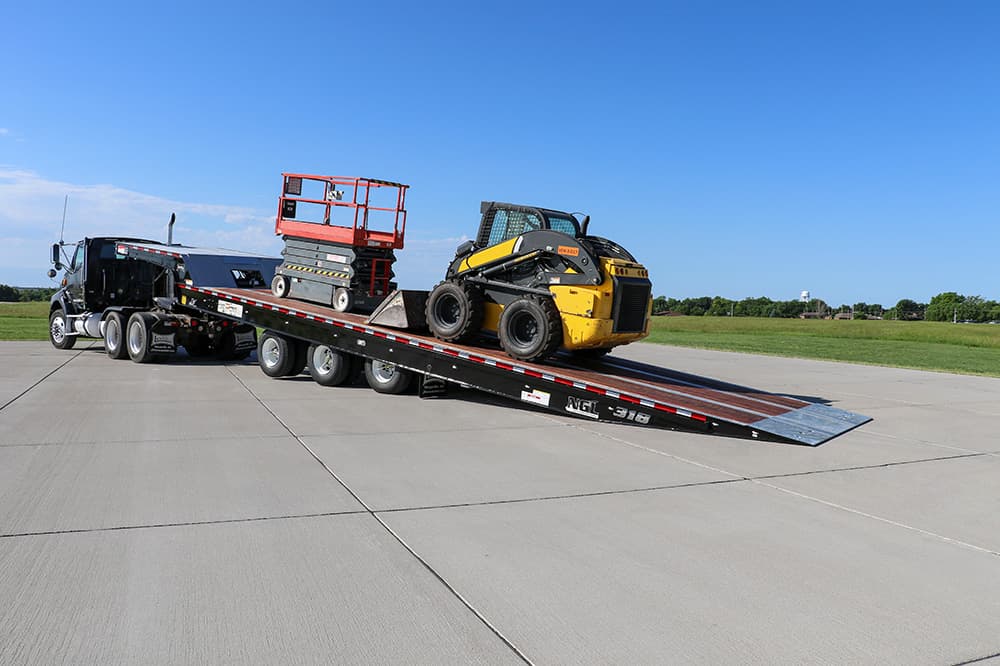

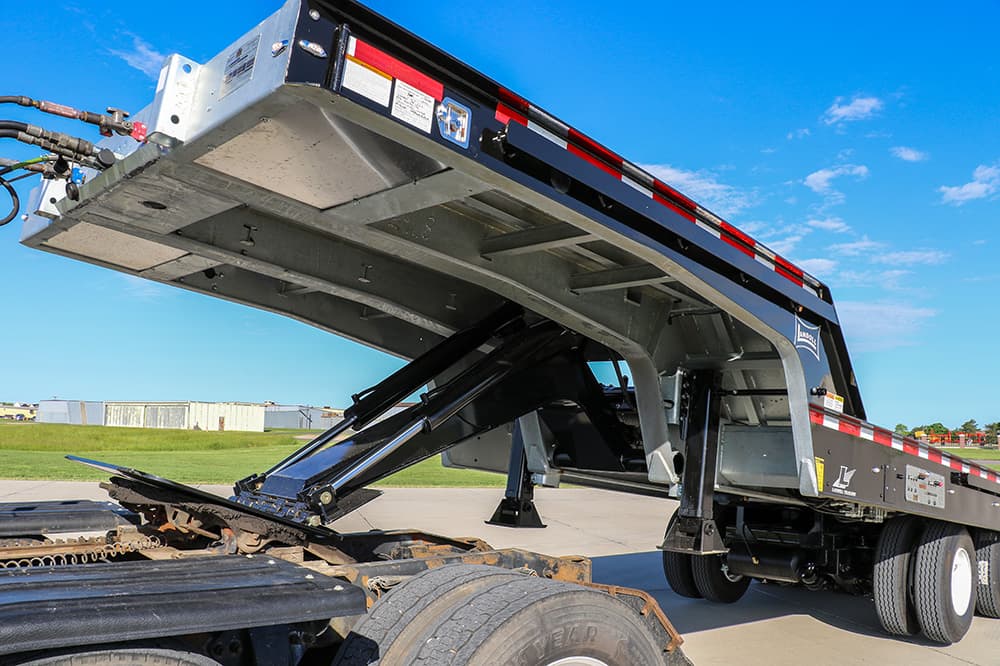

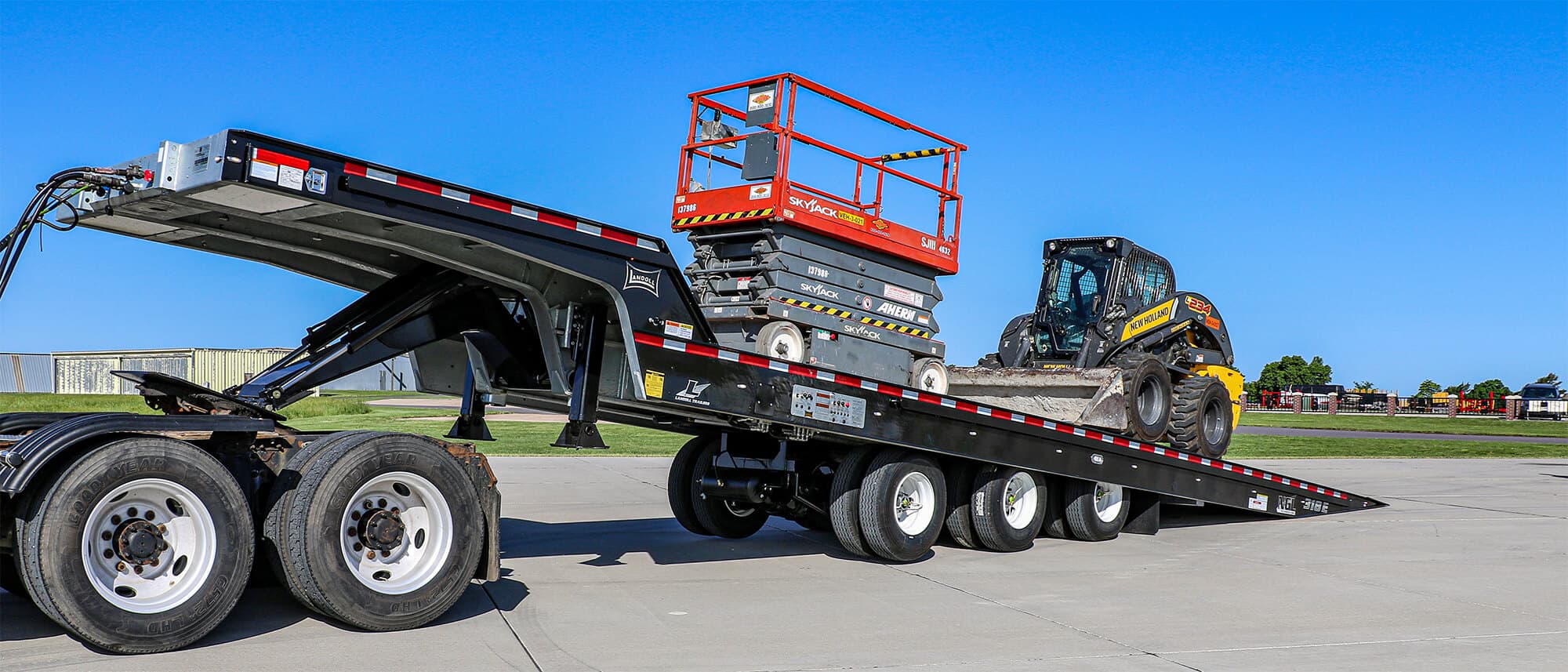

The 318 50-ton capacity trailer features a one-piece, 4-beam frame designed with a low-load angle to haul tough loads. Landoll’s full-tilt trailer gives the operator total control of the trailer and heavy loads. The 318 features a dependable rigid frame that lifts up from the fifth wheel and three axles to provide the additional group rating needed. In-house designed and fabricated steel beams, similar to the 317, incorporated with high tensile strength Jr. I-Beam cross members provide additional strength. The undercarriage roller bearings lower the deck into patented reinforced pockets, lowering the deck height and preventing frame twist. The 318 is a highly durable solution when heavy loads are needing moved. The 318 comes equipped with standard centralized grease, Grote annealed marker lights, Grote “Xtreme” wire harnesses and durable powder coat paint. Popular options include Container Chain Drive for heavy containers, multiple Winch combinations and Dock Level Hydraulics to level the trailer to dock height. Photos may show optional features. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Toter Hitch (Flipbook) 1/8″ Steel Tread Plate Over Wood Deck Straps Beside Outer Beam (1-1/4″ x 9″) 255/70R 22.5 Double Coin 255/70R 22.5 Continental 255/70R 22.5 Michelin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. 800-428-5655 moc.llodnal@selasreliart

Full Specifications

Capacity

Capacity*100,000 lbs.

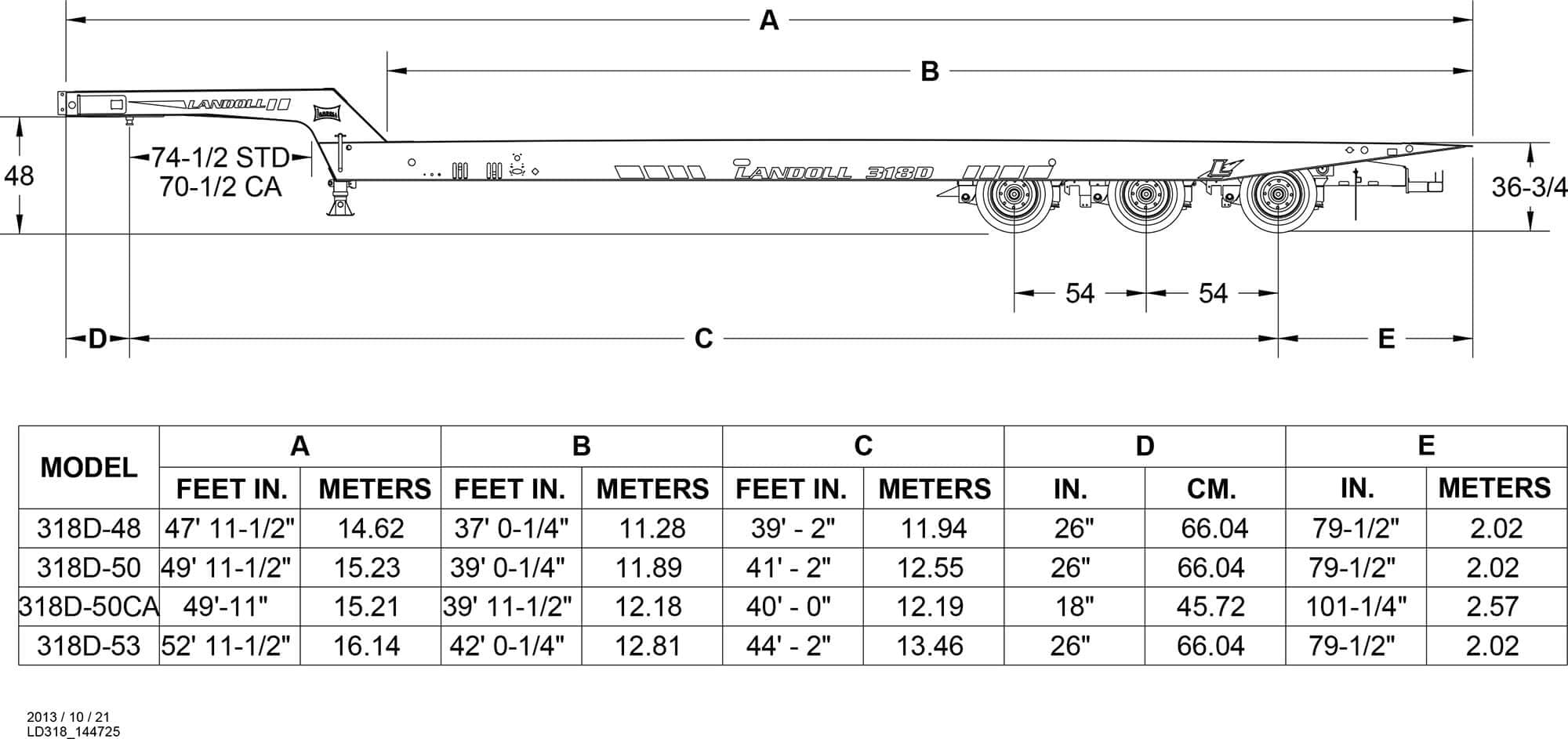

Dimensions

Deck Rating70,000 lbs. in 10′

Width102″

Loaded Deck Height38″

Loaded Ground Clearance20″

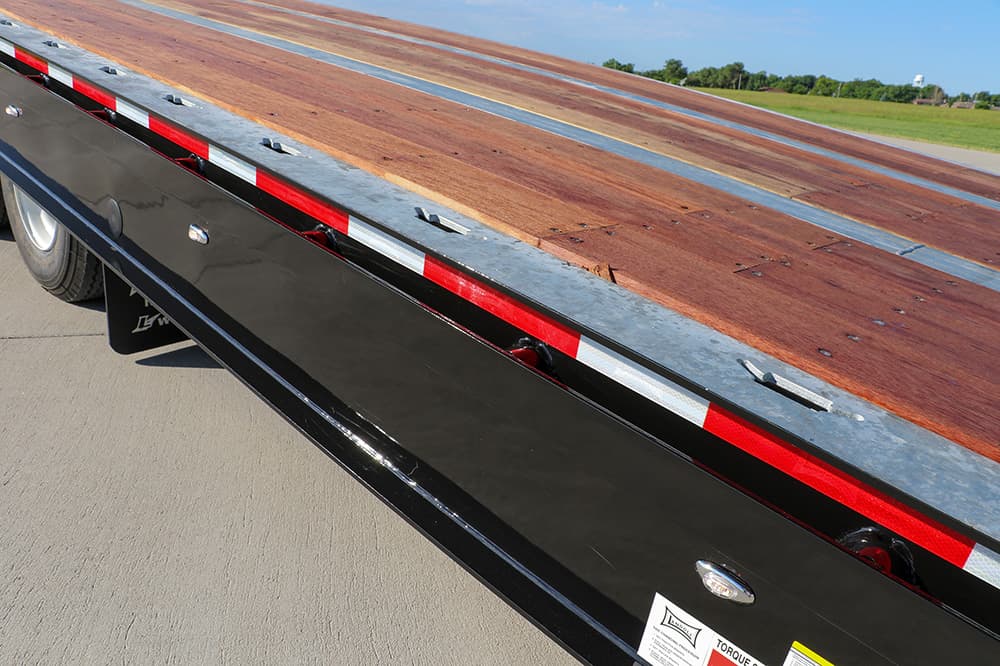

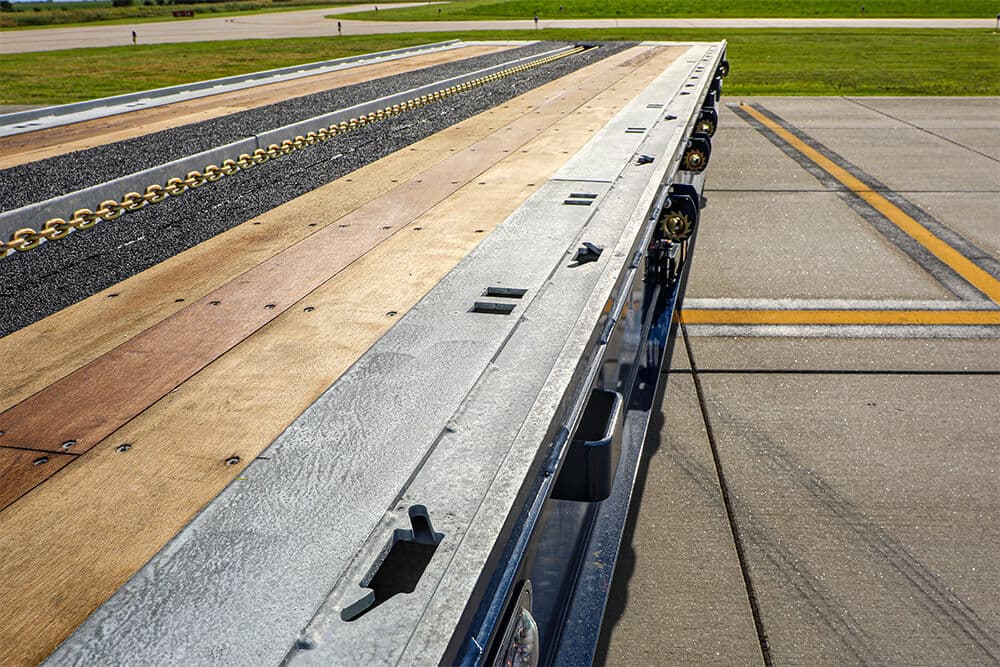

Decking1-3/8″ Apitong Hardwood

Swing Clearance74-1/2″

Deck Type1/8″ Steel Tread Plate 1/8″ Steel Tread Plate Over Wood

Deck StrapsDeck Straps Beside Main Beam (1-1/4″ x 9″) Deck Straps Beside Outer Beam (1-1/4″ x 9″)

Upper Deck Slope Wear ProtectionSlope Roller

Frame

Main FrameFabricated 100,000 PSI Yield Four-Beam Design

General

Slope Drop45°

Crossmembers4″ Junior I-Beam on 8″ Centers

Pin Setting26″

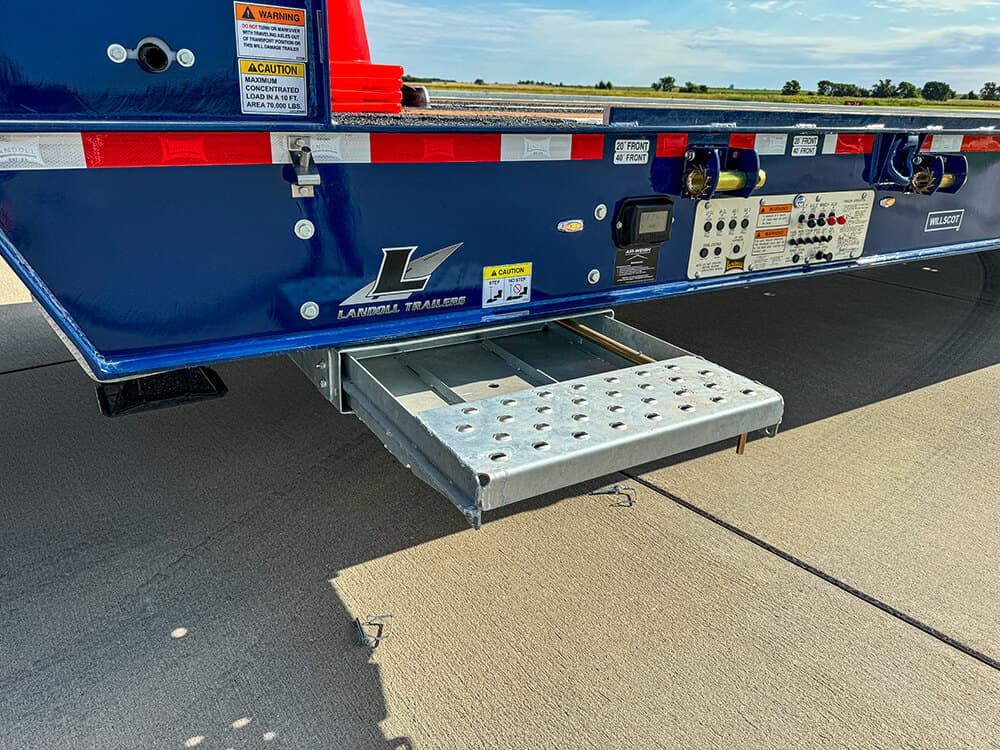

Tool BoxTwin Side Mounted in Upper Deck with Lockable Doors (7”H x 34”W x 29” D)

Tie DownsDouble Keyhole Chain Slots and Stake Pockets

Parking StandsTwo Speed Landing Gear

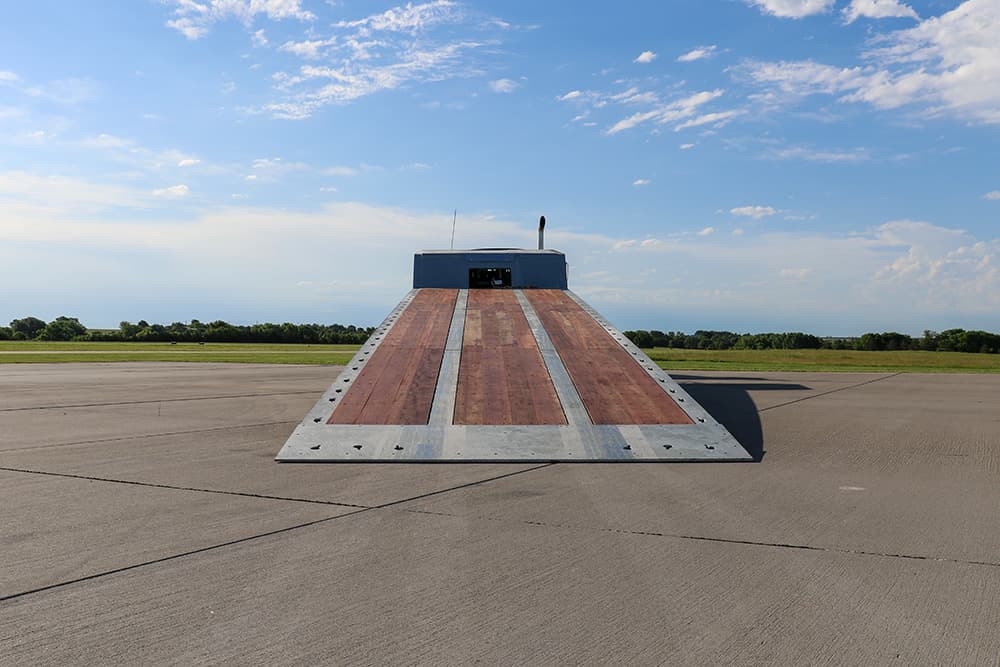

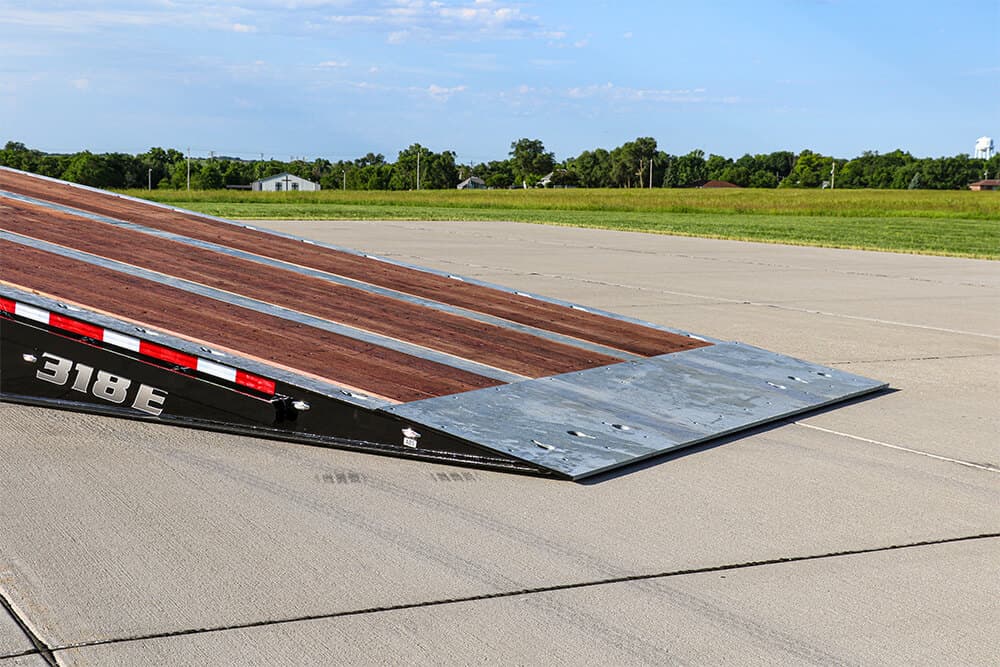

Approach PlateFlat Approach with (6) Keyhole Tie Downs

Undercarriage(1) 4″ x 126″ and (2) 4″ x 42″ Cylinders; Powder Coated Black

GreaseCentralized Grease System

Rims17.5×6.75 Tubeless Rims

Powder Coat ColorTGIC Polyester Powder Coat, White / Black / Yellow / Balboa Blue / Red / Viper Red / Green / Sapphire Blue / Metallic Gray

DecalsHi-Visibility Reflective Package

Toe Board3/8″ x 2-1/2″ on Lower Deck

Bulkhead16″ / 24″ 2 Position 48″ x 102″ Mesh

D-RingsFlush Mounted Recessed Mounted Bolt-On at Winch

ModelCapacity*

318E-4850 Ton

318E-5050 Ton

318E-50CA50 Ton

317E-5350 Ton

NoteAll Bulkhead options require the 48″ X 102″ Bulkhead Binder Storage Rack Aluminum Light Bar with Dual LED Work Lights, S/T/T Lights, Aluminum Chain / Binder Rack LED Work Lights Dual LED Strobe Beacons Spare Tire Carrier Suspension and Undercarriage Hydraulic Dock Leveler – 62,000 lb. Bluetooth Digital Scale System Air Dump Valve Parking Stands Pin Drop Hydraulic Ramps 5′ Aluminum Ramps-Portable (8,000 lb. Capacity) Tie Down D-Rings Flush Mounted Recessed Mounted Bolt-On at Winch Single Slot Ratchet Winch for 4″ Nylon Strap Winch and Accessories Winch 20K Winch – Slope Mounted (Braden) 12K, 20K, 30K Winch – Upper Deck Mounted (Braden, Warn, Ramsey Versions Available) Dual 20k or 30K Winch – Upper Deck Mounted (Warn) Winch Guard Work lights Cable Roller Guide (4-Way Rollers) Upper Deck Slope Wear Protection Slope Roller Wireless Remote Control Six Function Hydraulic Power Source Spare Hydraulic Quick Couplers (1 Male / 1 Female) Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with Cover Upper Deck Mounted Tires and Rims 17.5 Machined Aluminum Rim (Priced per Wheel) 17.5 Polished Aluminum Rim (Priced per Wheel) 17.5 Dura-Bright Aluminum Rim (Priced per Wheel) 22.5 Machined Aluminum Rim (Priced per Wheel) 22.5 Polished Aluminum Rim (Priced per Wheel) Black Steel and Aluminum Upon Request Tires 235/75R 17.5 Double Coin 255/70R 22.5 Double Coin 255/70R 22.5 Continental 255/70R 22.5 Michelin Spare Tires Available with Rim of Choice Hubodometer PSI Tire Inflation System Paint and Special Options Hot Dip Galvanizing Paint Over Galvanizing – Top Surface Only with Standard Colors Only Paint Over Galvanizing – Sides Only with Standard Colors Only Wet Paint Colors Black (Standard), Metallic Gray, White, Red, Viper Red, Green, Balboa Blue, Sapphire Blue, Yellow Special Paint: Contact Factory Galvanized Bumper Specifications Model Capacity* Base Weight Length Deck Axles Tires & Ply Rating 318E-48 50 Ton 20,700 lbs (+/- 3%) 37′ 102″ 3 (12) 235/75R 17.5 LRJ Double Coin 318E-50 50 Ton 21,800 lbs. (+/- 3%) 39′ 102″ 3 (12) 235/75R 17.5 LRJ Double Coin 318E-50CA 50 Ton 21,800 lbs. (+/- 3%) 41′ 102″ 3 (12) 235/75R 17.5 LRJ Double Coin 317E-53 50 Ton 22,610 lbs. (+/- 3%) 42′ 102″ 3 (12) 235/75R 17.5 LRJ Double Coin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.Specifications subject to change without notice. Line Drawing (PDF)GalleryLearn MoreView LiteraturePrint LiteratureFind a DealerContact Me800-428-5655 moc.llodnal@selasreliartQuentin2026-07-20T13:38:23-05:00

Load Angle8.5°

Gooseneck

Hitch2″ Kingpin

Running Gear

SuspensionSAF Air Ride RLU228, 22,500 lb. Capacity

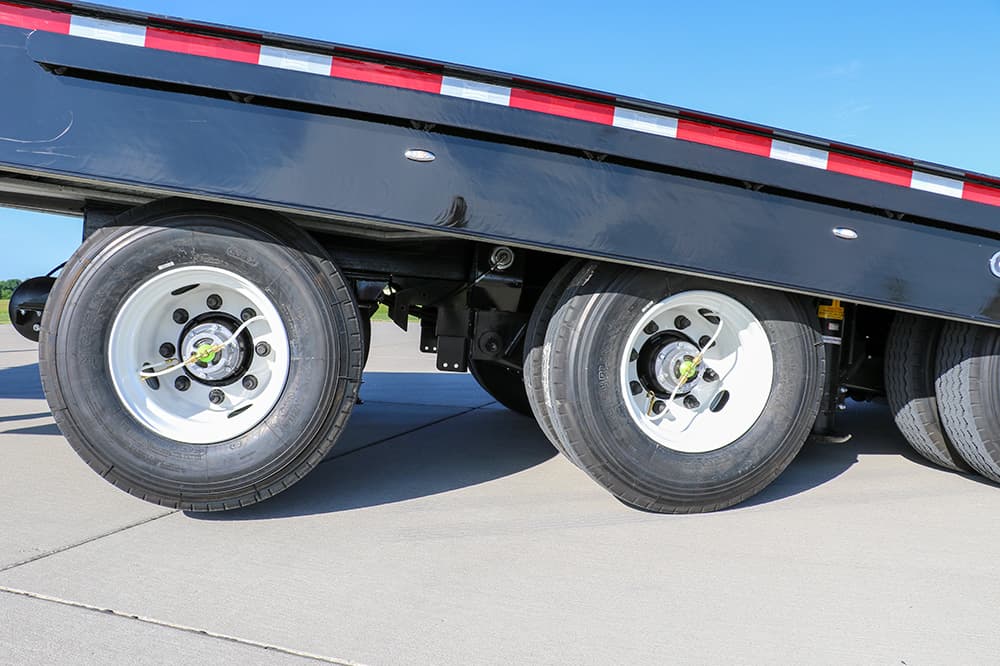

Axles(3) 25,000 lb. Axles, Dual Tire, Oil Bath Bearings, Automatic Slack Adjusters

Brakes12.25×7.5 Full Air / Spring Brakes, ABS 4S2M

Tires235/75R 17.5 LRJ Continental Tires

WheelsHub Pilot / Steel with Outboard Brake Drums

Hydraulics

Hydraulic Hook UpQuick Couplers 2,500 PSI – 20 GPM at Controls, 50 GPM Max

Tilt Cylinders(2) 4″ x 42″

Hydraulic Winch12,000 lb. Worm Gear with Spring Tension and 85′ of 1/2″ Cable

Hydraulic Valve BodyRexroth

Winch20K Winch – Slope Mounted (Braden) 12K, 20K, 30K Winch – Upper Deck Mounted (Braden, Warn, Ramsey Versions Available) Dual 20k or 30K Winch – Upper Deck Mounted (Warn)

Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with CoverUpper Deck Mounted

Electrical

Air / Electrical7-Way Receptacle

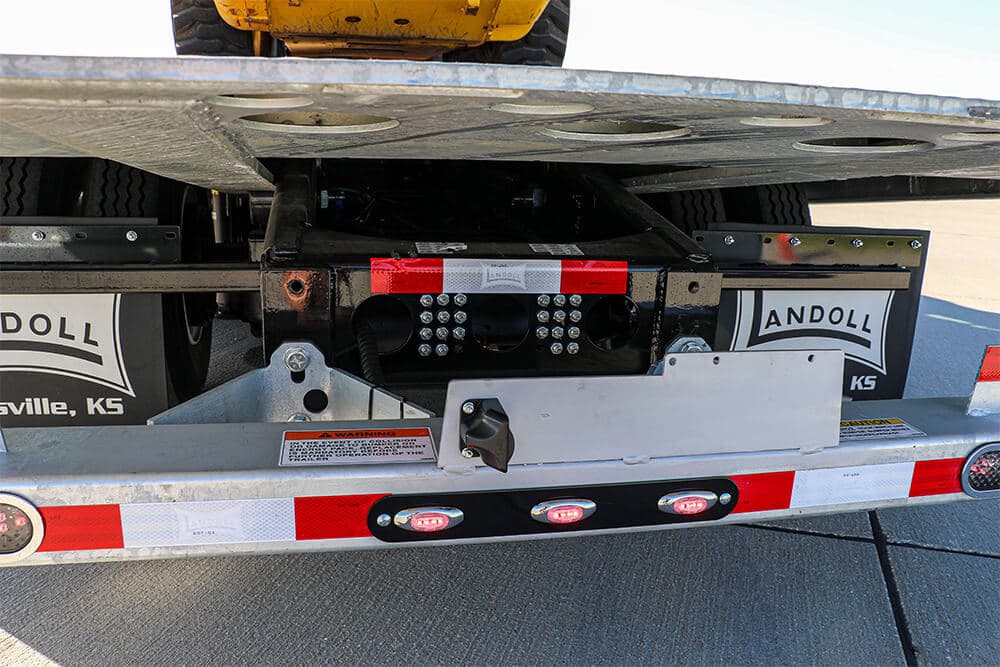

LightsIndustry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty)

Wiring HarnessIndustry Best Grote Xtreme Harnessing (7-year warranty)

Finish

FinishSteel Grit Shot Blast to Bright Metal

Wet Paint ColorsBlack (Standard), Metallic Gray, White, Red, Viper Red, Green, Balboa Blue, Sapphire Blue, Yellow

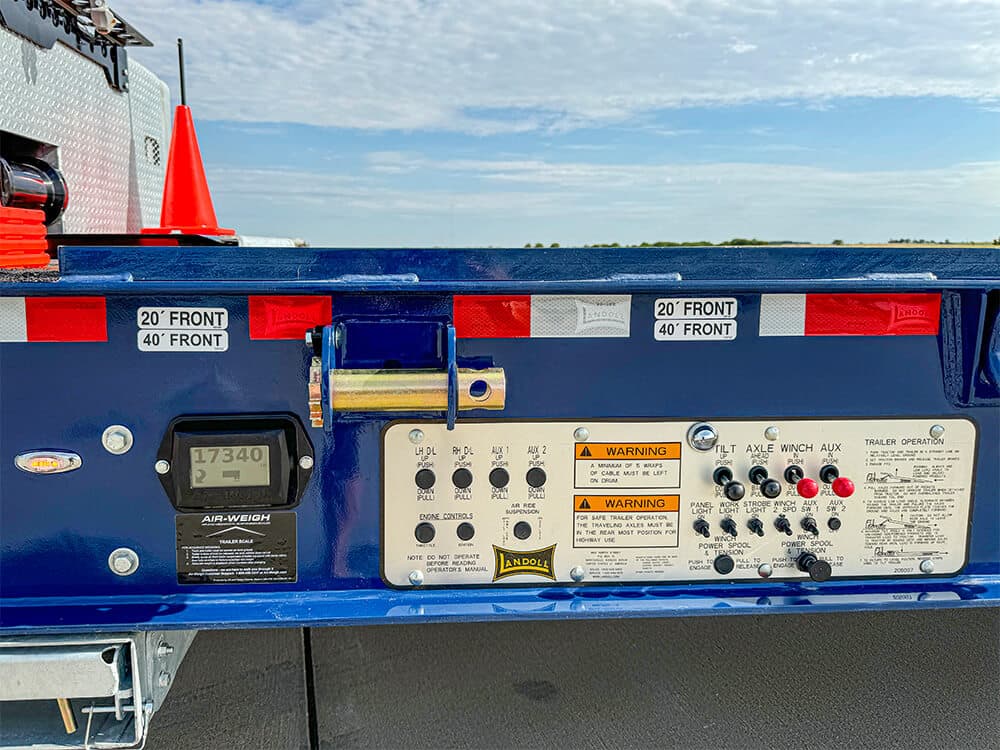

Controls

Wireless Remote ControlSix Function
