344 Traveling Axle Trailer

Features

Capacity

8 Ton

Deck Height

48"

Axles

2-Axle

Gooseneck

Fixed

About This Trailer

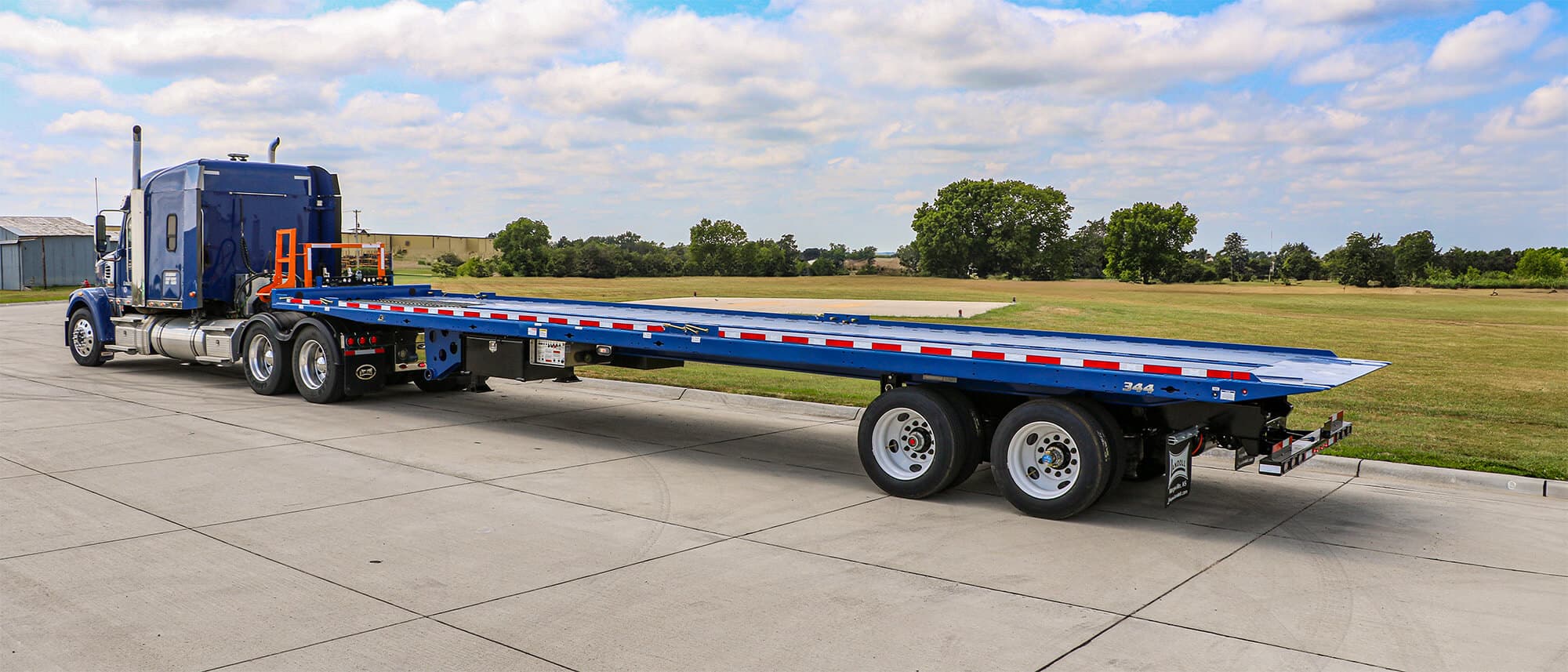

Landoll’s all-new 344 Traveling Axle Trailer builds on our experience in the storage container industry. With an increased capacity, this trailer can do more than just empty containers. The 344 is available in 43′, 46′, and 50′ lengths. The 43′ model can handle up to 45′ boxes and the 46′ model can handle up to 48′ boxes. If you have domestic 53′ high cube boxes in your fleet, then choose the 50′ model. Customize the trailer around your needs. A fifth wheel height of 45″ is required when hauling high-cube containers. The 344 includes a Chain Drive Load System, or a Winch System is available. Toe boards can be added with an inside position for guiding 96″ wide boxes or bolt-on outside guides can be optioned for 102″ high cube boxes. Each trailer comes with the Landoll Handling Package standard. Photos may show optional features. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. 800-428-5655 moc.llodnal@selasreliart

Full Specifications

Capacity
Capacity*15,000 lbs.
Estimated Base Weight17,000 lbs. +/- 3% (43′)

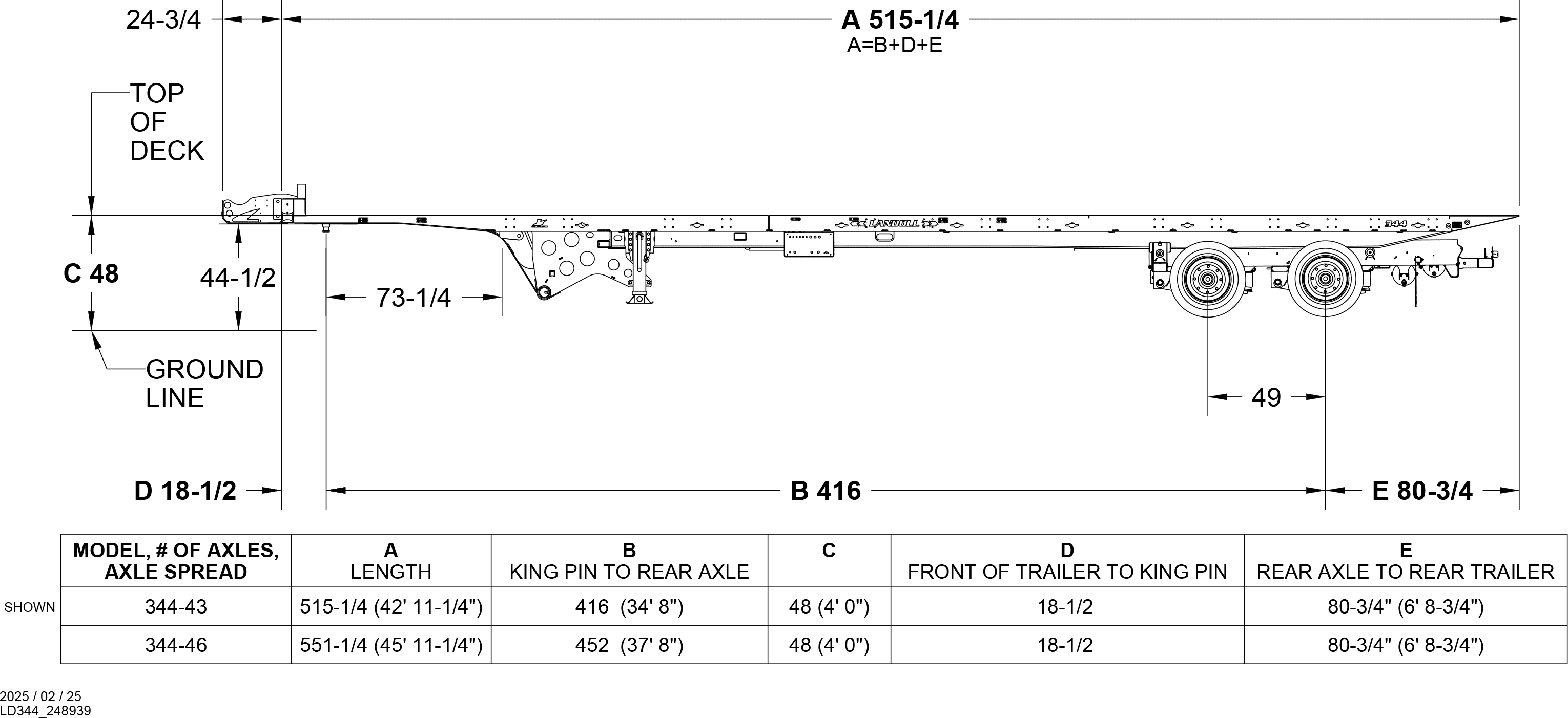

Dimensions
Deck Rating15,000 lbs. in 20′
Lengths43′, 46′, 50′
Deck Width102″
Deck Height (At Axle Location)48″ (45″ Fifth Wheel) ft

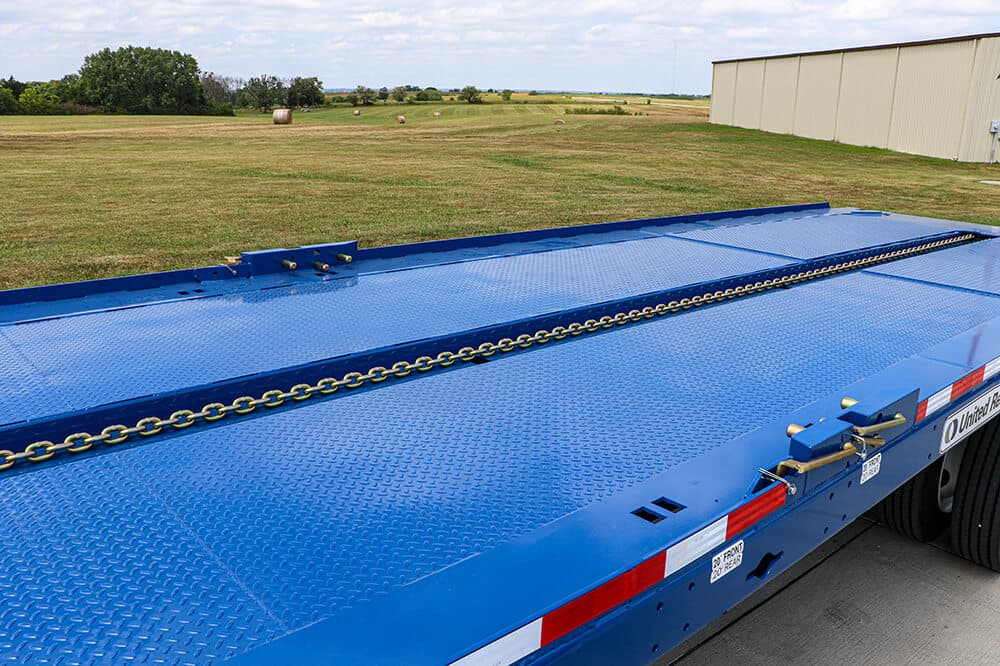

Decking1/8″ Steel Tread Plate, 11″ Recessed Trough – Full Length, Skid Plate 9.5″ Wide / Side Outer Frame 6-3/4″ Tall
Swing Clearance78″
Frame
Main FrameFabricated 80,000 PSI Yield Beams
General
Crossmembers12″ and 24″ Centers
Pin Setting18″
AccessoriesTraction Paint in Traffic Areas, Two-Stage Powder Coat Paint, 29″ Flat Approach Plate with (2) Keyhole Tie Downs, and Wireless Remote Control
Tie DownsTie Down Package in Skid Plate
GreaseCentralized Grease System

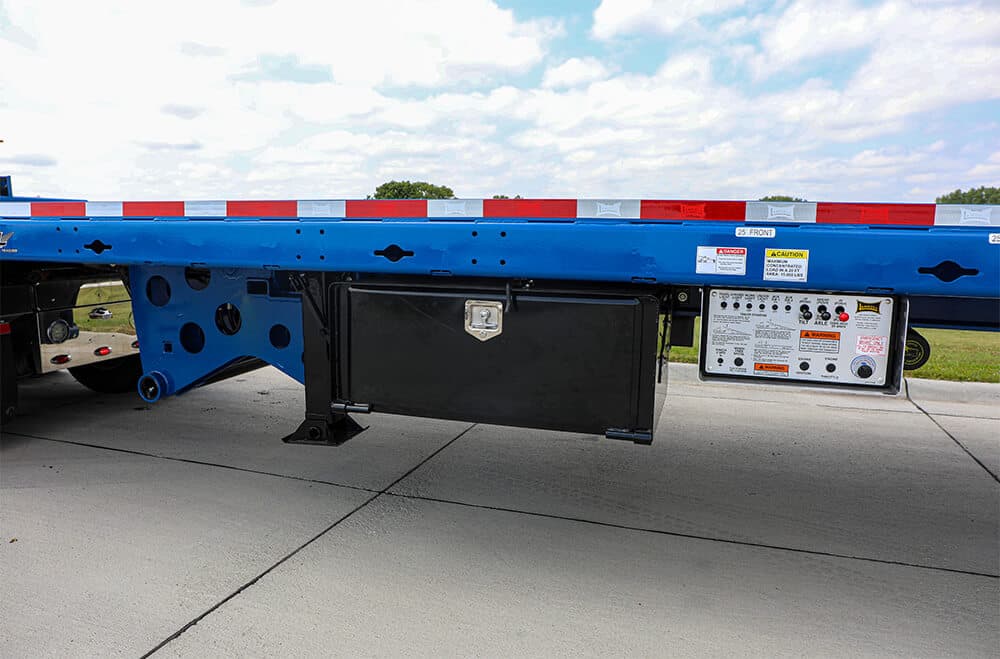

Lockable Storage Box(1) 42″ W x 28″ D x 9″ T, Under Deck Mounted
Gear Box Chain Drive Load SystemChain Drive Line Pull 12,000 lbs.

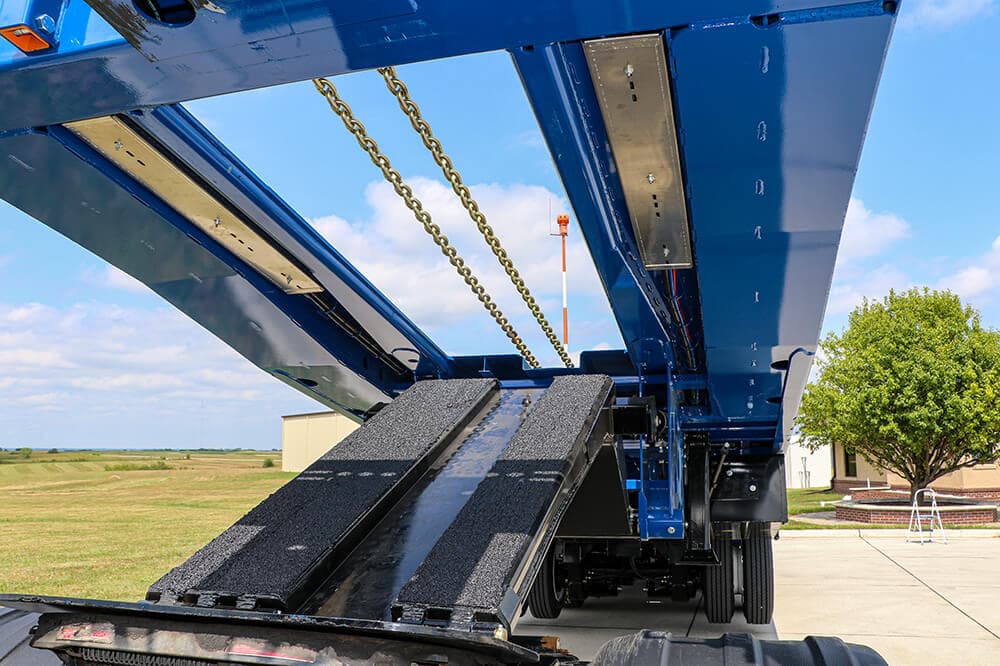

Chain Handling PackageFront Chain Bridle
Centering GuidesStandard

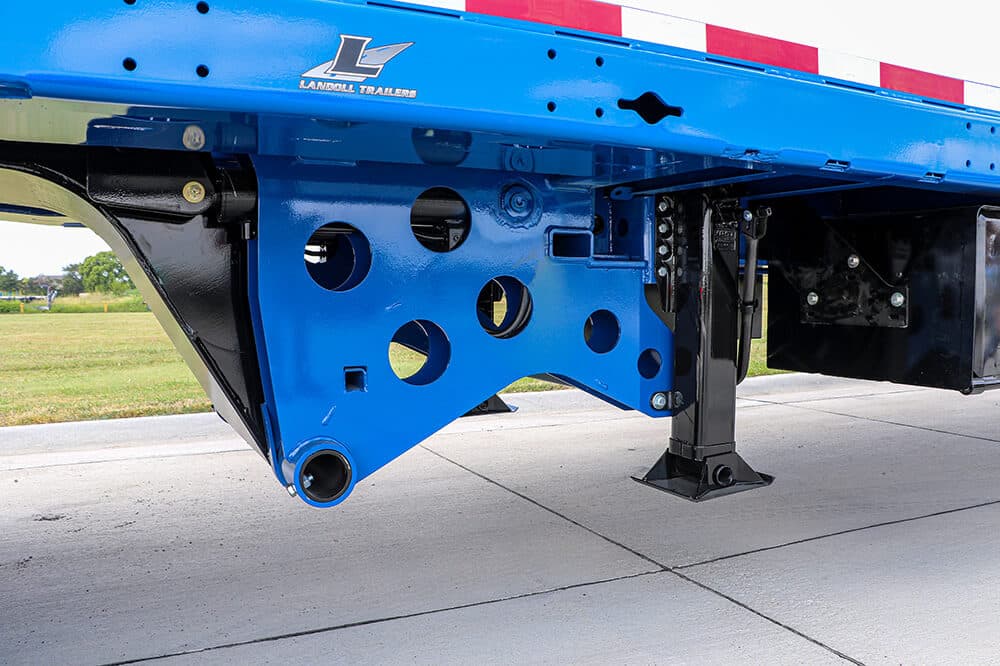

Parking StandsJost Two Speed

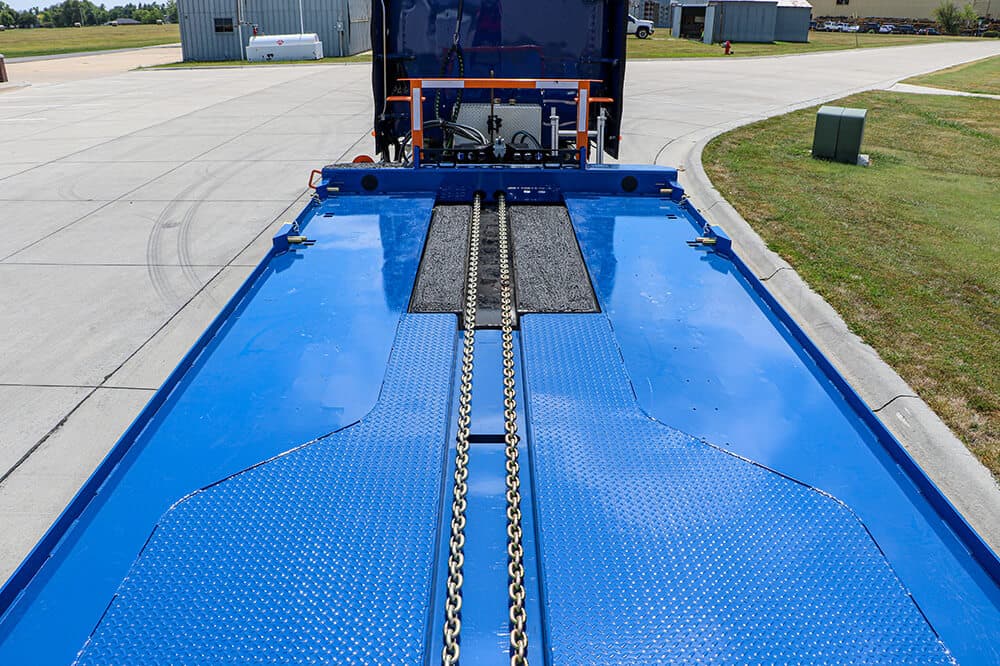

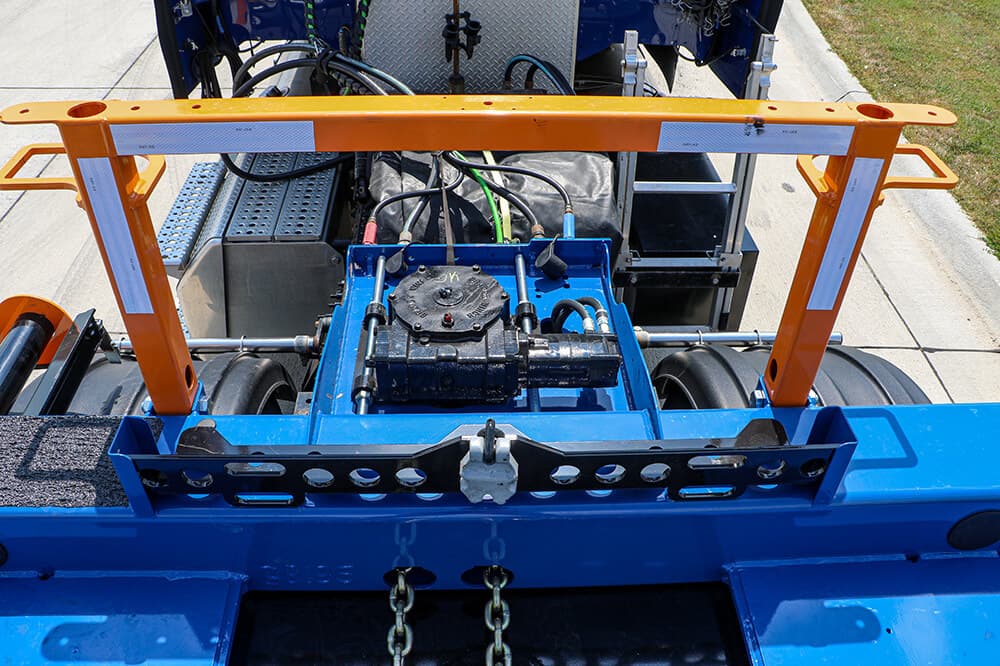

Loading SystemHydraulic Gear Box, 12,000 lbs., with Continuous Power Chain Drive Load System 1/2″ Chain
Powder Coat ColorWhite, Black, Yellow, Blue, Red, Green, Sapphire Blue, Dark Gray
ModelCapacity*
344-4315,000 lbs.
344-4615,000 lbs.
CertificationsCage Code — 65459; Small Business NAICS Codes — 336211, 336413, 333111, 333924, 336212 Copyright © 2026 Landoll Company, LLC. All Rights Reserved.
Loading

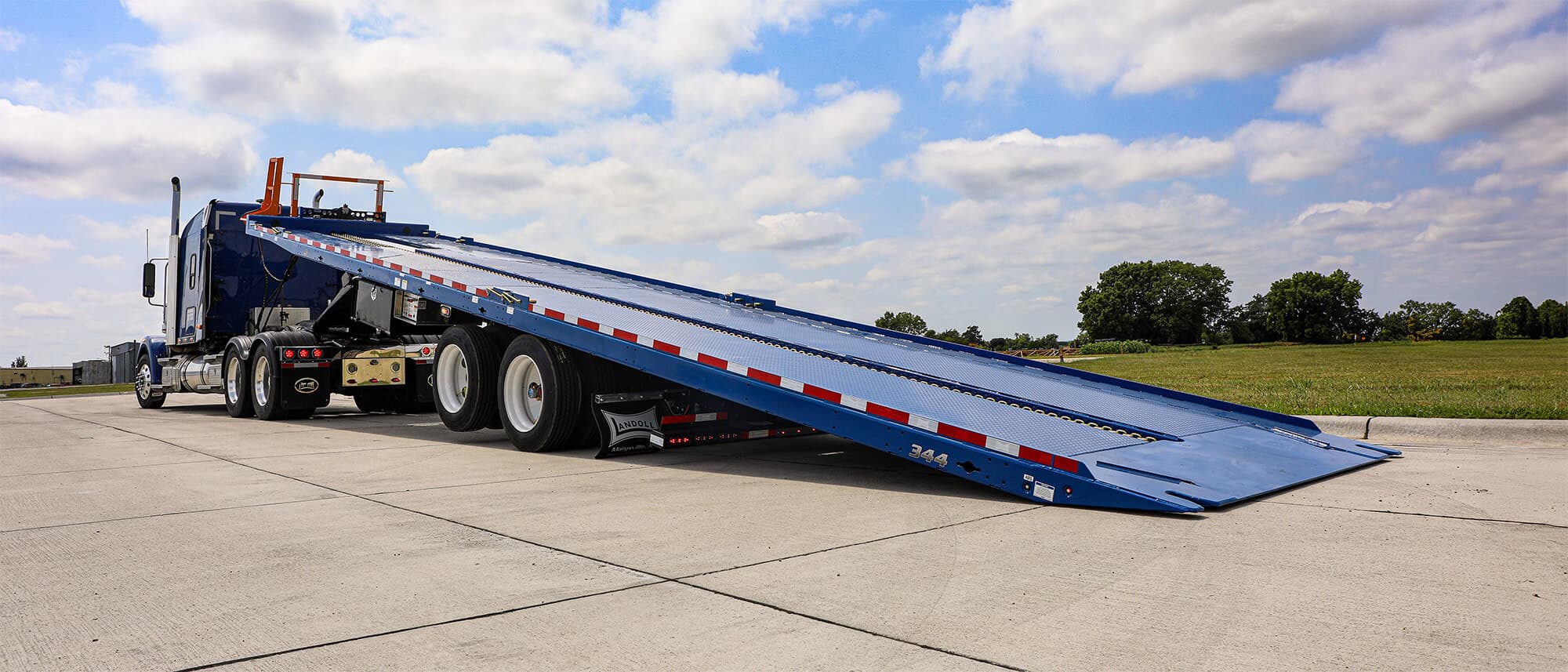

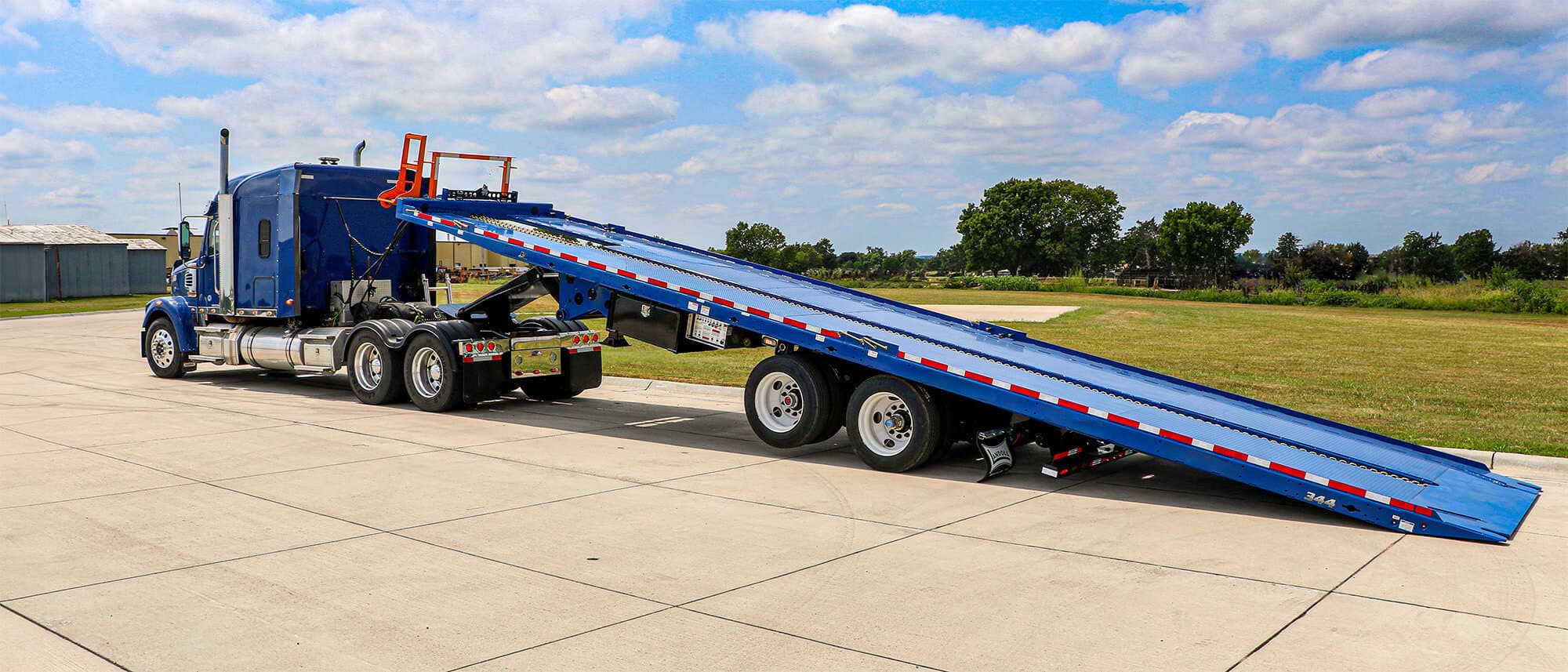

Load Angle12°
Running Gear

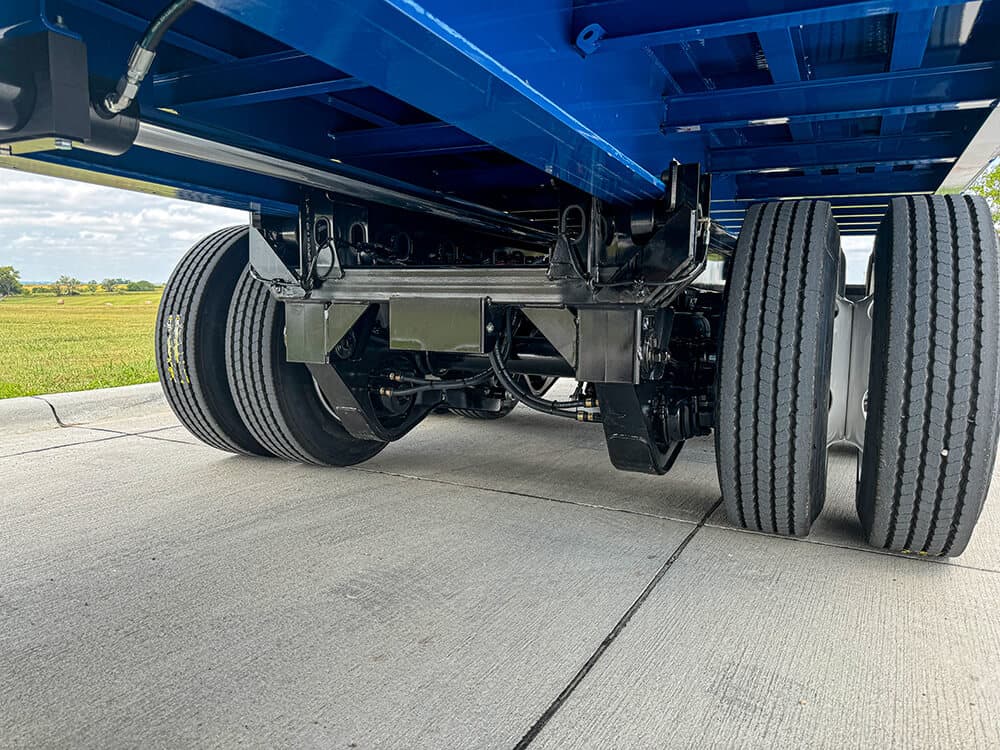

SuspensionAir Ride 22,500 lbs. Capacity
Axles25,000 lbs. Axles, Dual Tire, Oil Bath Bearings
Brakes16.5 x 7 Full Air / Spring Brakes, ABS 4S2M
Tires255/70R 22.5 LRH Continental
WheelsHub Pilot 22.5 x 8.25
Controls

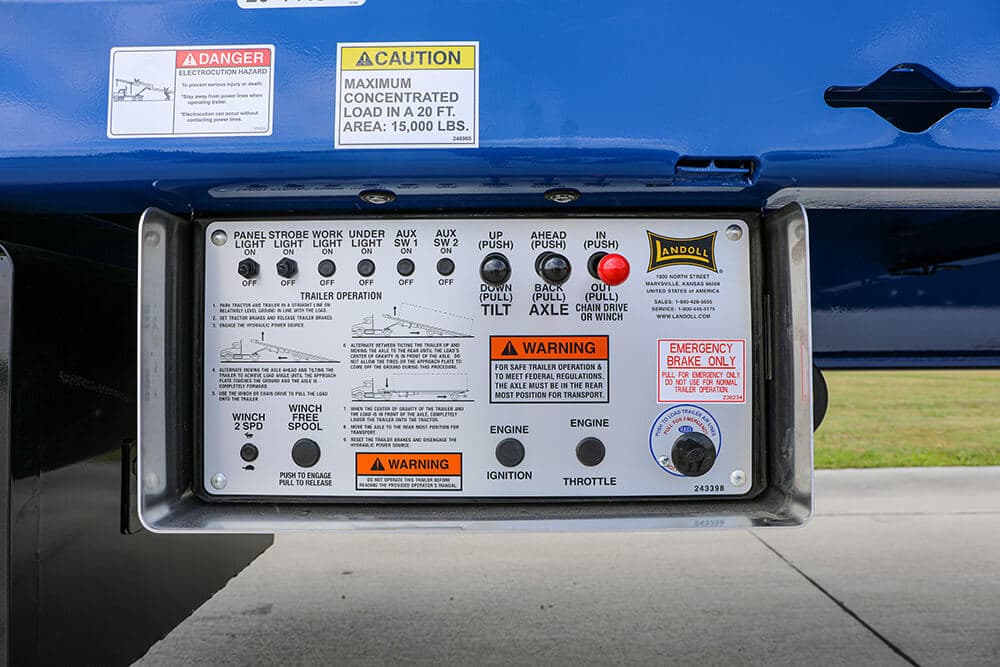

Wireless Remote-ControlStandard
Hydraulics
Hydraulic Hook Up3/4″ Flat-Faced ISO Quick Coupler
Hydraulic Valve BodyRexroth 2,500 PSI – 20 GPM at Controls, 50 GPM Max
Planetary Winch20,000 lbs.
Electrical
Air / Electrical7-Way Receptacle
LightsIndustry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty)
Wiring HarnessIndustry Best Grote Xtreme Harnessing (7-year warranty)
Finish
FinishTGIC Polyester Powder Coat
