845-AG Detachable Trailer

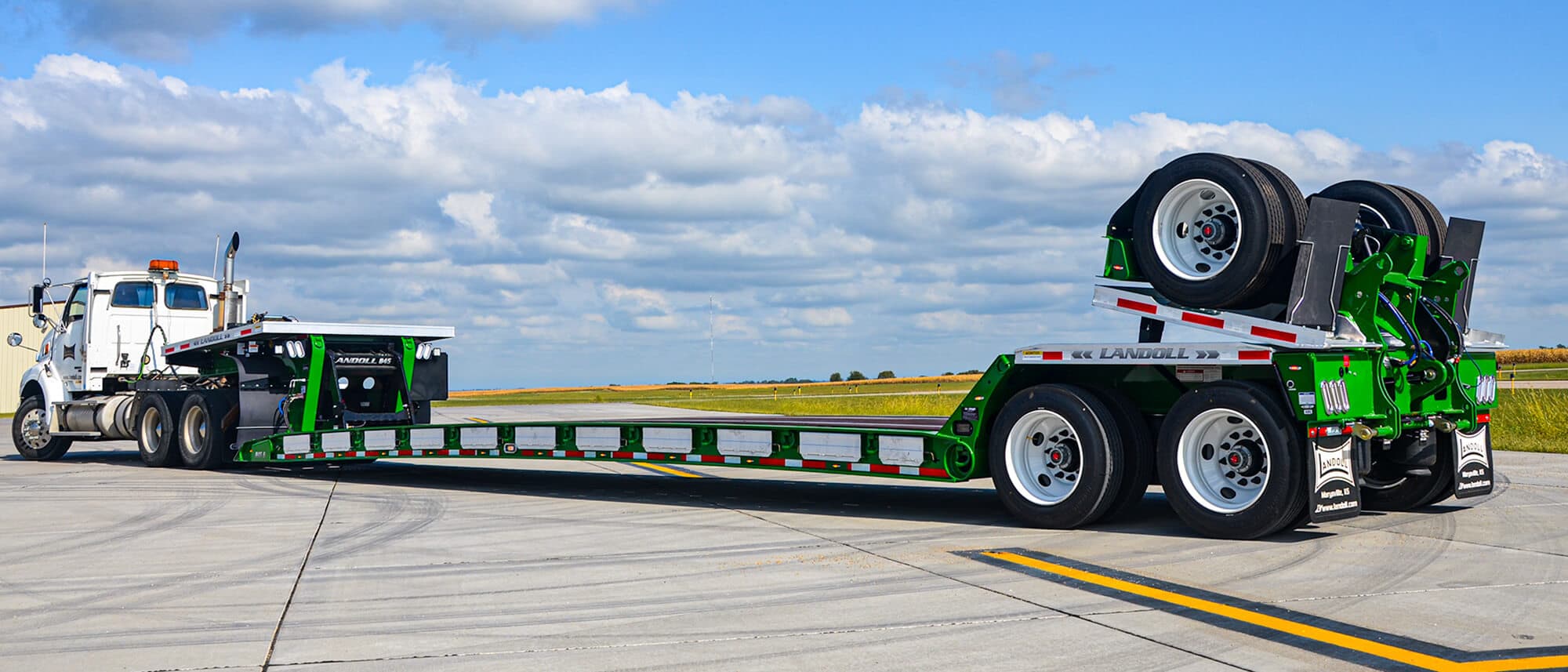

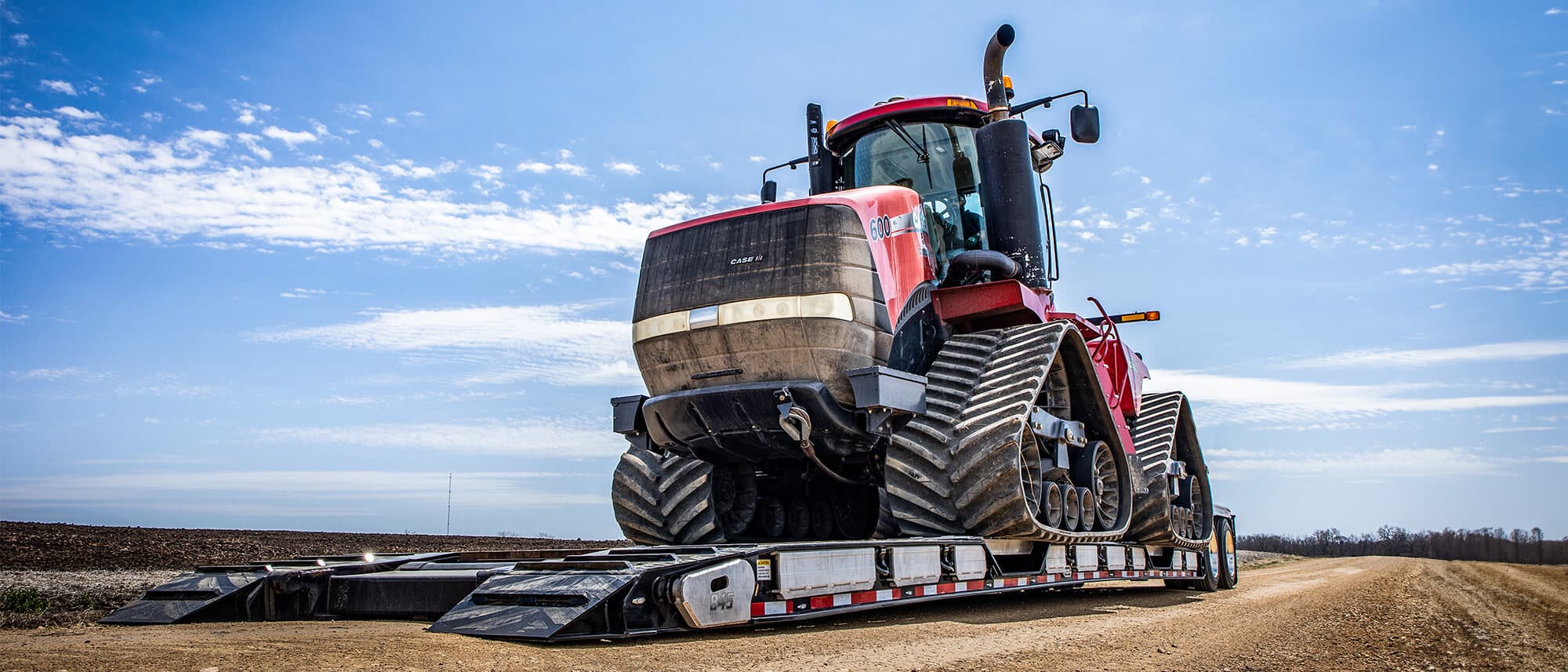

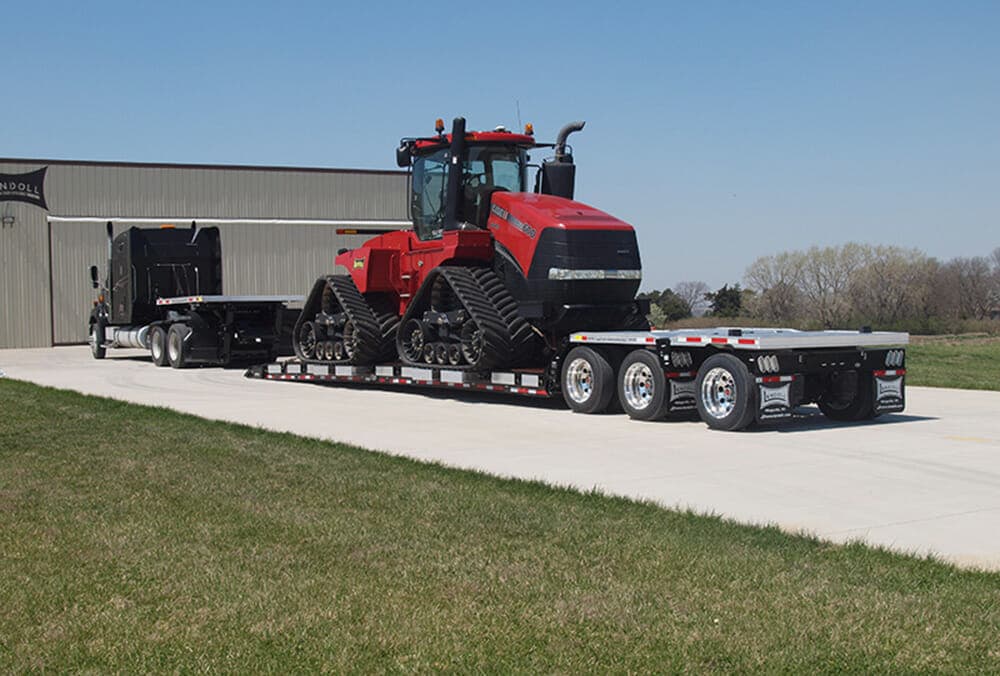

The new 845 Hauloll is designed to move today and tomorrow’s heaviest equipment. The 845’s 45-ton capacity is matched to handle even the heaviest of the field-ready tractors and choppers in production today. The heavy haul requirement was carefully considered during the product development of the 845 resulting in a trailer that comes standard with a Heavy-Duty Gooseneck with provisions for a 36” Flip extension. Most 2-axle base trailers run out of GVWR to legally permit many heavier loads. The Landoll 845 tops out at 116,500 lbs. / 51,076 KG GVWR allowing for a full 90,000 lbs. of payload. The trailer equipped with the gooseneck extension and the third flip axle will scale even the toughest ag tractors. Each state DOT controls the exact weights you can transport on their highways. The 845 is built for the heavy haul and it comes standard with REGEN-HOSS hydraulics, the new hydraulic-regeneration valve system with Rexroth valve rated at 2500 PSI and 20 GPM. That is a significant increase in hydraulic speed, decreasing the amount of time it takes to load equipment. The 845 capacity comes in at 45 tons (90,000 lbs. within 16’ and 80,000 lbs. within 12’) and a 19-1/4” loaded deck height keeps the center of gravity lower than most detachable trailers. This trailer is built with heavy haul aluminum pullouts that are 30% stronger than the 835 pullouts and extend out to 13’ wide in 6” increments. Pulled out to the proper width and planked, these over widths are designed to handle big wheel loader and some tracking equipment. Enlarged lift cylinders with a 150,000 lbs. lift capacity and gooseneck flip brackets for 36” flip overextension round out the heavy haul features on the 845. The heavy haul load carrier allows the driver to match the needed ground clearance in one of the 7-ride height positions to choose from. Electric and Air for 3rd Axle Flip, includes Frame Provision for Hydraulic Flip (Adds components for Rear Trunnion and Bumper) Hydraulic Flip Option Not Available on 845E-53HD-AG-S60 * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. Disclaimer: Landoll has a corporate policy of continuous product improvement and development, therefore, specifications are subject to change without any advance notice. Landoll is not responsible for differences between the specifications or illustrations contained on literature, data sheets, website and actual equipment. The information on any form of this website is intended only for the sole use of Landoll. We do not share or sell any of this information to third parties. This drawing and all information therein is property of Landoll and is confidential. It must not be made public or copied. This drawing is loaned subject to return upon demand and shall not be used directly or indirectly in anyway detrimental to our interest. Drawing illustrates standard equipment; optional equipment may change standard measurements. 800-428-5655 moc.llodnal@selasreliart
