850XT Detachable Trailer

850XT Series

Non-ground-bearing hydraulic detachable with 7 adjustable height positions

Capacity

50 Ton

Deck Height

22"

Axles

2-Axle

Gooseneck

Detachable

About This Trailer

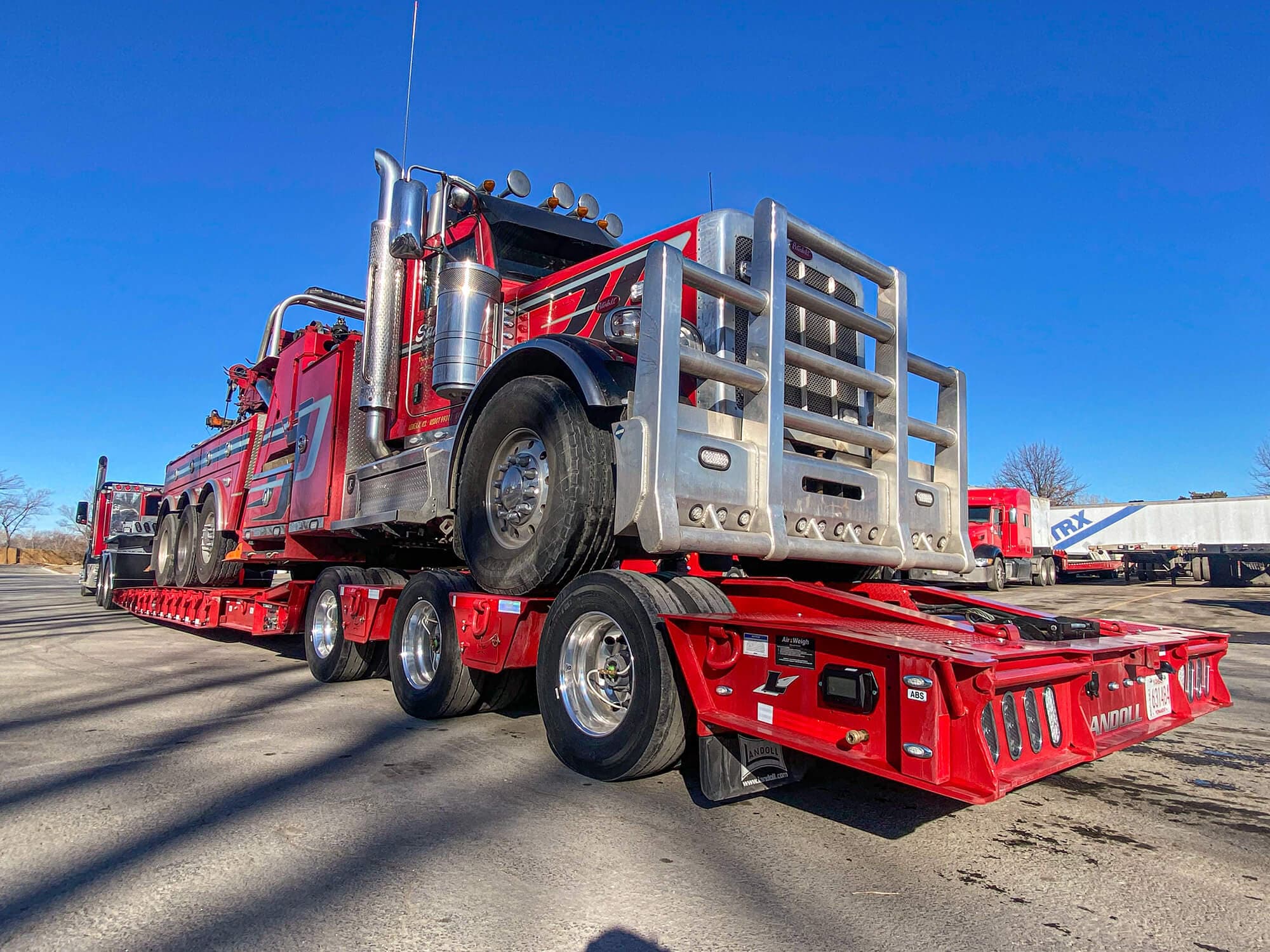

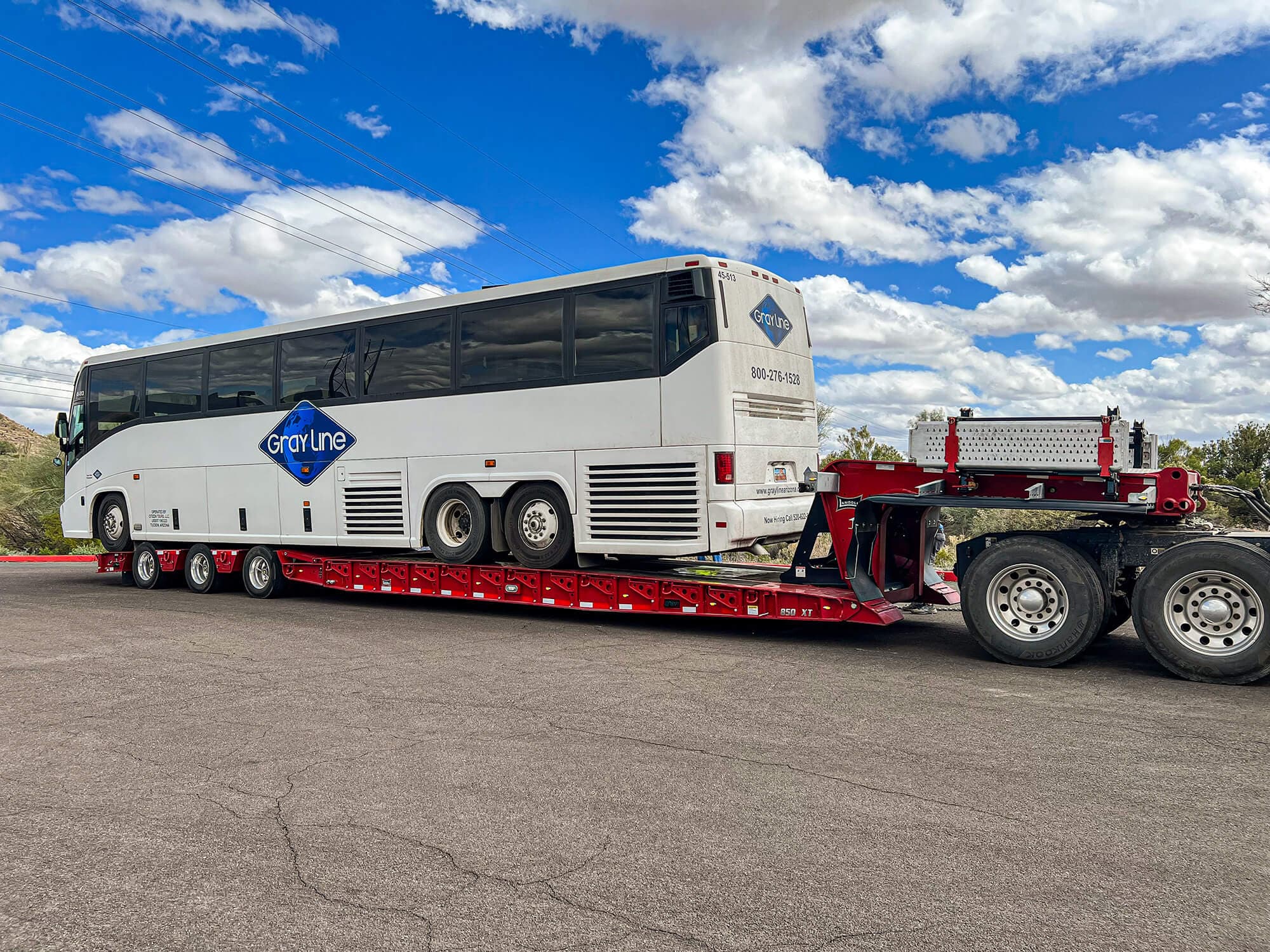

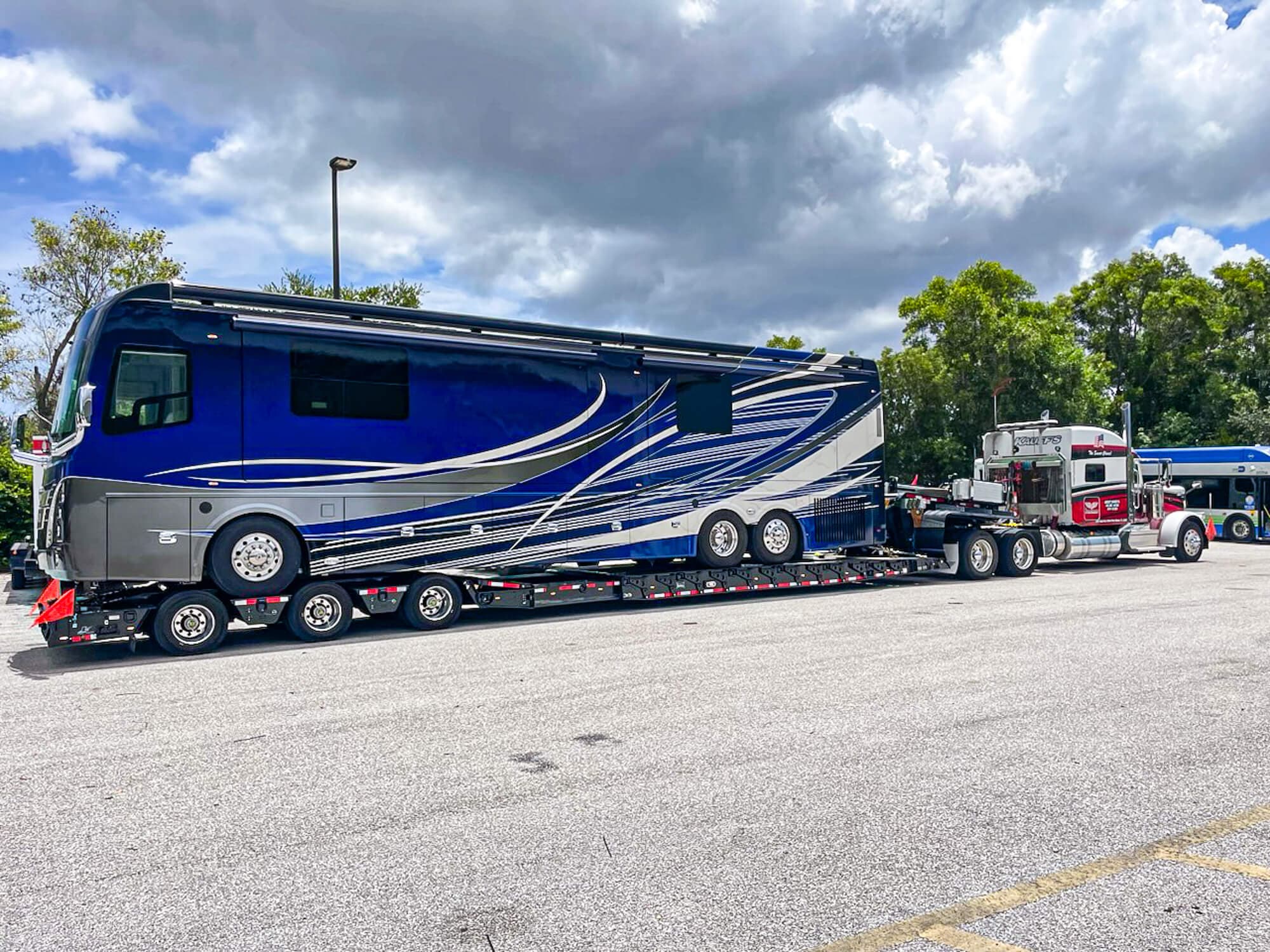

Staying true to what Landoll does, bringing maximum flexibility to our low deck height detachable series. The engineered extension beams create 4 different positions. The 850XT shares features from the current Landoll 800 series and provides loadable low deck height all the way to the rear bumper. Having ride height adjustments in the gooseneck and rear trunnion, provides much needed compliance on the job site. Staying with the industry’s easiest gooseneck attachment, getting those challenging loads doesn’t seem challenging anymore. Featuring the industry’s best load angles and frame clearances, the 850XT is up for the challenge. Engineered meticulously for low ground clearance loads, like buses, RV coaches, firetrucks, and more. Landoll is here to help you get the job done while others simply do not have the right tool for the job. Photos may show optional features. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. 800-428-5655 moc.llodnal@selasreliart

Full Specifications

General
Model OptionsStandard Length
48′48′
53′53′
Crossmembers6″ High Tensile I-Beams on 21″ Centers
Pin Setting15″ Pin Setting
AccessoriesArctic Components

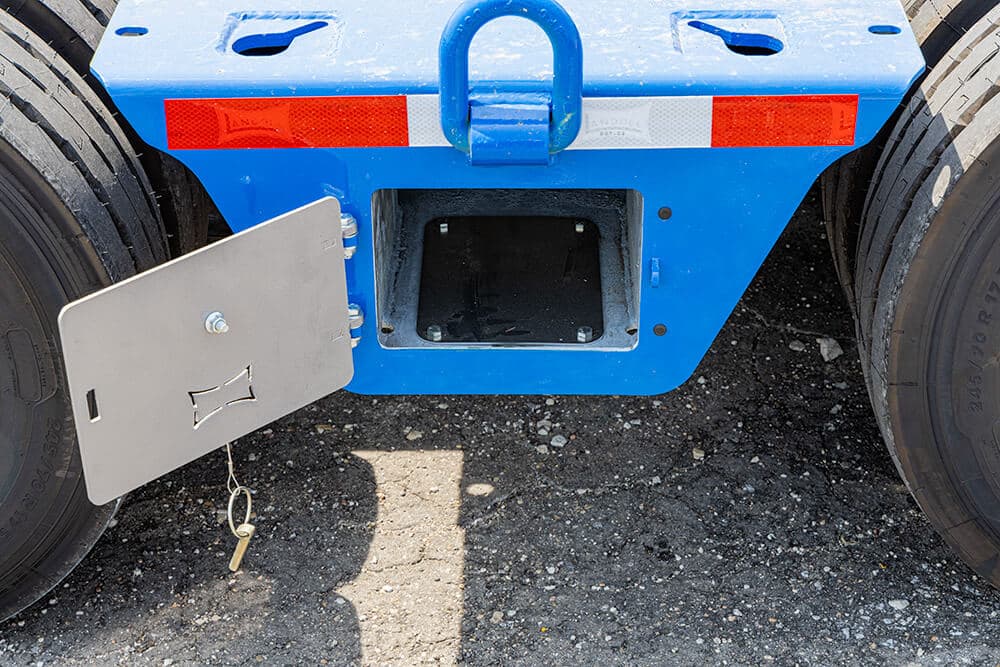

Storage Area1 – Located Rear of Lower Deck; 1 – Located Behind Rear Axle; Easy Access Side Door Storage in Bolsters; Chain and Block Box at Rear of Main Deck Between Main Beams

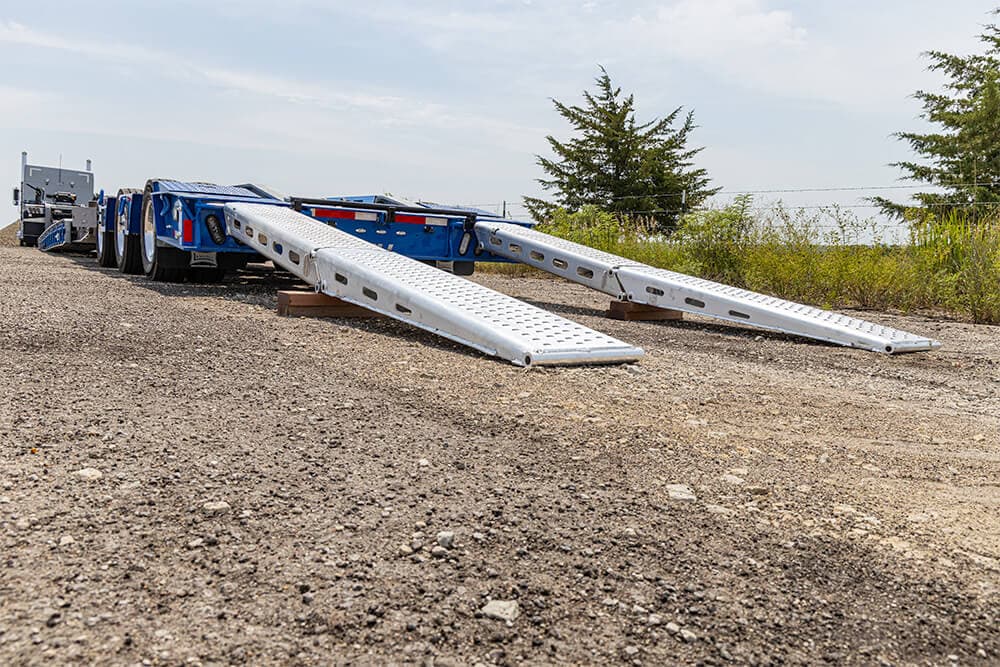

BolstersQuarter Front Bolster with Quick-Lift Drive Over Ramp; Weight Bearing Bolsters Between Axles with Storage
GreaseCentralized Grease System
Rims17.5 x 6.75 Tubeless
Outlet7 Prong Blade Electric Outlet at Rear for Accessory Lighting
PrimerZinc Rich Powder Primer
Powder CoatTGIC Polyester Powder Coat White, Black, Yellow, Blue, Red, Green, Sapphire Blue, Dark Gray
ModelCapacity*
850XT-48′50 Ton
850XT-53′50 Ton
CertificationsCage Code — 65459; Small Business NAICS Codes — 336211, 336413, 333111, 333924, 336212 Copyright © 2026 Landoll Company, LLC. All Rights Reserved.
Capacity
Capacity*50 Ton (100,000 lbs.) (Capacity Reduces During Extending)
Estimated Base Weight53′ – 24,000 lbs.(+/-3%)
Rated Capacity50 tons (100,000 lbs) over 16' span
Height Positions7 adjustable height positions
Dimensions
Deck Rating100,000 lbs. in 16′
Swing Clearance84″ Swing Clearance
Deck Width102″
Loaded Deck Height22″
Loaded Ground Clearance6″

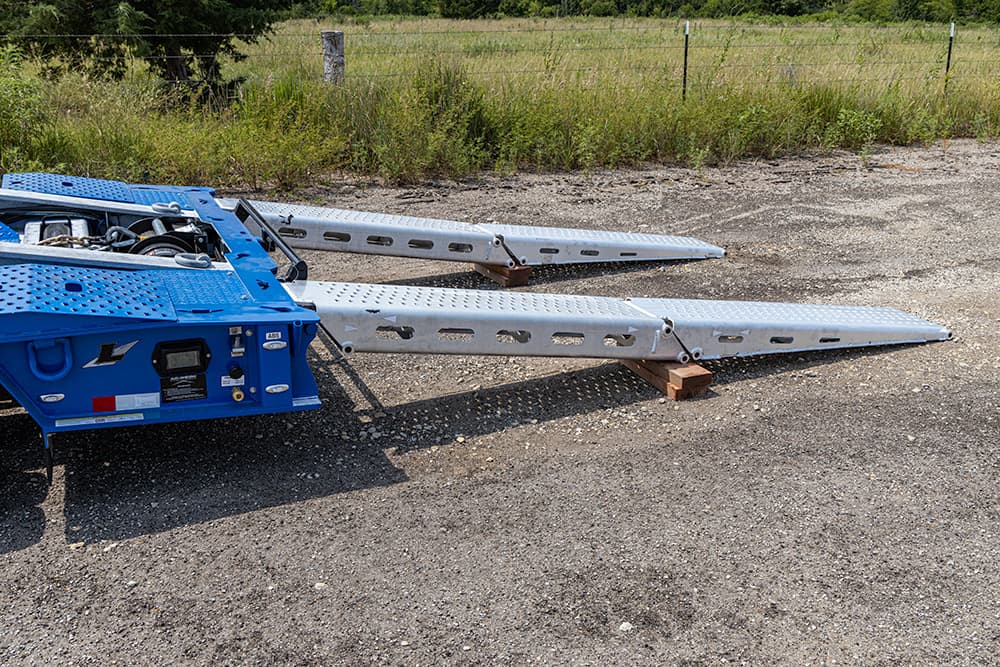

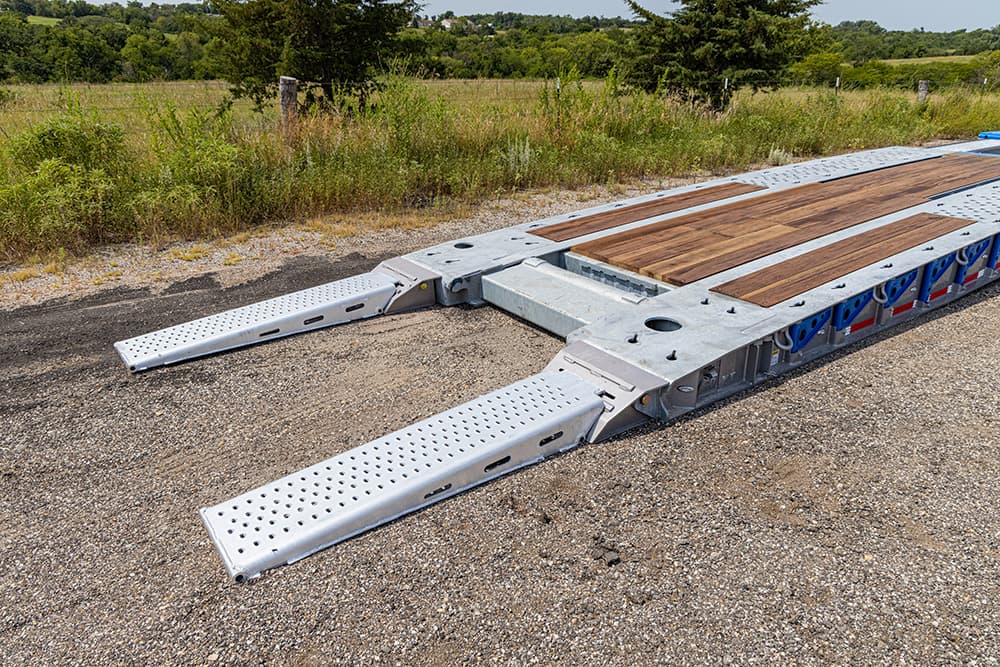

Decking42″ Deck Behind Rear Axle With Loading Angle and Boom Through

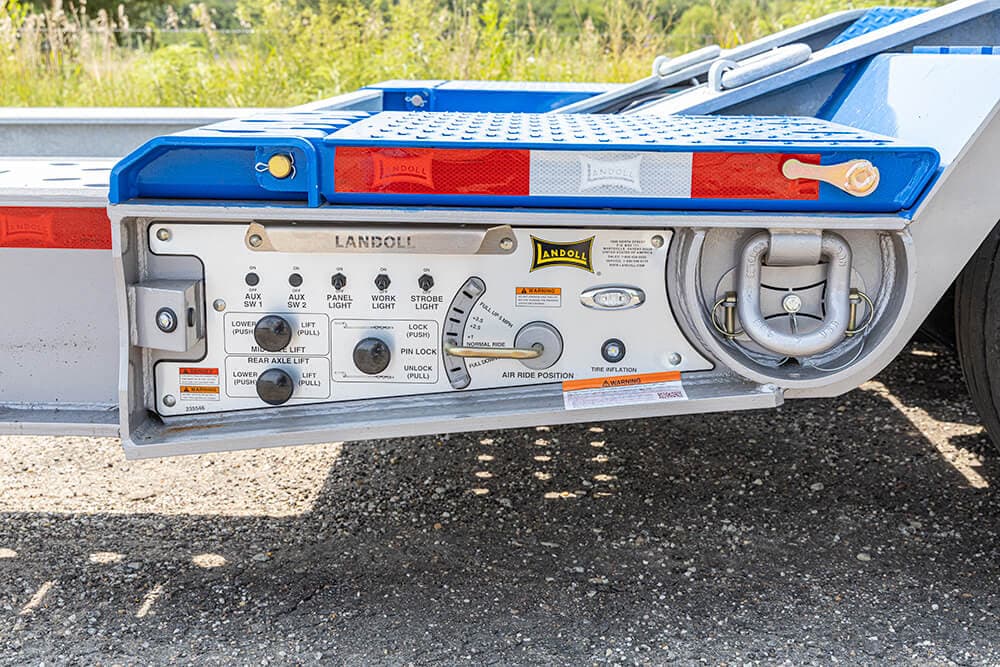

Height AdjustmentAir Raise and Lowering Valve with Quick Dump
Deck Height22" in
Ground Clearance6" in

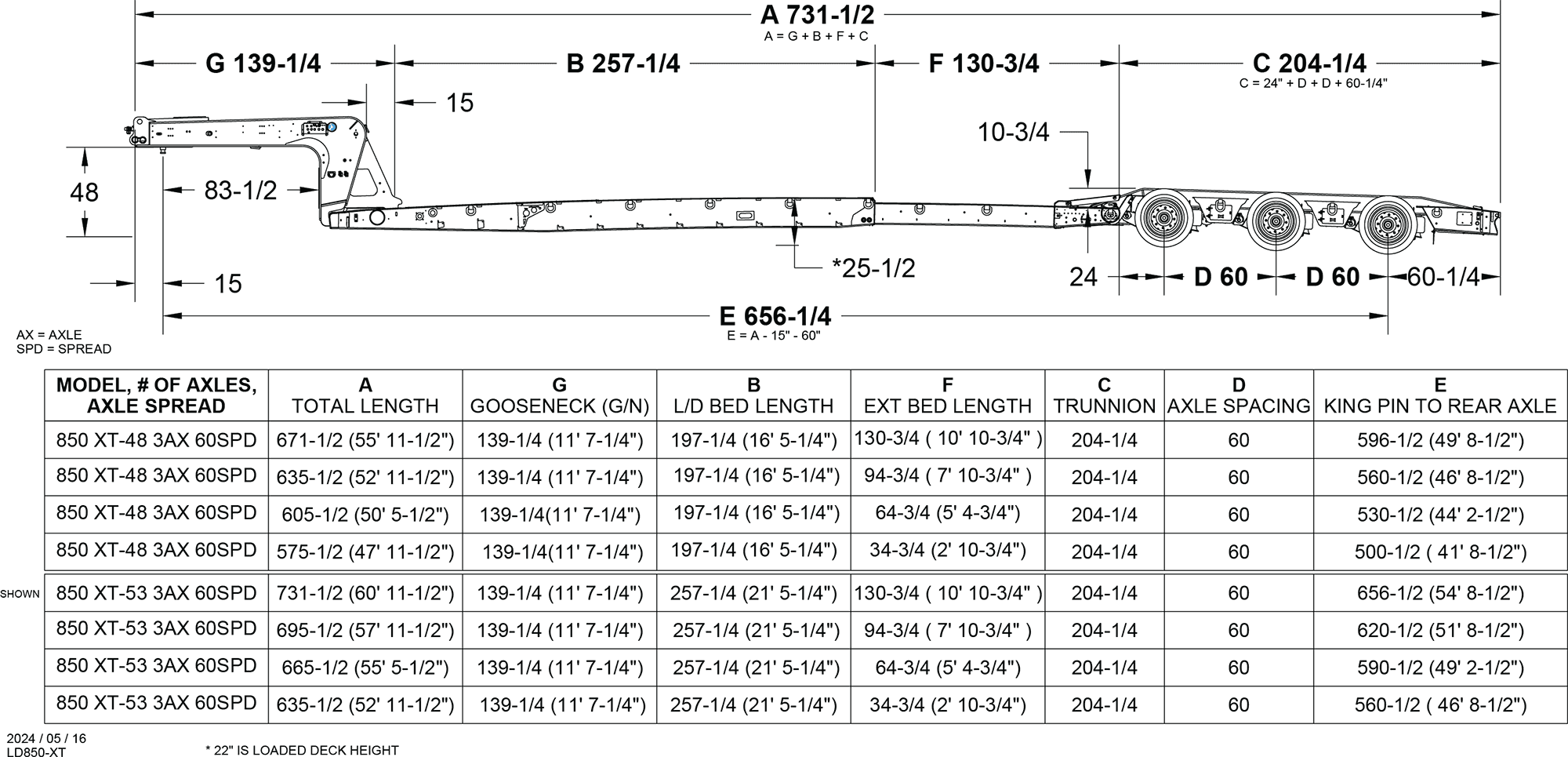

Standard Lengths48' / 53' ft
Extended Lengths48'/50.5'/53'/56' and 53'/55.5'/58'/61' ft
Frame
Main FrameFabricated Box Beam, 100,000 Yield PSI Flange
Gooseneck
Gooseneck12″ Outriggers for 24′ Main Deck
Hitch2″ Hitch Receiver with Electrical Outlet for Accessory Lights
Gooseneck TypeNon-ground-bearing hydraulic detachable
Running Gear
SuspensionDEXTER Air Ride Suspension with 25,000 lbs Capacity Axles
Axles3 – 25,000 lbs. Dual Tire, Oil Bath Bearings; 60″ Axle Spacing, Automatic Slack Adjusters – All Axles, Drum Brakes
Brakes12.25 x 7.5 Full Air with Spring Brakes ABS, 4S2M
Tires235/75R17.5 Continental
Rear AxleAir-lift rear axle
Hydraulics
Hydraulic Hook UpQuick Couplers 2500 PSI/20 GPM @ Controls; 50 GPM Max

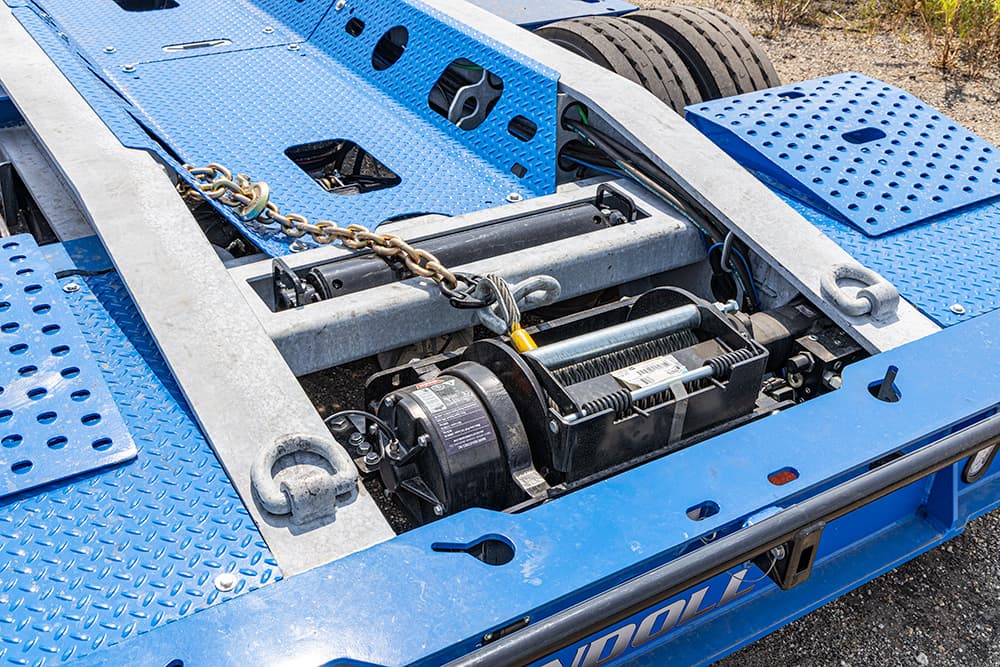

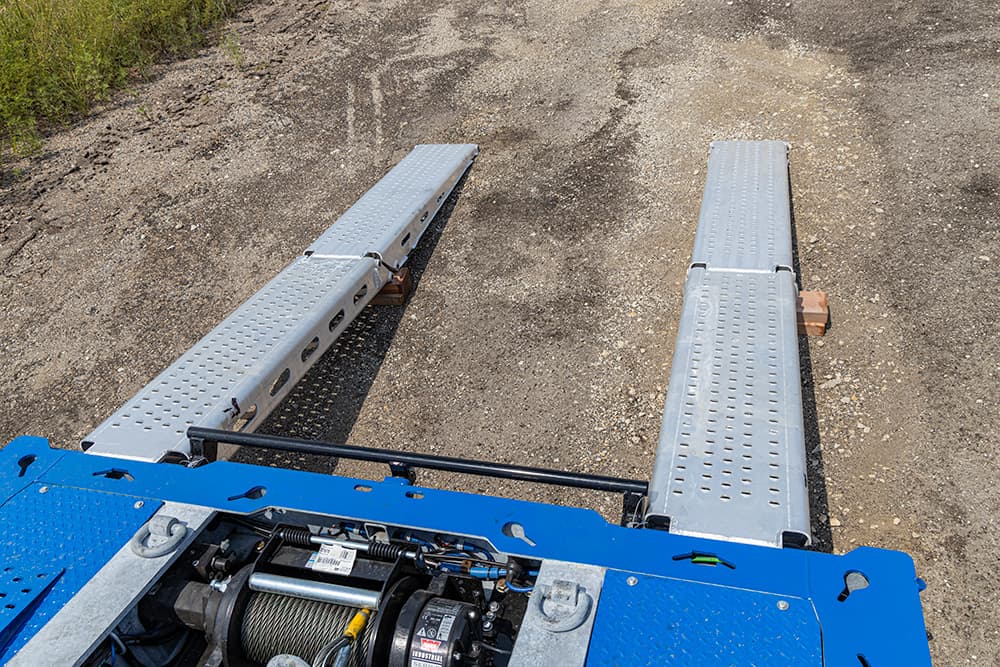

Winch20,000 lb winch lbs
Electrical
LightsIndustry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty)
Wiring HarnessIndustry Best Grote Xtreme Harnessing (7-year warranty)
Finish
Finish400 Degree Bake/Steel Grit Shot Blast to Bright Metal
