950 Traveling Tail Trailer

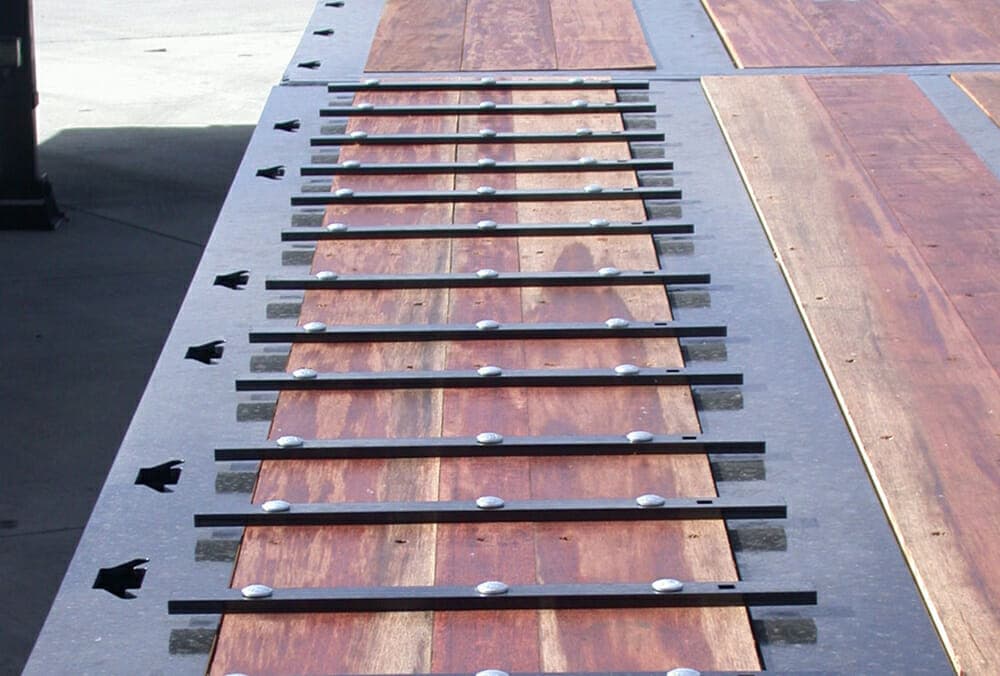

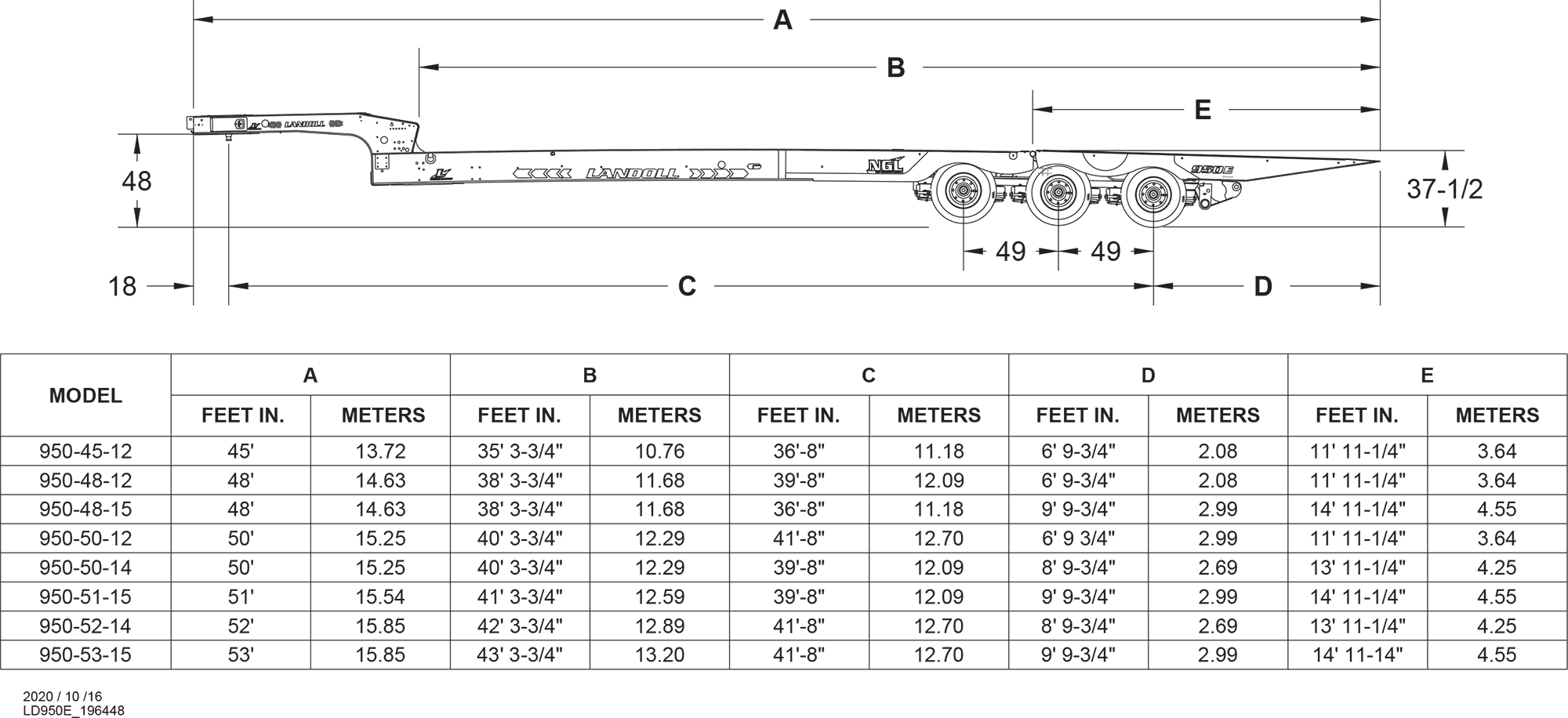

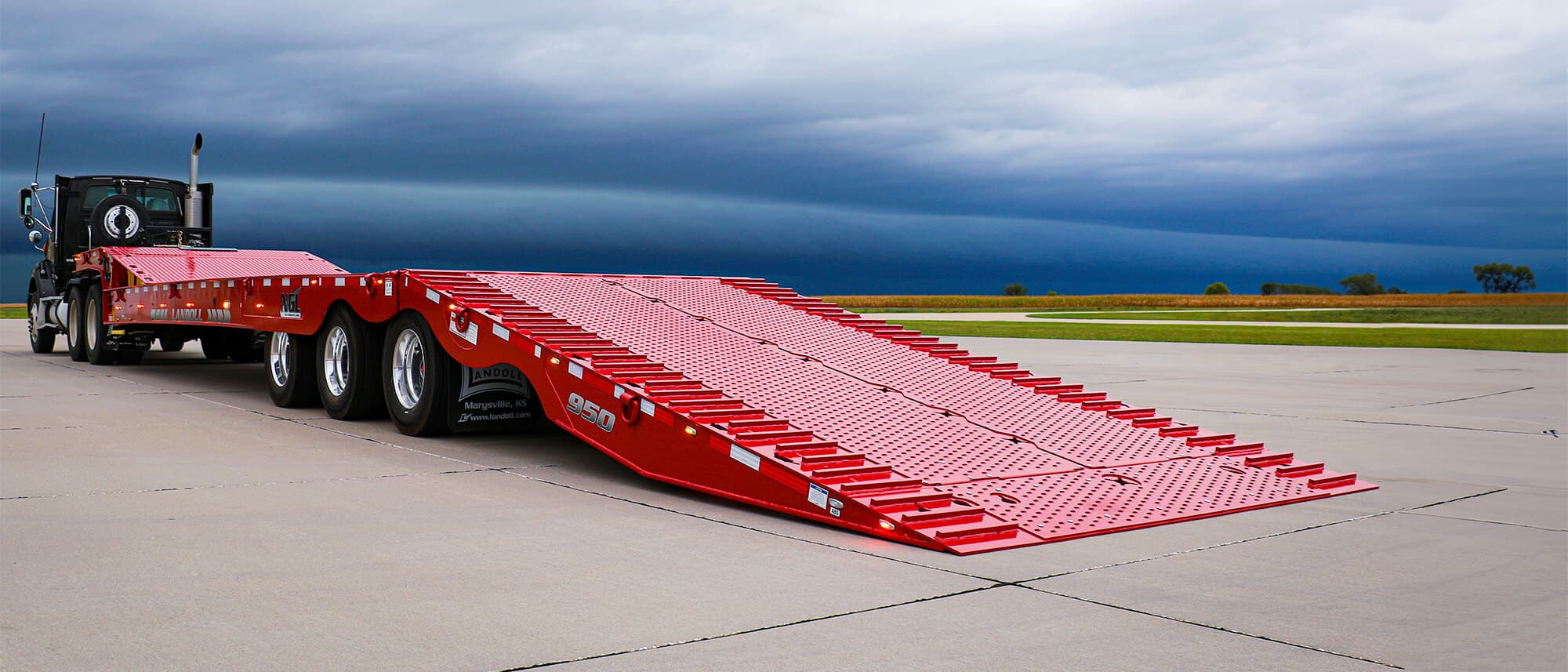

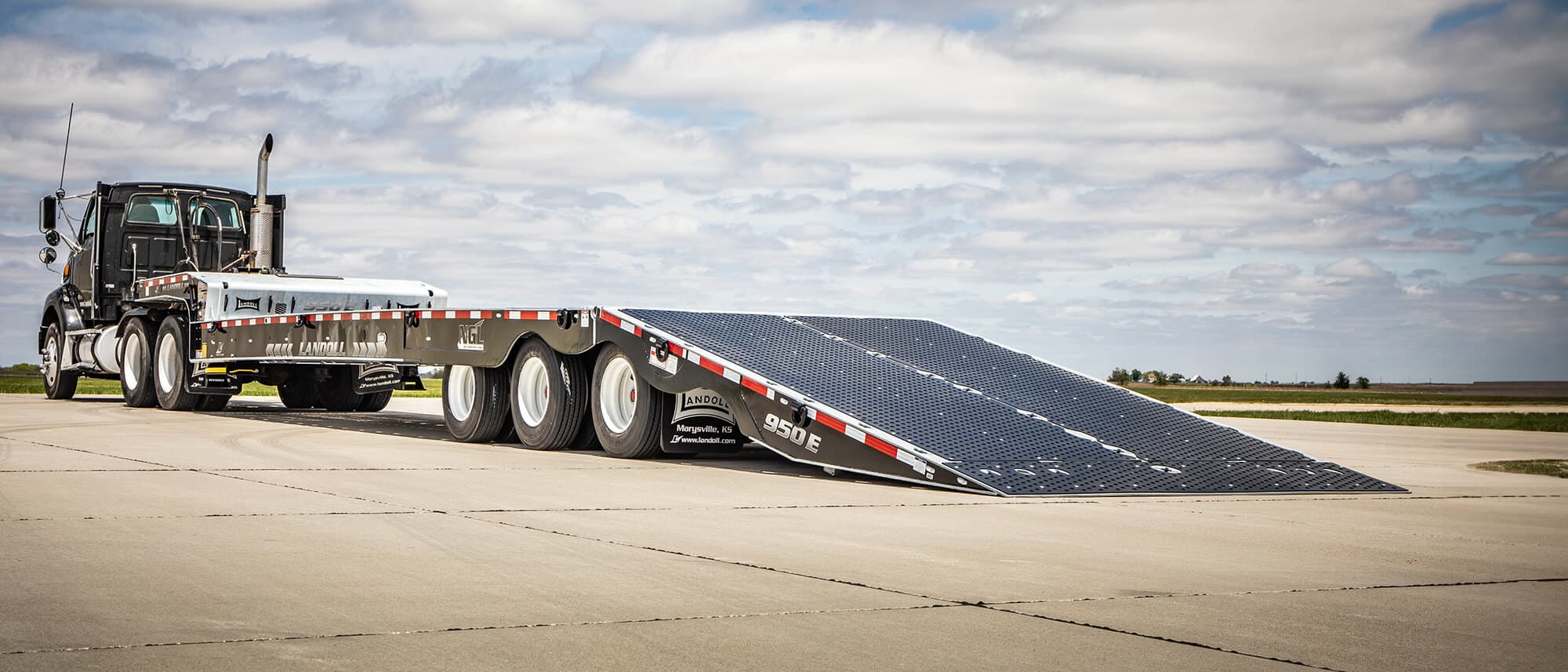

The 950 Traveling Tail Trailer has 50-ton capacity and three 25,000 lbs axles. It offers tail lengths of 12′ and 15′, and overall lengths of 45′, 48′ and 51′. It includes the same rugged four beam construction and other outstanding features of the 900 Series – standard powder coat paint, stable rigid dock arm, 24,000 lbs tail-lifting capacity and a centralized grease system. Landoll is the only trailer manufacturer to offer powder coat paint on large trailer frames. Quick, simple, safe operation and a longer wheelbase that increases payload. A 15′ tail reduces the load angle to a low 11°. Frames are steel shot blasted in preparation for the TGIC polyester powder coat paint finish standard on 900 E-Series trailers. The tail can raise and lift 24,000 lbs up to 57″ dock height. The 900 Series trailers are backed by a 5-year structural warranty. The low-load tail angle ensures easy clearance for loading low-sitting equipment, providing seamless loading capabilities. The hydraulic control allows for efficient and convenient loading and unloading operations, all managed through a single control point. Apitong Wood Covered Tail Square Stake Pockets on 16″ Centers (6) Double Keyhole Chain Slots on Tail (2) D-Rings Lower Slope at Deck Center Deck Keyholes on Tail * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Automatic Slack Adjusters Side Opening Toolboxes Lower Deck Bolt-On Lockable Toolbox 245/70R 17.5 Michelin X Multi T LRH 255/70R 22.5 Double Coin 255/70R 22.5 Michelin (Standard Colors Only) * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. Disclaimer: Landoll has a corporate policy of continuous product improvement and development, therefore, specifications are subject to change without any advance notice. Landoll is not responsible for differences between the specifications or illustrations contained on literature, data sheets, website and actual equipment. The information on any form of this website is intended only for the sole use of Landoll. We do not share or sell any of this information to third parties. This drawing and all information therein is property of Landoll and is confidential. It must not be made public or copied. This drawing is loaned subject to return upon demand and shall not be used directly or indirectly in anyway detrimental to our interest. Drawing illustrates standard equipment; optional equipment may change standard measurements. 800-428-5655 moc.llodnal@selasreliart
