Landoll Trailers

Loadoll II Rollback Carrier

Name: Landoll Trailers Loadoll II Rollback Carrier
Brand: Landoll Trailers

Features

Capacity

10 Ton

Deck Height

10"

Axles

2-Axle

Find Used Loadoll II Rollback Carrier For Sale View on Landoll Trailers Website

About This Trailer

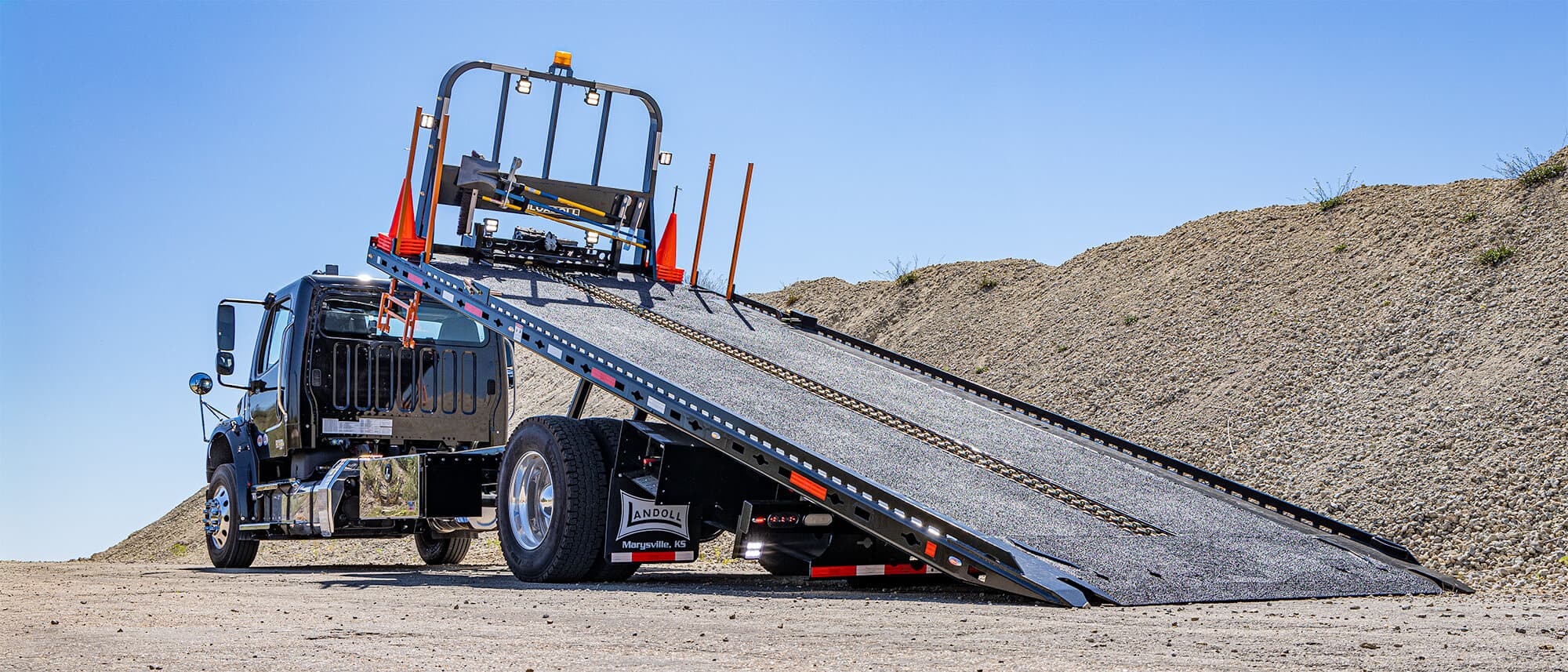

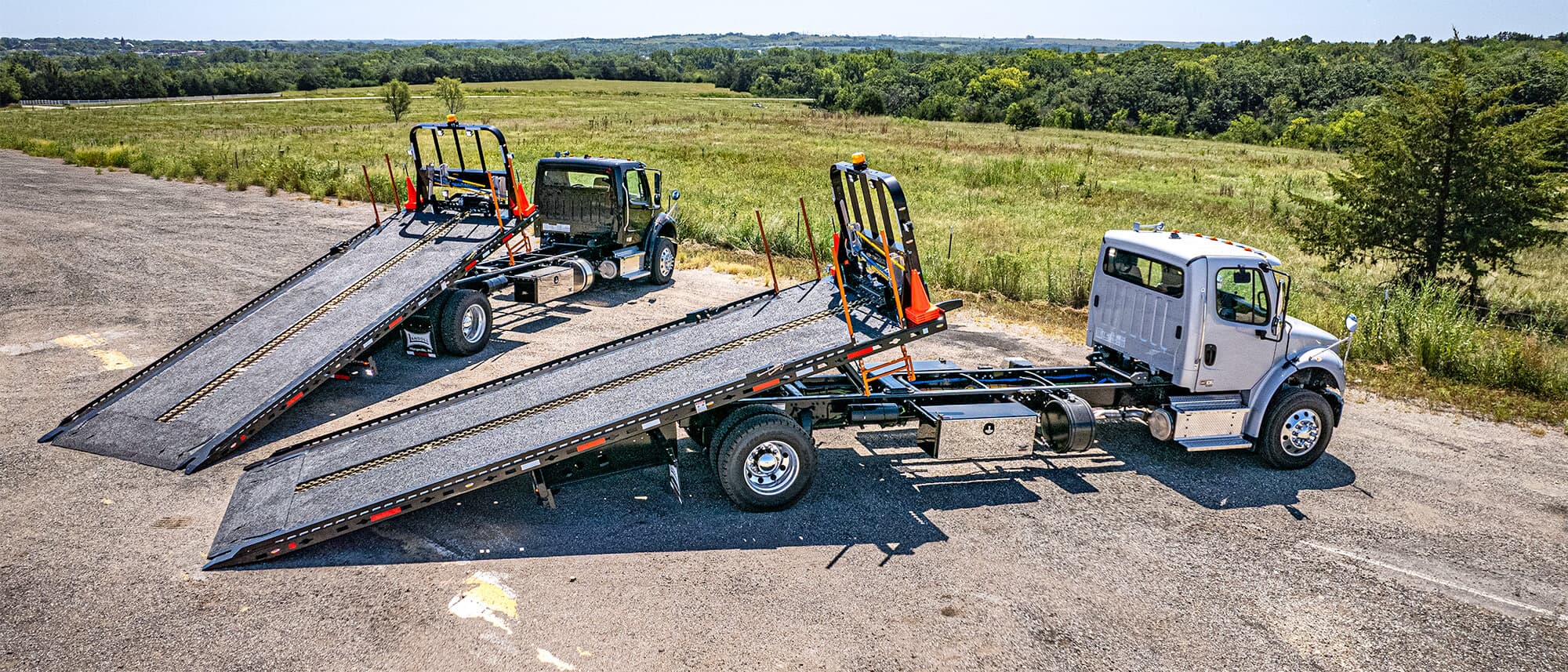

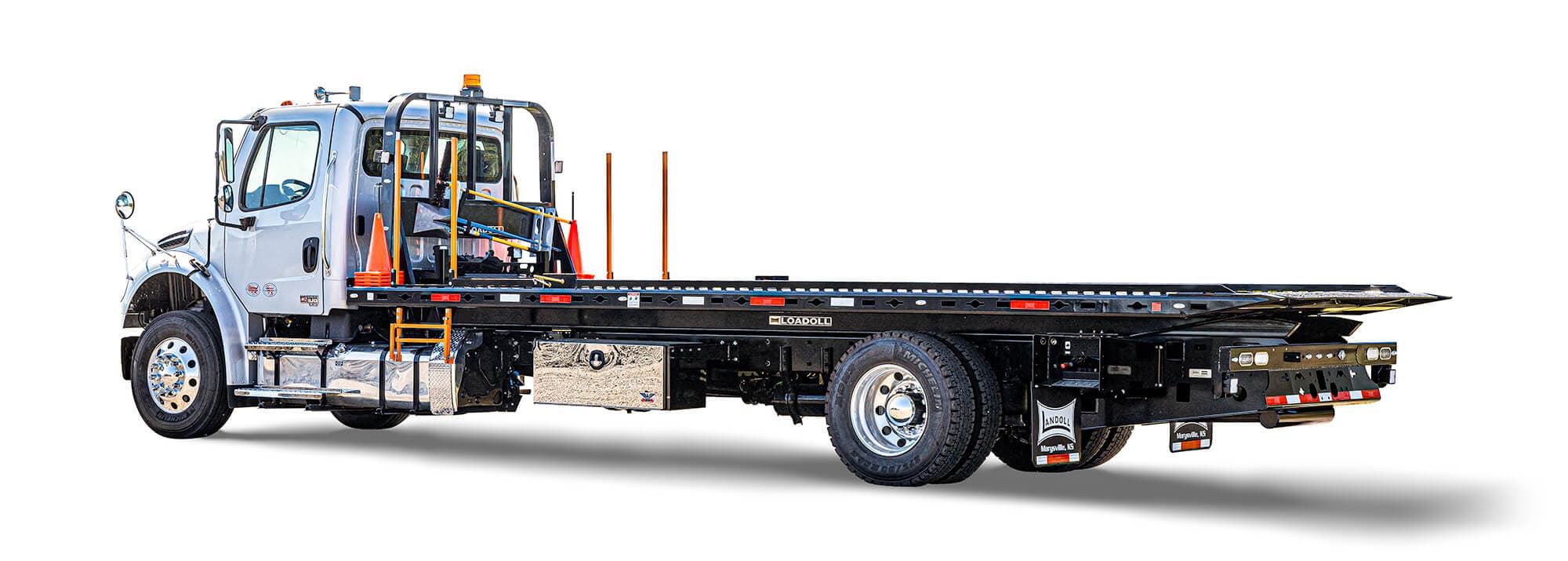

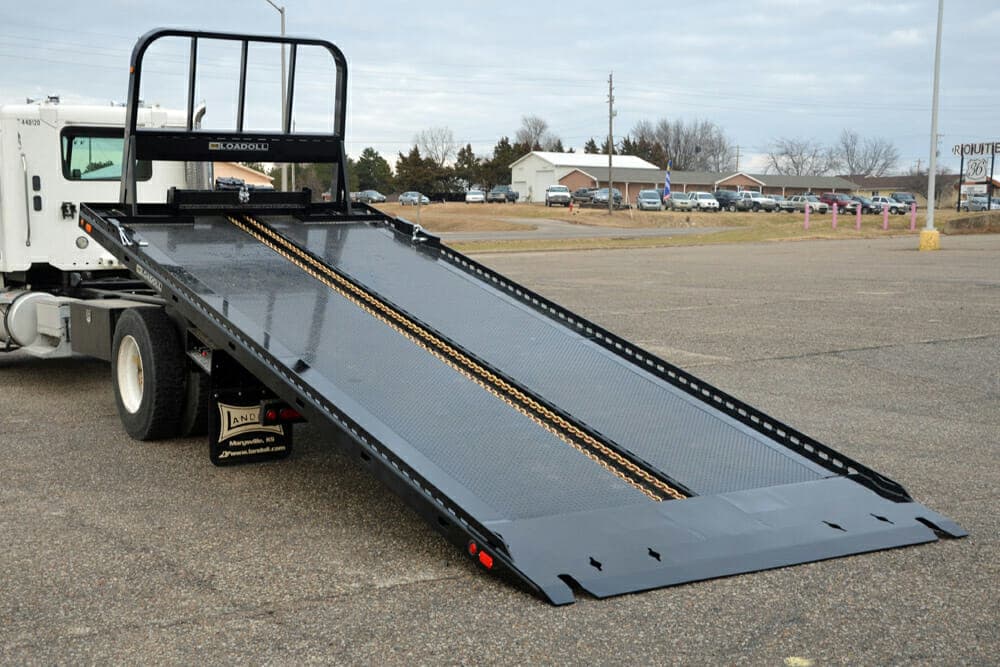

Landoll manufactures rollback carriers to fit a variety of needs including transporting containers and transporting farm equipment, tractors, and forklifts. A 20,000 lbs. capacity rollback is available for your container transporting needs. With the addition of an optional Chain Drive System, you have the ability to power load and unload storage containers. The 12,000 lbs. gearbox and 1/2″ chain is the perfect combination for all types of containers. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. 800-428-5655 moc.llodnal@selasreliart

Full Specifications

Hydraulics

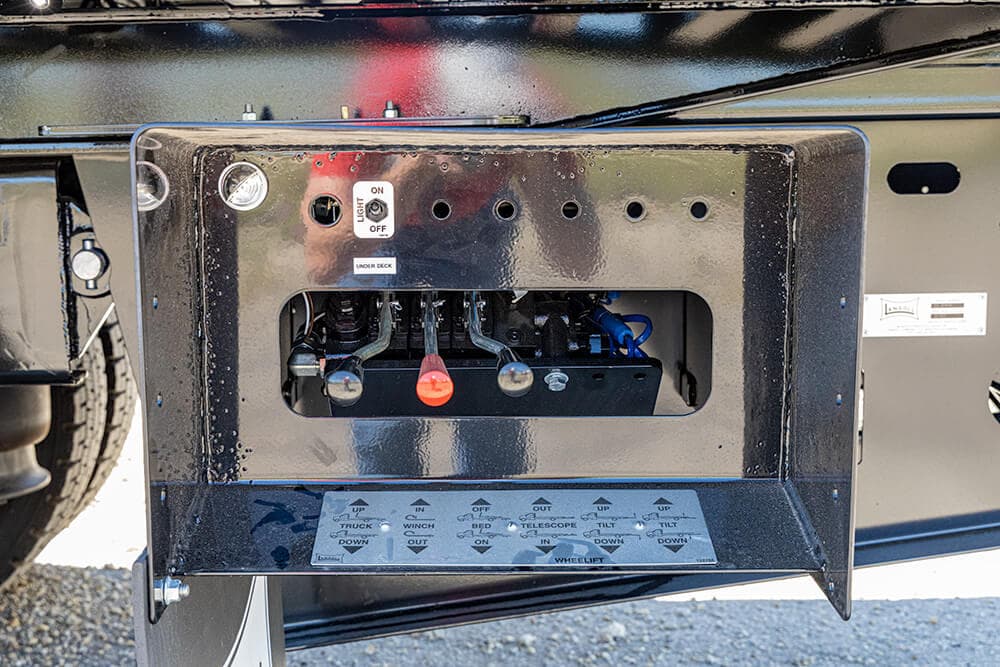

Dual Hydraulic ControlsBoth sides of Bed, Lighted

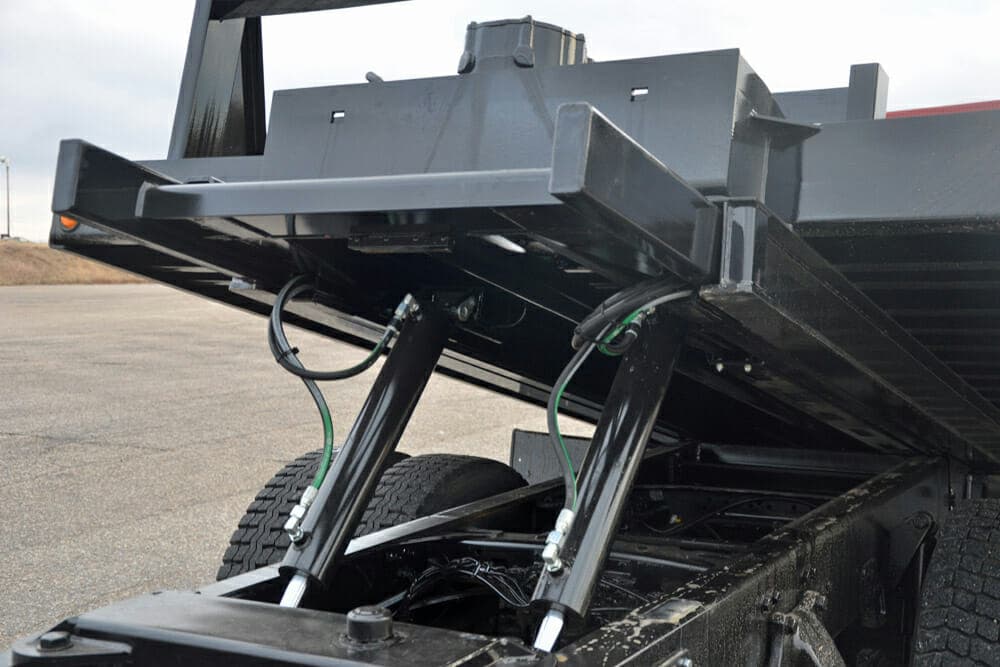

Dual Lift CylindersSingle Cylinder Bed Slide

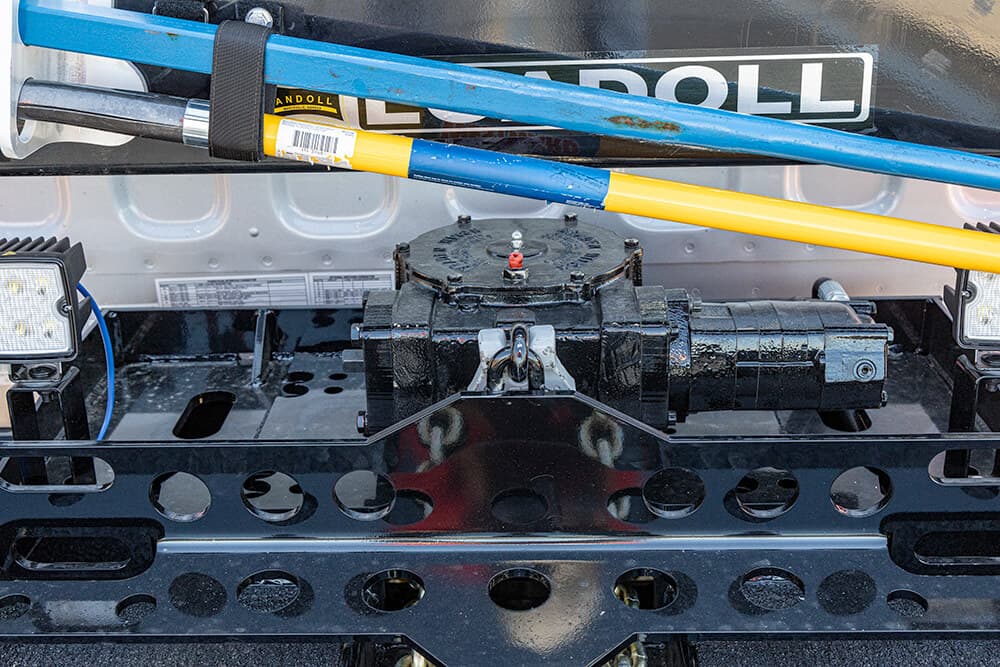

Winch12,000 lbs. Planetary with Spring Tension, Control at side of Bed, 1/2″ x 85′ Cable with 1/2″ Grab Hook

Winch Area StorageArea beside Winch is flat; No open Storage

Hydraulic StabilizerIndependent Dual Cylinder Dock Stabilizer (Hydraulic Adjust) (4,000 lbs. vertical, 15,000 towing capacity; no hitch Standard)

Hydraulic Valve Body3 Spool Rexroth, 2500 PSI / 14-17 GPM, Frame Mounted Reservoir 25 gal.

Capacity

Capacity*20,000 lbs. Distributed on Full Length of Bed

Dimensions

Deck Rating14,000 lbs. in 16′

Loaded Deck Height10-7/8″ above Truck Frame

Width102″

DeckingFlat Deck – 1/8” Steel Tread Plate (Smooth Side Up) Over Steel Tubes

Frame

Main Sub-FrameTube Type – Full length w full length slide pads – dual lift cylinders – Positive Lock Down

CL 20 – 23′ Steel10 Ton

CL 20 – 25′ Steel10 Ton

General

Bed Main LongitudinalFabricated “H” Beam 80,000 Yield Flanges, 80,000 Yield Webs

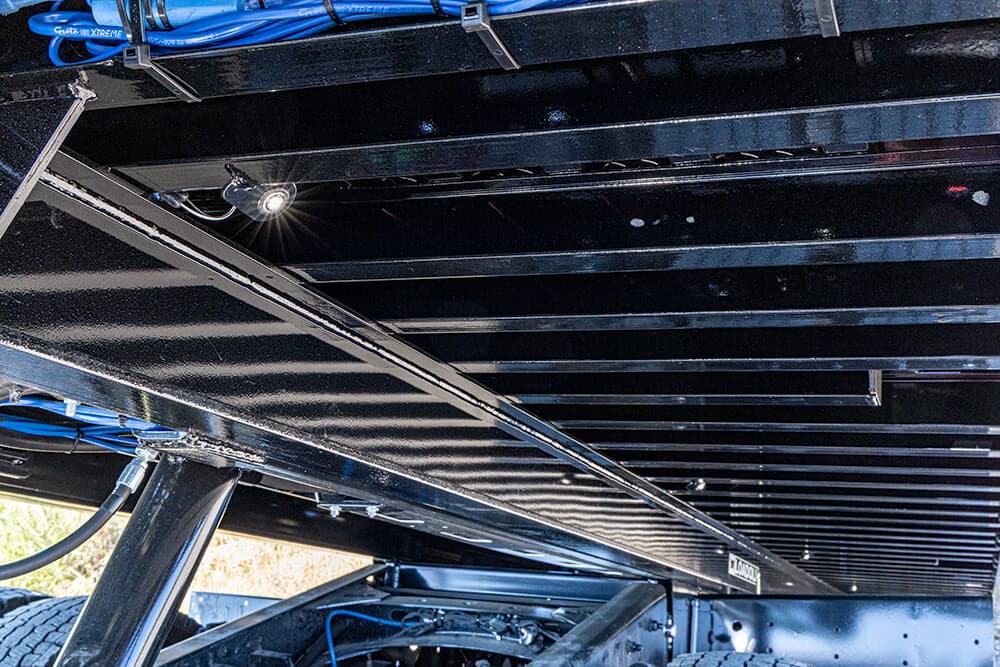

Crossmembers3″ JR. I-Beam on 8″ centers

Bed Outer RailFormed 5/16″ Steel Channel with Built-In Skid Plate for Containers

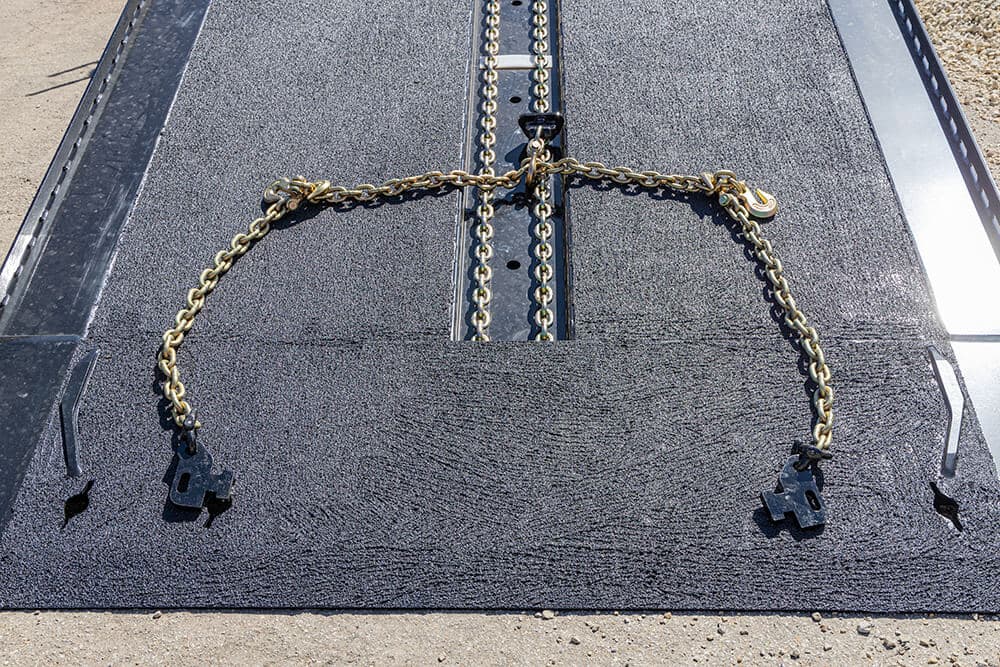

Approach PlateBeveled with 4 Double Chain Keyhole Tiedowns (Front/rear), Container Shoe slot each side

BulkheadBed Mounted

Tie DownsGotchas on side of Outer Rail 24″ centers, 4 Double Keyhole Gotchas on Approach Plate

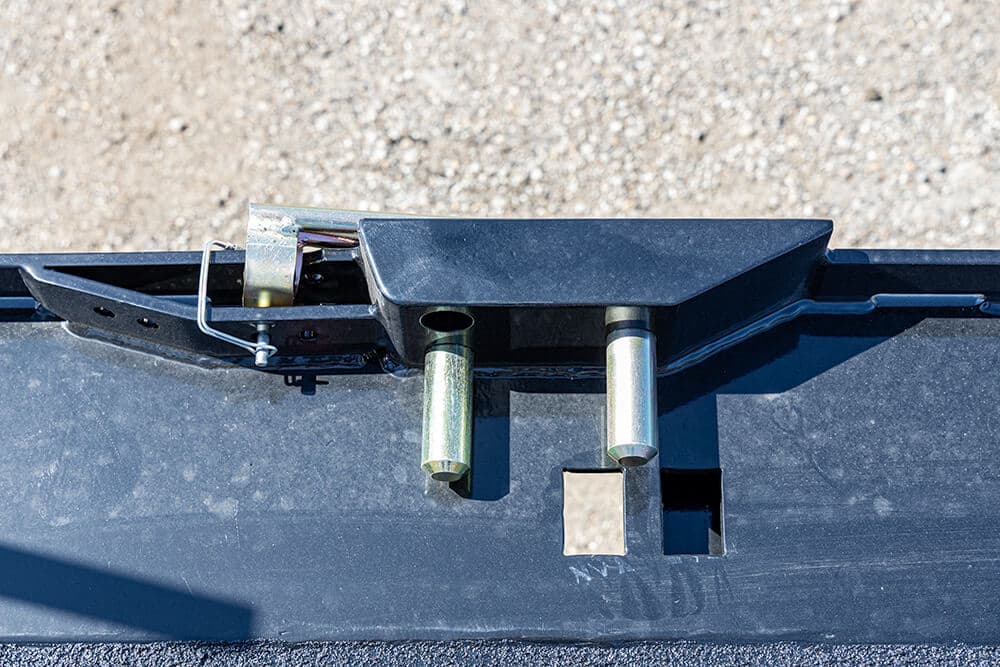

Container GuidesFront Container Side Lock Pins with 3/8” x 2-1/2” Toe Board

Powder Coat ColorWhite, Black, Yellow, Blue, Red, Green, Metallic Gray, Sapphire Blue

DecalsHigh-Visibility Reflective Package

Storage RackBulkhead mounted. For Accessory Package.

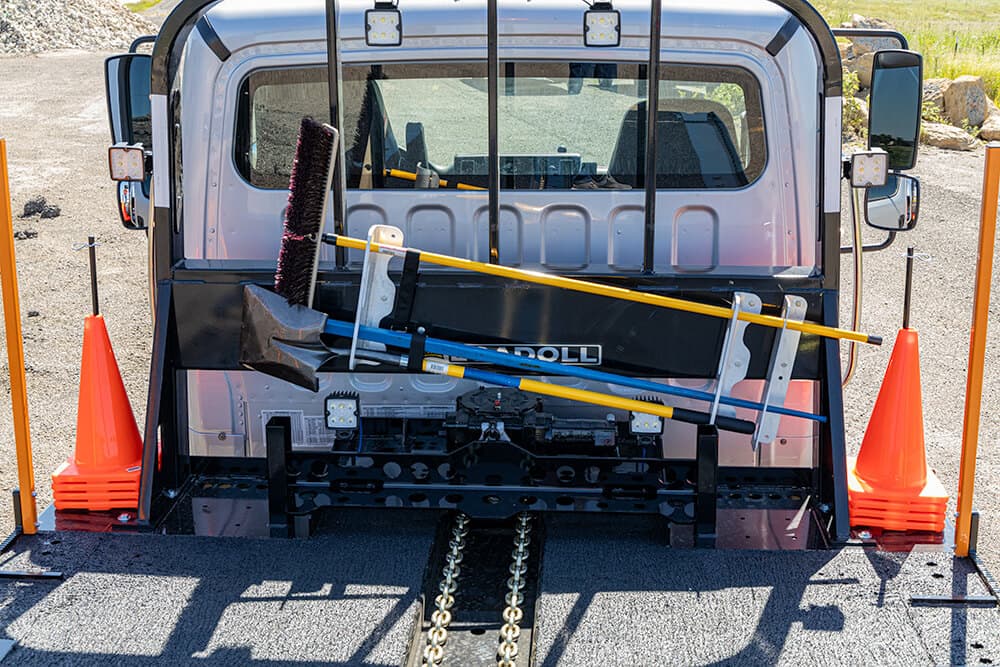

Accessory PackageBoom, Shovel, Pry Bar

Accessory Safety Package(8) Traffic Cones with (2) Storage Racks mounted each side of Winch

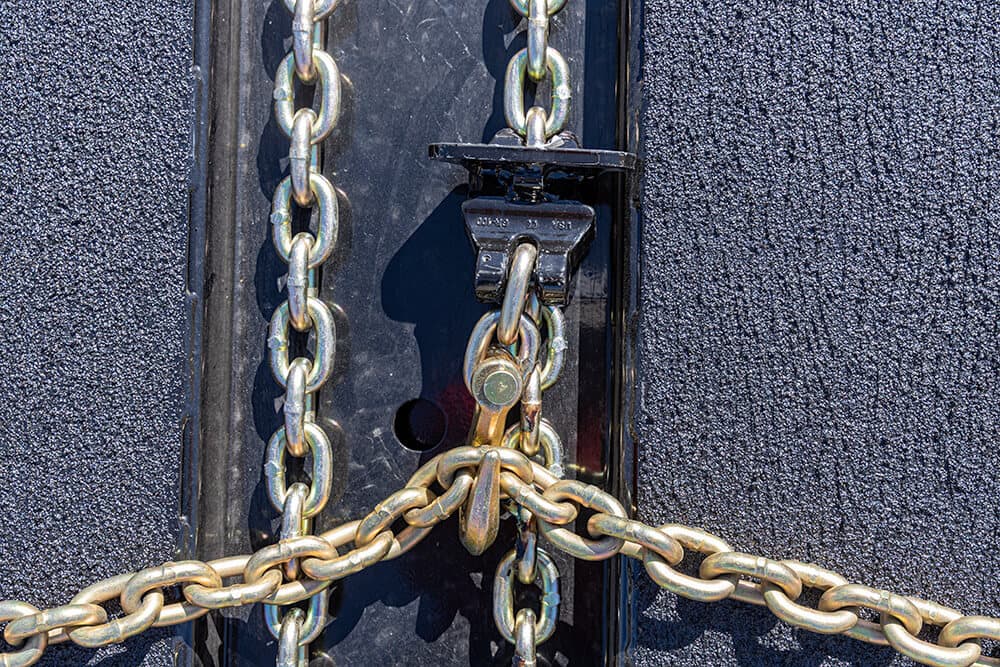

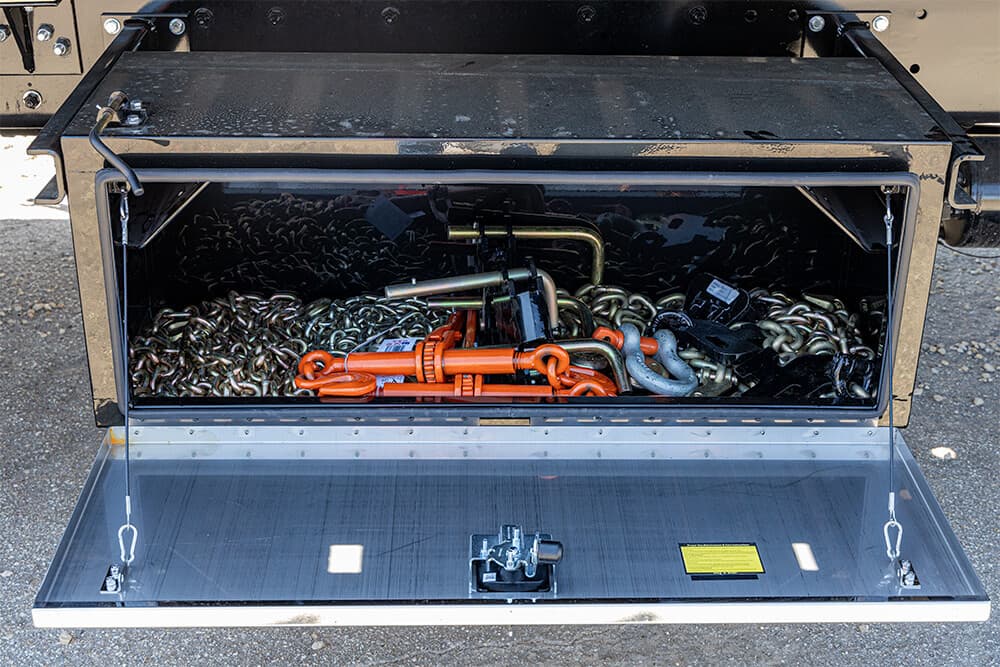

Container Tie Down Package(1) 16′ 3/8″ Chain, (1) 4′ 3/8″ Chain (G70) with Hooks Both Ends, (2) 3/8″ Ratchet Binders

Stabilizer LegManual Adjust

Stabilizer Leg in lieu of StandardHydraulic Adjust and Extend

Hot Dip Galvanized SubFrame only

ModelCapacity*

Electrical

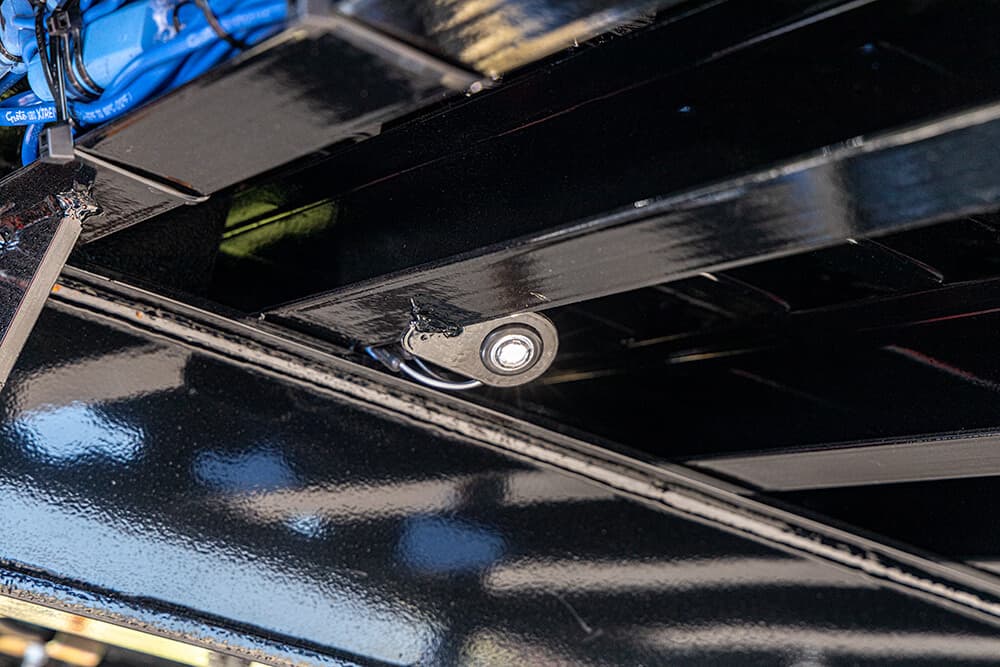

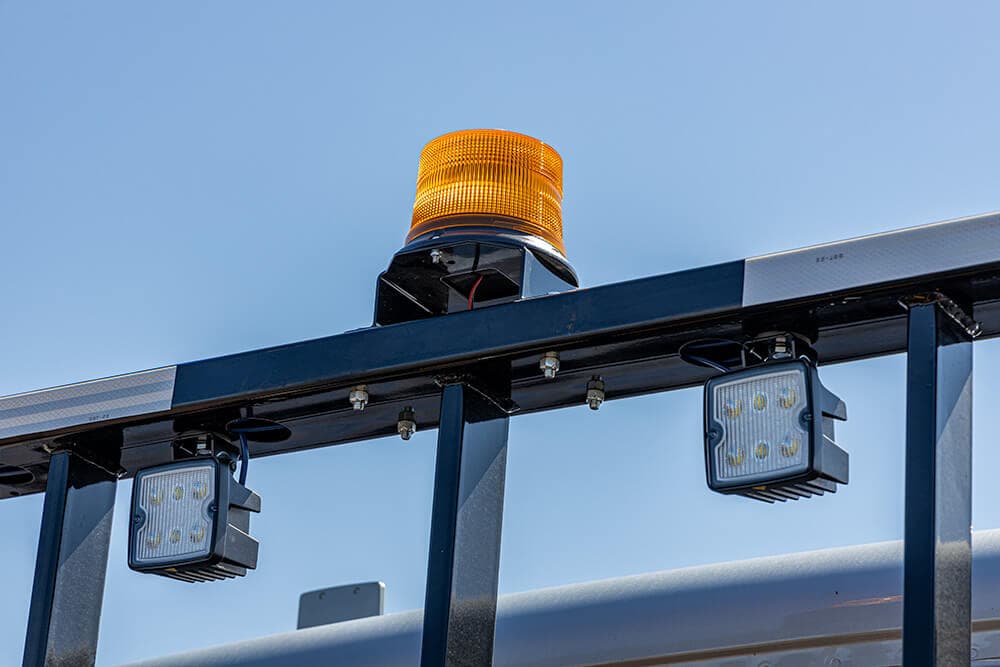

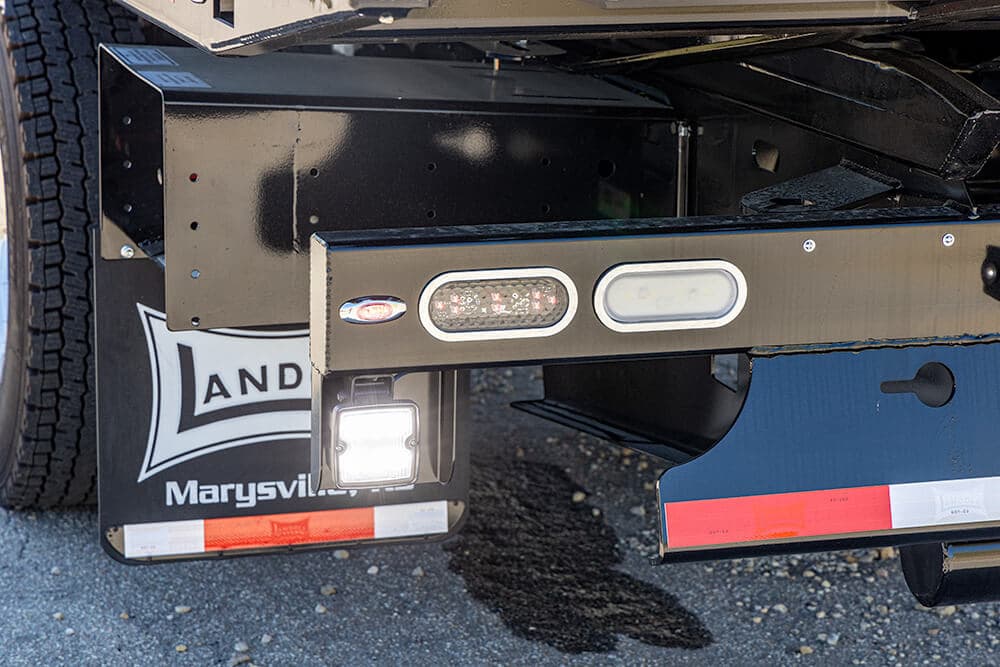

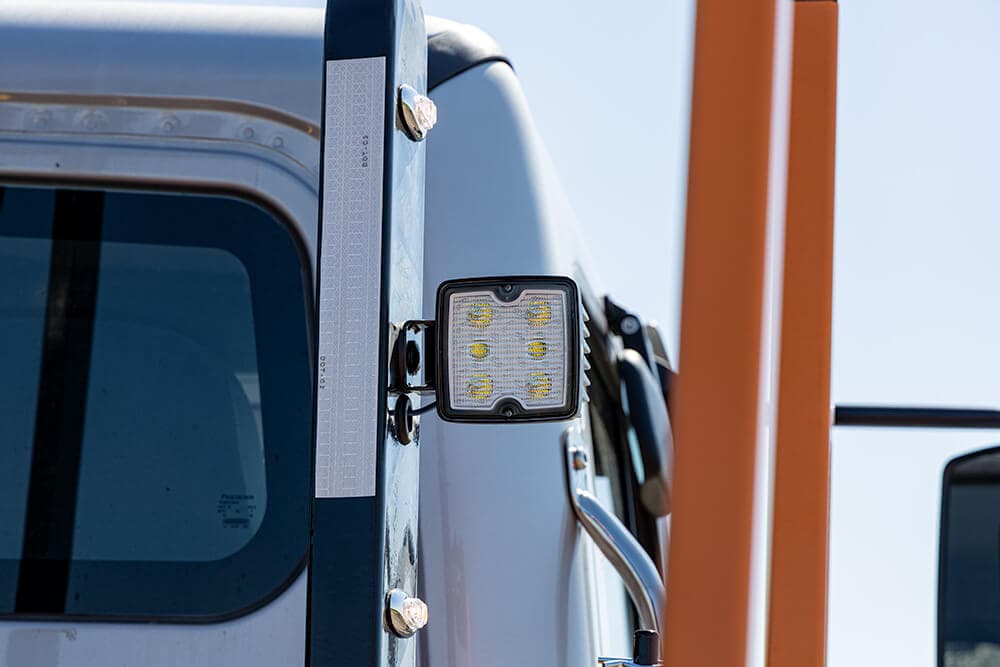

LightsIndustry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty)

Wiring HarnessIndustry Best Grote Xtreme Harnessing (7-year warranty)

Spare Light Package3 amber, 2 red, 1 back up, 1 stop/tail turn

Finish

FinishSteel Grit Shot Blast to Bright Metal

Paint over GalvanizedSides (Outside bed rails only)

Controls

Wireless Remote ControlSix function
